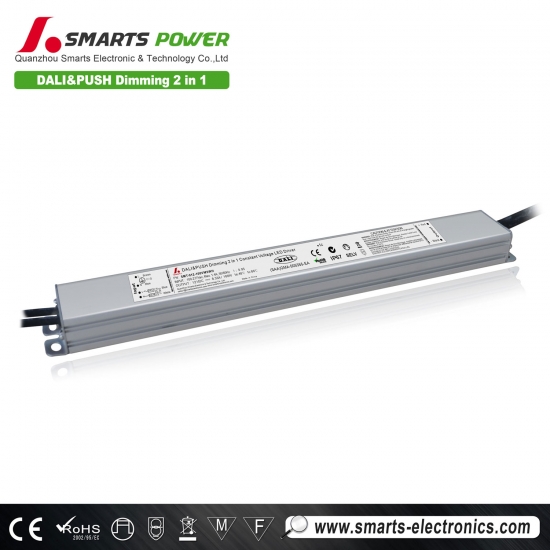

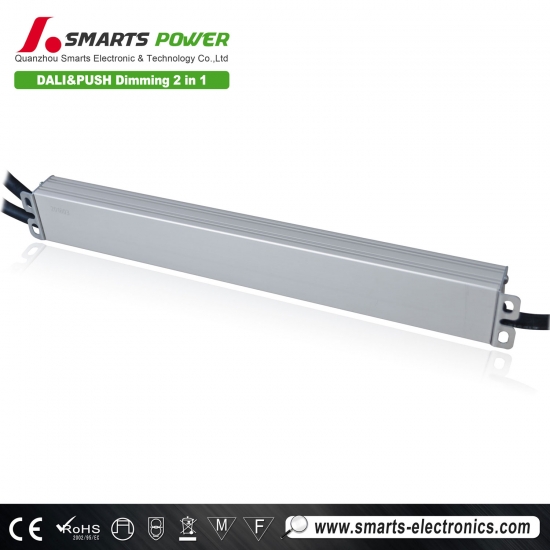

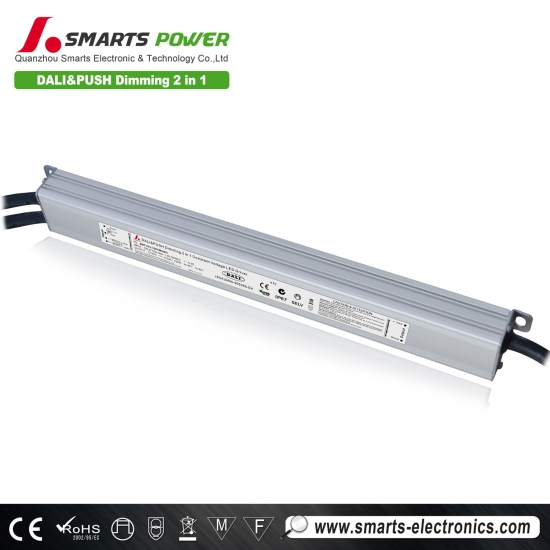

slim type dali dimmable 100 watt 12 volt transformer for LED strip
The 100 watt led transformer is a 12 Volt LED driver and generates close to PF>0.9 for LED MR16 bulbs are rated as the best 12V dimmable led bulbs for professional lighting or residential home use.
Specification
model |
SMT-012-100VMSWH |
SMT-024-096VMSWH |
|
Output |
DC Voltage |
12VDC |
24VDC |
Voltage Tolerance |
±0.5V |
±0.5V |
|
Rated current |
8.33Amp |
4.0Amp |
|
Rated power |
100W |
96W |
|
Voltage Regulation |
±0.5% |
||
Load Regulation |
±2% ±1% |
||
Input |
Voltage Range |
100-277VAC |
|
Frequency Range |
47~63HZ |
||
Power Factor(Typ.)@ full load |
0.98@120VAC |
0.98@120VAC |
|
Efficiency(Typ.)@ full load(Typ.) |
>88% |
>88% |
|
AC Current(Max.) |
1.2A@100VAC |
||
THD(Typ. ) @ full load |
10%@120VAC |
10%@120VAC |
|
Inrush Current(Typ.) |
4.1A (twidth=220us) @120VAC ; 35.2A (twidth=164us) @230VAC ; 12.8A (twidth=960us) @277VAC ; |
||
Leakage current |
<0.5mA |
||
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition removed |
|
Over Load |
≤120% Hiccup mode ,recovers automatically after fault condition is removed or shut down o/p voltage, re-power on to recover after fault condition removed |
||
Protection Class |
I |
||
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling
|
||
Environment |
Working TEMP. |
-40~+60℃ (see below derating curve) |
|
Working Humidity |
20~95%RH,non-condensing |
||
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||
Vibration |
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 (EU) and UL8750 (US) |
|
Withstand voltage |
I/P-O/P:3.75KVAC (EU) and I/P-O/P:1.88KVAC (US) |
||
Isolation resistance |
I/P-O/P:100M Ohms/500VDC/25℃/70%RH |
||
EMC EMISSION |
Compliance to EN55015, EN61000-3-2 (≥60%load) (EU) and FCC Part 15 (US) |
||
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry |
||
Others |
Net Weight |
0.53Kg |
|
Size |
330*32*23mm(L*W*H) |
||
packing |
360*270*175mm/30PCS/CTN G.W.:16.9KG/CTN |
||
Notes |
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |

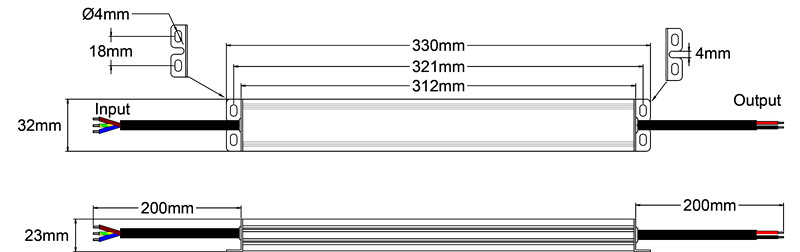

Mechanical Specification
Input Rubber cable H05RN-F 3*1.0mm², the green/yellow cable connect with (FG) ,Brown with AC (L),Blue with AC(N)
Output rubber cable H05RN-F 2*1.0mm², Red is output ( V+) Positive, Black is output (V-) negative. Connected to LED Lights
Dimming operation
Compatible LED kitchen lightingType
The 12 volt transformer is widely used for the kitchen lighting. Good working kitchen light is indispensable in the kitchen. This usually means the work area where you prepare meals.
Related Products
The 12v transformer for led strip is providing instant and responsive lighting, our led light strips transformer are widely suitable for your bedside, cabinet, wardrobe, closet dining room, upstairs, kitchen and living rooms.

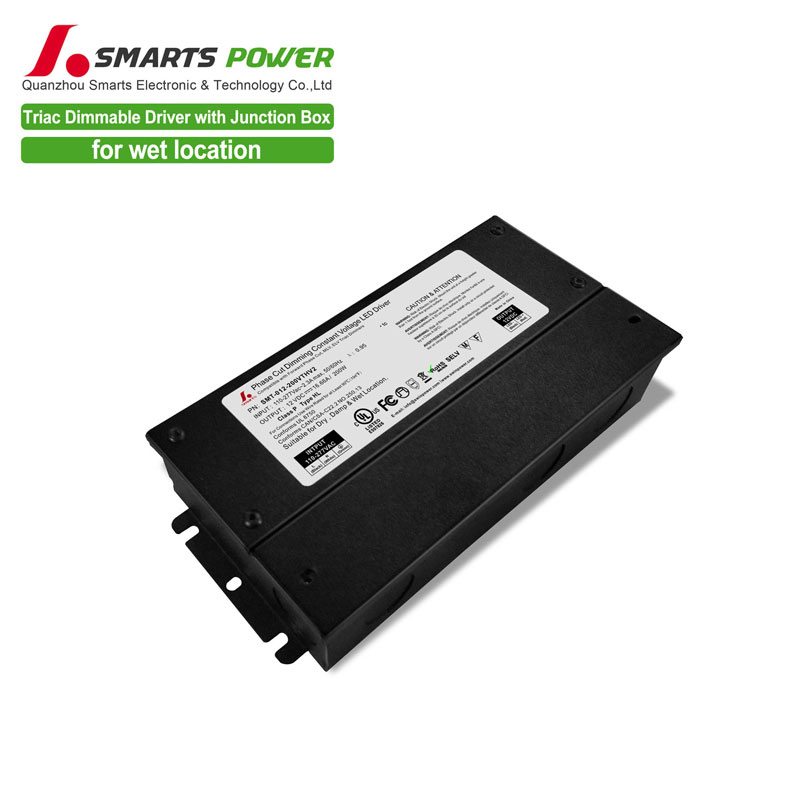

Mode:SMT-012-200VTHV2 |
