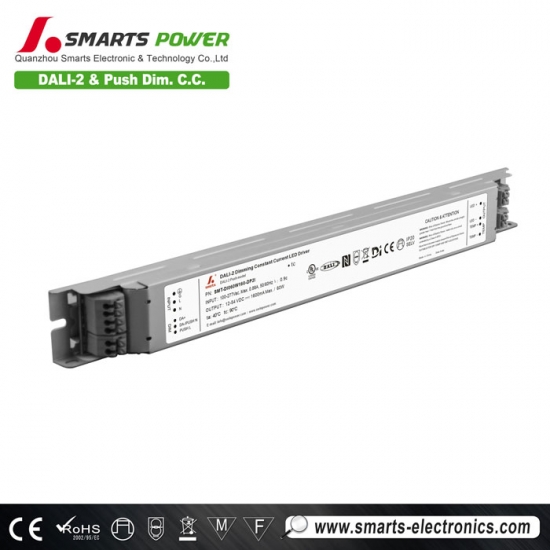

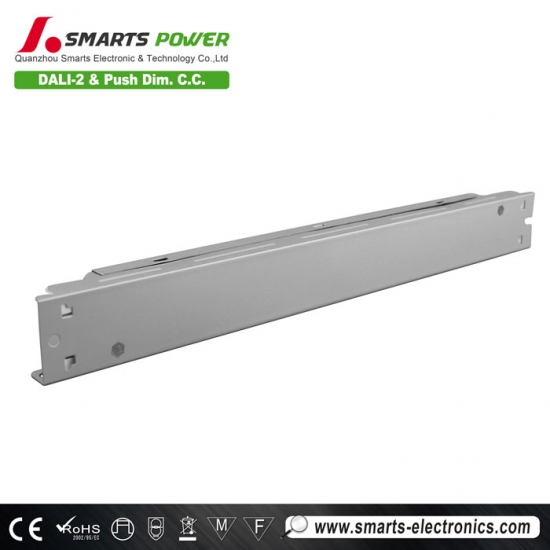

slim size DALI-2 & PUSH intelligent dimmable 60w constant current led driver 160MA-1600MA
100-277VAC universal input voltage range 60W DALI-2 & PUSH dimmable LED driver Ultra-thin size design, waterproof grade IP20, suitable for indoor smart LED lighting project installation. Dimming range is 0.1-100% ultra-deep dimming. With 7-year warranty
Specification
| Model | SMT-DI060W160-DP2I | |
| Certificate | UL / FCC / CE / RoHS / Reach / DALI / NFC | |
| Output | Rated current | 160mA-1600mA (multiple current for choice freely by ProNFC) |
| DC Voltage | 12V-54V | |
| No-load voltage | 60Vmax | |
| Voltage Tolerance | Output current ± 10mA for ≤ 300mA, ± 20mA for ≥ 300mA, and ± 30mA for ≥ 1000mA | |
| Rated power | 60Wmax | |
| Line Regulation | <0.5% | |
| Load Regulation | <0.5% | |
| Input | Voltage Range | 100-277VAC |
| Frequency Range | 47 - 63Hz | |
| Power Factor (Typ.) | PF≥0.94 | |
| No load power (Max) | <1.5W | |
| Standby power (Max) | <0.5W | |
| THD(Typ.) @ full load | ≤15% | |
| Efficiency @ full load | ≥88%@120VAC 60Hz ≥89%@230VAC 50HZ ≥89%@277VAC 60HZ | |
| AC Current (Max.) | 0.75A | |
| Inrush Current (Typ.) | 28.7A, 204us@50%Ipeak@120V 55.2A, 98us@50%Ipeak@230V 66.0A, 220us@50%Ipeak@2770V | |
| Leakage current | <0.5mA | |
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed |
| Over voltage | Hiccup or constant power mode, reboots automatically after fault condition is removed | |
| Over temperature |
Ambient temp.Over 55 ± 5℃, output current will be reduced to 50%; Ambient temp.Over 45 ± 5℃, recovers automatically. Ambient temp.Over 75 ± 5℃, output current will be reduced to 0%; Ambient temp.Over 45 ± 5℃, recovers automatically. |
|
| Environment | Working TEMP | -40~+60℃ (see below derating curve) |
| Working Humidity | 20 -90%RH non-condensing | |
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH | |
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |
| Vibration | 10~500Hz, 2G 12min./1 cycle, period for 72min. each along X,Y,Z axes | |
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13(EU) & UL8750 (US) |
| Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU) I/P-O/P:1.8KVAC I/P-FG:1.8KVAC O/P-FG:1.8KVAC (US) |
|
| Strobe test standard | IEEE 1789 Flicker free | |
| lightning surge | DM:2KV CM:4KV | |
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | |
| EMC Emission | EN55015 EN61000-3-2,3(EU) & FCC Part15 Subpart B; ANSI C63.4:2014(US) | |
| Others | Net Weight | 0.3KG |
| Dimension | 314*30*21.7mm (L*W*H) | |
| Packing | ****pcs /CTN | |
| Notes | 1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature. | |
| 2. To extend the driver's using life, please reduce the loading at lower input voltage . | ||
 |
 |
 |
 |
Mechanical Specification
1.Input with Gray terminals 6P: Live Wire AC (L), Neutral Wire AC(N), Ground wire(G).
2.Output LED SEC with Red/Black terminals 4P: output Positive (LED+), output negative (LED-). Connected to LED Lamps.
3.Dimming Gray terminals 6P: (DA+), (DA-/PUSH/N) and (PUSH/L).
4.Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
5.This product is also suitable for temperature control. It is recommended to use NTC for external temperature sensors, and the resistance value when triggering protection is between 1 Ω -20K Ω.
Warm tips:
1.Suggested wire diameter: Input: 0.2mm2-1.5mm2/AWG24-16.
Dimming operation
