If you are planning to install your LED lights to a triac / forward phase / reverse phase dimmer, where be installed on the input side of the led driver, you will need Smarts Electronics’s phase cut dimmable electronic led driver, they are matching well with magnetic low voltage dimmers (MLV), Electronic Low Voltage (ELV) Dimmers, leading edge and trailing edge triac dimmers.

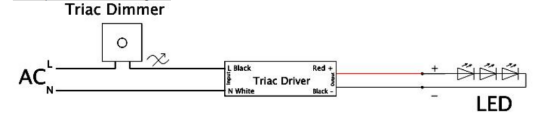

Simple Connection Diagram are:
AC Power + triac Dimmer + triac Dimmable Driver - LEDs
Here are some features to guide you know more them,
Ø Input voltage range 100-277VAC
Ø 30W - 300W output power
Ø 12V DC and 24V DC Outputs
Ø UL file#: E507826, Class P, Type HL, class 2.
Ø Required to be hard wired to AC power or use a separate electrical plug
Ø PWM output, does not change the color index
Ø 7 years warranty
Ø Short circuit/over voltage/over heat protection
Ø Compatible with dry, damp, wet environment

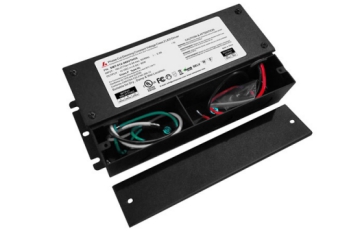

Phase cut dimmable electronic led driver apply to
Shopping malls, commercial accent lighting, Hotel lighting
Bar and Lounge lighting etc...Also there are available with non-dimmable electronic led drivers, 0-10v dimming electronic led driver on options. Know more info, click our company websites:
