LED Dimmable Light Triac Dimmer Switch for LED Lights

Smarts Electronics issued dimmer switch for led lights recently. They are compatible with kinds of dimming power to control the brightness of LED light. Easy Installation: Without extra wiring as traditional switch.

1.Technical Patermeters for led dimmer switch:

Input Voltage: 220V/240V

Frequency: 50/60Hz

Load: 12W-250W

Working temp.: -25-40℃

Size: 86*86*38mm(L*W*H)

Weight: 170G

2. Feature for light dimmer:

1) Only connect L(LIVE).

2) Dimming operation: Touch pannel with one touch botton.

3)Phase-cut model: trailing edge dimming.

4)Memory function: remember the last brightness when turn on dimmer again.

5) Over current protection

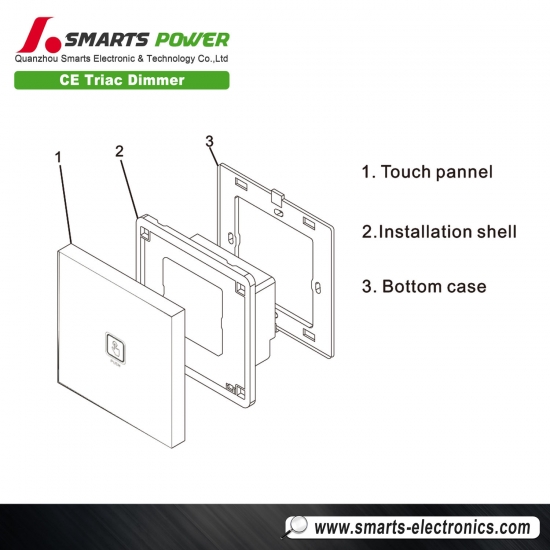

3. Part of device for dimmer switch for led lights

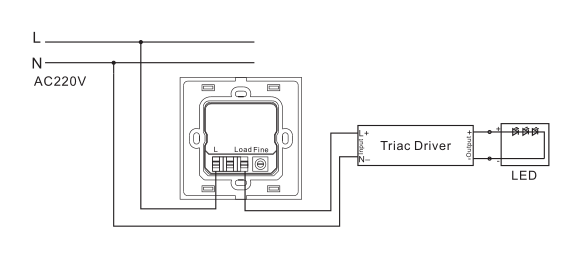

4. Wiring diagram for triac dimmer:

Fine:Set the minimum brightness using the set-screw(Fine)

5.Operation for dimmable light switch:

When dimmer is off, short press to turn on it and reach the pervious brightness level.

When dimmer is on, short press to turn off.

When dimmer is on, long press to incress the brightness level.

When dimmer is off, long press to turn on and incress the brightness level.

6.Working principle for dimmable light switch:

1. Dimming pinciple: Phase-cut sine wave.

2. Control the driver to soft start to achieve continuous, soft dimming.

3. Over-current protection, pretend the driver and dimmer from the damage caused by huge current.

4. A fine to set the minimum brightness to prevent the flicker caused by the influence when it is starting.

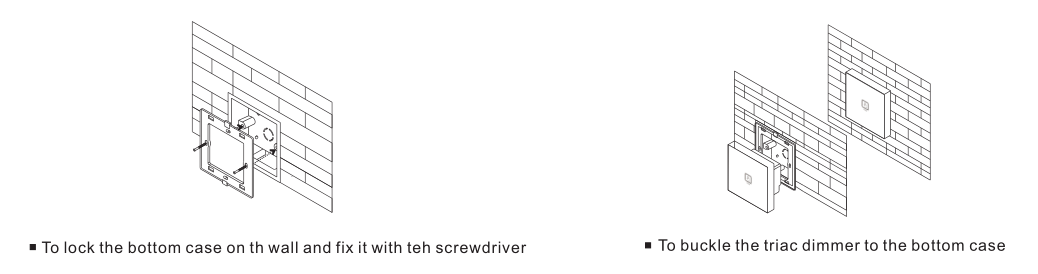

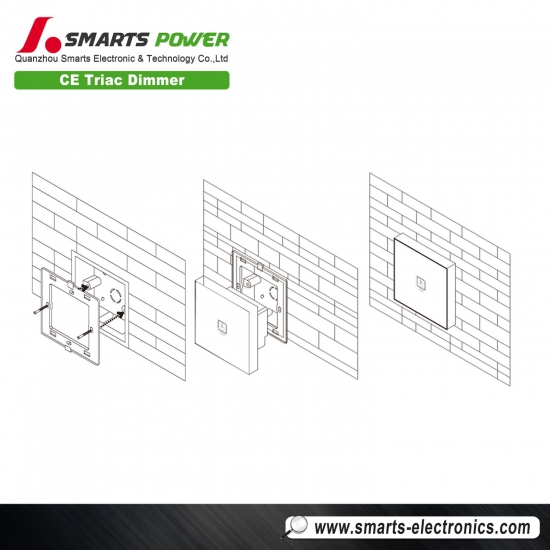

7. Instruction mannal for triac dimmer:
