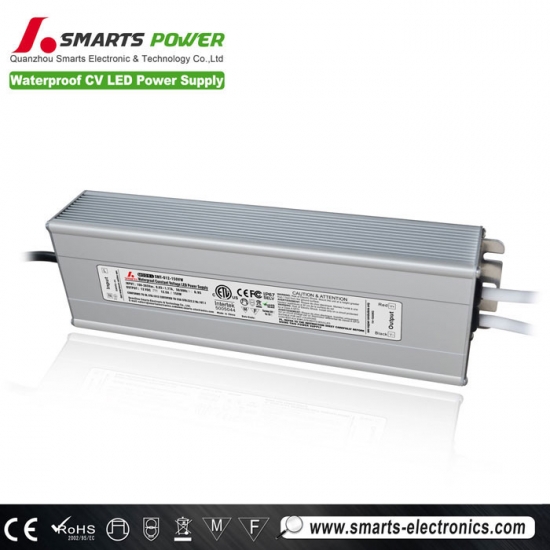

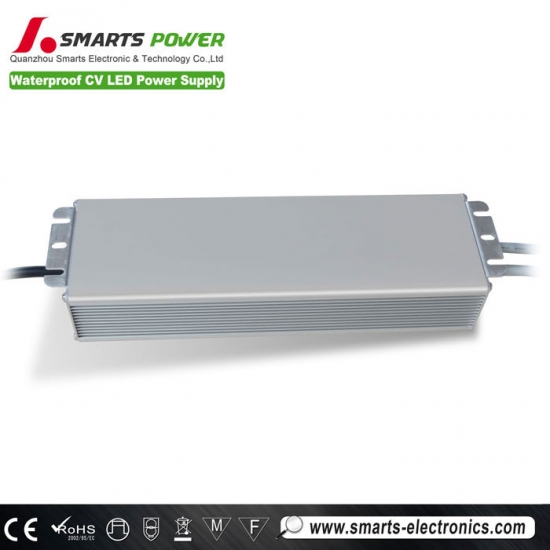

Outdoor 12v 150w ip67 constant voltage led driver
Outdoor 12v 150w ip67 constant voltage led driver provides the steady voltage and high efficiency you need to get the most from your LED lights. The constant voltage led driver is energy efficient, eco-friendly, and safe.
| SPECIFICAION | |||||
| MODEL | SMT-012-150VW | SMT-024-150VW | |||
| OUTPUT | DC VOLTAGE | 12V | 24V | ||
| RATED CURRENT | 12.5A | 6.25A | |||
| CURRENT RANGE | 0~12.5A | 0~6.25A | |||
| RATED POWER | 150W | 150W | |||
| RIPPLE&NOISE(max) | 150mV | 150mV | |||
| VOLTAGE TOLERANCE | ±0.5V | ±0.5V | |||
| SETUP RISE TIME | 80ms/110VAC, 220VAC | ||||
| HOLD UP TIME(Typ.) | 60ms/110VAC, 220VAC | ||||
| INPUT | VOLTAGE RANGE | 100-265VAC | |||
| FREQUENCY RANGE | 50~60Hz | ||||
| POWER FACTOR(Typ.) | 0.95 | ||||
| EFFICIENCY(Typ.) | ﹥87% | ﹥87% | ﹥87% | ﹥87% | |
| AC CURRENT(Typ.) | 1.85A/110VAC, 220VAC | ||||
| INRUSH CURRENT (Typ.) | COLD START 50A/110VAC, 220VAC | ||||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | |||
| Overload | overload protected@145-160% above peak rating | ||||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||||
| ENVIRONMENT | WORKING TEMP. | -30~+55℃ (Refer to output load derating curve) | |||
| WORKING HUMIDITY | 20~99% RH non-condensing(Waterproof) | ||||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||||
| SAFETY&EMC | SAFETY STANDARDS | CE ETL Mark(EMC,LVD),IP67 | |||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC IP-GND:1.5KVAC | ||||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | ||||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | |||||
| NOTE | 1.All parameters NOT specially mentoned are measured at 110VAC,220VAC input,rated load and 25℃ of ambient temperature. | ||||
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor. |
|||||
| 3.Tolerance:includes set up tolerance,line regulation and load regulation. | |||||

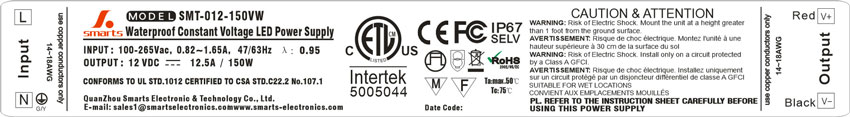

| Label |
 |
||||
 |
 |
 |
 |
 |
|
Features

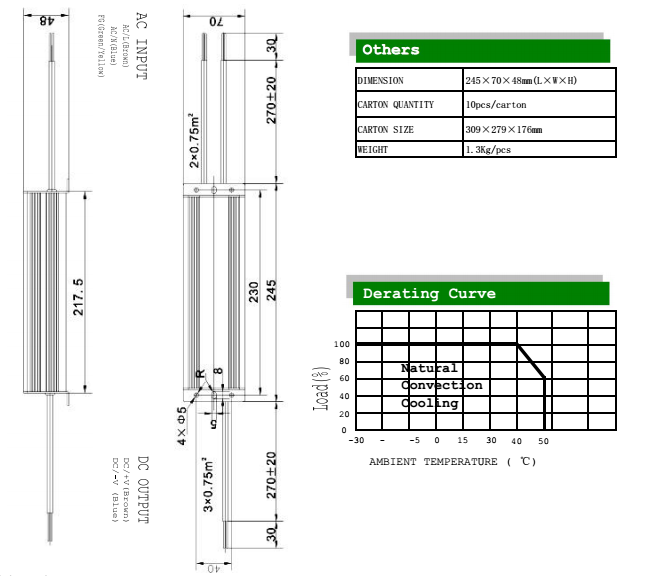

Mechanical Specification
Applications
Home lighting
Commercial lighting, such as Down light, Underground lamp, Panel light, Spotlight, etc.
Hotel, Restaurant lighting
Other public lighting
Important Parameter
Working Temperature: -30~55℃
Work environment: Indoor or outdoor installations
Waterproof Rating: IP67
Shipping Method
2. By Air: In some area, the shipping cost by air is more favorable than by Express; 5-7 days for delivery;
3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not urgent goods can choose this way.
4. Your shipping agent or forwarder
Payment Terms
2. Bulk order: Bank TT, ( 30% deposit and balance 70% settled before shipment or full charge )
