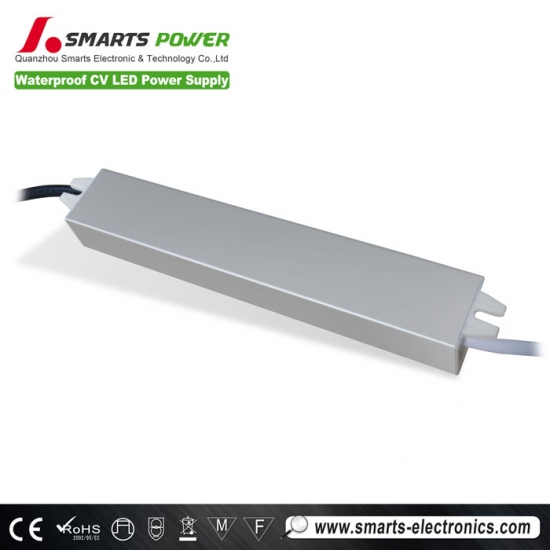

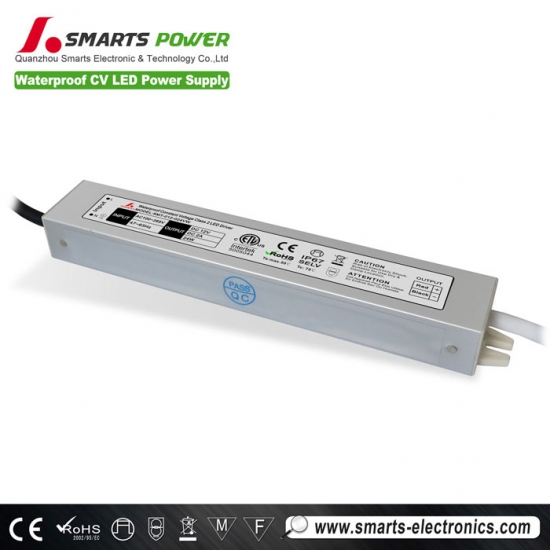

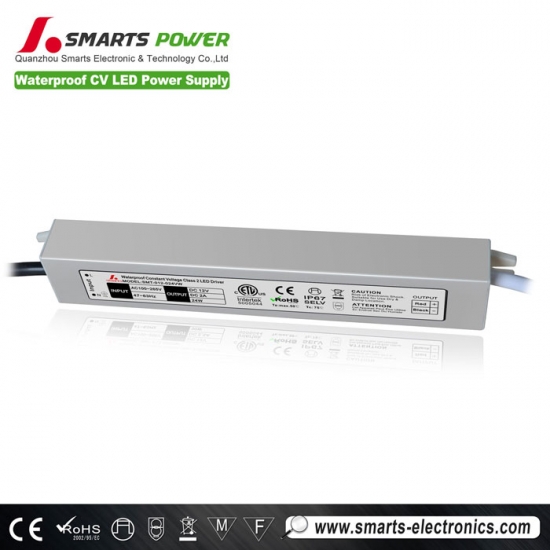

12v 24w constant voltage led driver
12v 24w constant voltage led driver is 12V led power supply unit 24w led ac-dc power supply
Features of 12v led driver
IP67 design for indoor or outdoor installations
Protections:Short circuit/Overload/Over temperature
Cooling by free air convection
100% full load burn-in test
Suitable for LED lighting
Products through,CE,RoHS Certification
24 Months warranty
| SPECIFICAION of 24w led driver | |||||
| MODEL | SMT-012-026VW | SMT-024-026VW | SMT-036-026VW | ||
| OUTPUT | DC VOLTAGE | 12V | 24V | 36V | |
| RATED CURRENT | 2.0Amp | 1.0Amp | 0.66Amp | ||
| CURRENT RANGE | |||||
| RATED POWER | 24W | 24W | 24W | ||
| RIPPLE&NOISE(max) | 150mV | 150mV | 150mV | ||
| CURRENT TOLERANCE | ±0.5V | ±0.5V | ±0.5V | ||
| SETUP RISE TIME | 80ms/110,220VAC | 81ms/110,220VAC | 82ms/110,220VAC | ||
| HOLD UP TIME(Typ.) | 60ms/220VAC | 60ms/220VAC | 60ms/220VAC | ||
| INPUT | VOLTAGE RANGE | 100~265VAC | |||
| FREQUENCY RANGE | 50~60Hz | ||||
| POWER FACTOR(Typ.) | |||||
| EFFICIENCY(Typ.) | >83% | >83% | >83% | ||
| AC CURRENT(Typ.) | 3.5A/110,220VAC | 2.0A/110,220VAC | 1.5A/110,220VAC | ||
| INRUSH CURRENT (Typ.) | COLD START 50A/110~220VAC | ||||
| PROTECTION | Short circuit |
Protection type:recovers automatically after condition is removed |
|||
| Overload | overload protected@145-160% above peak rating | ||||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||||
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | |||
| WORKING HUMIDITY | 20~99% RH non-condensing(Waterproof) | ||||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||||
| SAFETY&EMC | SAFETY STANDARDS | ROHS/CE Mark(EMC,LVD),IP67 | |||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC IP-GND:1.5KVAC | ||||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | ||||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | |||||
| NOTE |
1.All parameters NOT specially mentoned are measured at 110V,220VAC input, rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation. |
||||

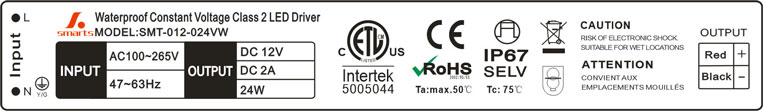

| Label |
 |
||||
 |
 |
 |
 |
Mechanical Specification of constant voltage led driver
- Cable Model of input : VDE H03VV-F 3G0.75mm2
- Cable Model of output: VDE H03VV-F 2*0.75mm2(brown,blue)
- controller cable:VDE H03VV-F 2*0.75mm2(red,black)
