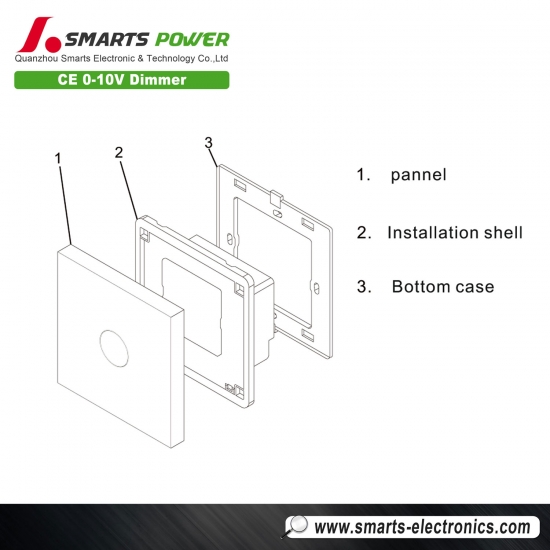

High Voltage LED Dimmer Switch 0-10V Output Signal Dimming Panel LED Controller
The product is a 0-10V dimmer, with Rotary dimming operation function, high voltage AC input, built-in Isolated power supply protection function.
Supply voltage AC100-265V
Product size: L86*W86*H51mm
Working temperature: -20℃-40℃
Output current: 50mA
Output wattage: 0.5w
Net weight :190g
Technical Parameters

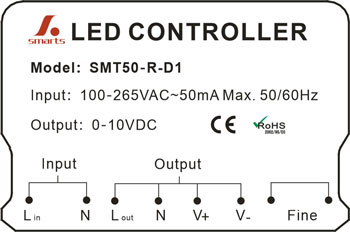

Label
Function Description
---This is 0-10V rotary dimmer,when you twisting the knob meanwhile it start to control 0-10V signal to achieve dimming performance.
---This led light dimmer switches provide 50mA,user can calculate led driver consumption to know how many led driver can be controlled(eg:100w led driver consumption is 0.15mA,50/0.15 which mean can control about 300pcs led driver by this dimmer.)
----This dimmer also can be a switch when you connect led driver L/N wires

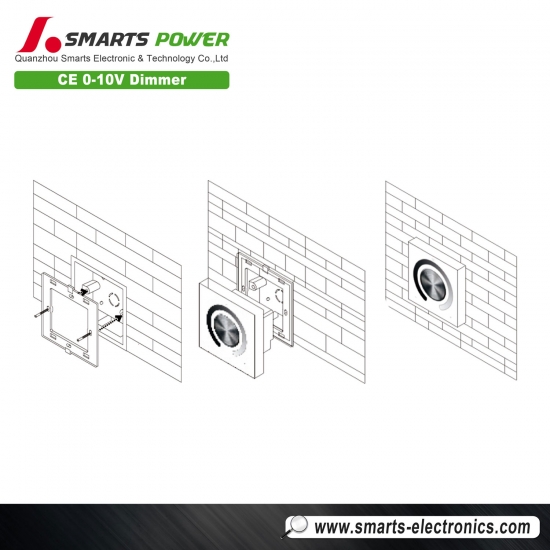

Wiring diagram
Operation
---To press dimmer knob achieve dimmer and led driver turn on/off.
---When dimmer turn on, twisting dimmer knob control 0-10V signal
---When dimmer turn on,twisting precision potentiometer can slightly adjust 0-10V signal voltage.
What’s the dimmer?
The purpose of a dimmer is to adjust the brightness of the led light. By reducing or increasing the RMS voltage to cause the average power of the light, then produced the different intensity light output. Although variable voltage devices can be used for a variety of purposes, dimmer mainly is intended to control lighting.
