DALI-2 & PUSH intelligent dimmable constant current dimmable led driver 12v-54v

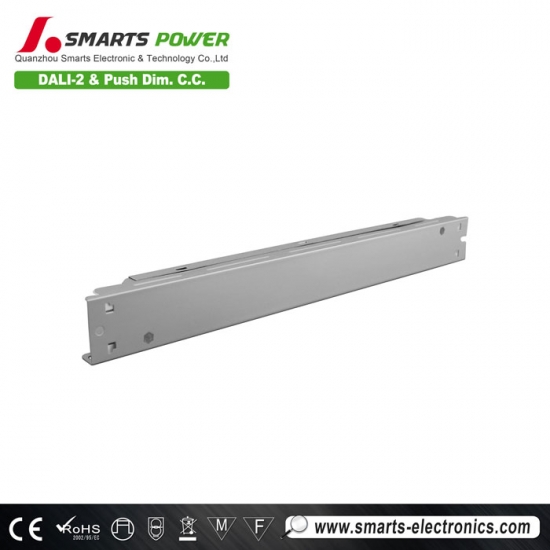

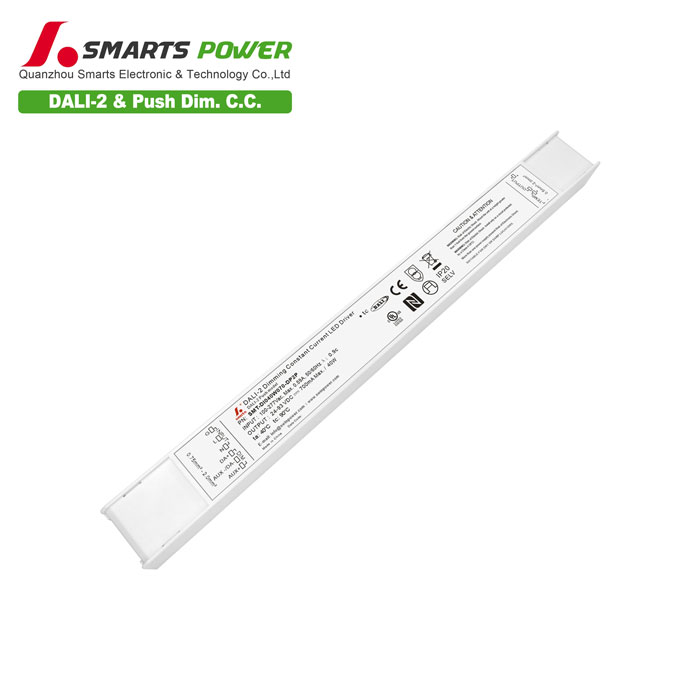

Ultra-thin size 70MA-700MA DALI-2 dimmable led driver 20W waterproof grade ip20. Unique push terminal wiring design. Easy and quick installation. Built-in NFC smart programming module, users can easily set the address output current through NFCApp. Improve installation work efficiency. With 7-year warranty.
Specification
| Model | SMT-DI020W070-DP2I | |
| Certificate | UL / FCC / CE / RoHS / Reach / DALI / NFC | |
| Output | Rated current | 70mA-700mA (multiple current for choice freely by ProNFC) |
| DC Voltage | 12V-54V | |
| Rated power | 20Wmax | |
| Voltage Tolerance | 0.85% | |
| No-load voltage | 33Vmax | |
| Output power | 60Wmax | |
| Line Regulation | <0.5% | |
| Load Regulation | <0.5% | |
| Input | Voltage Range | 100-277VAC |
| Frequency Range | 47 - 63Hz | |
| Power Factor @ full load | >0.91 | |
| THD(Typ.) @ full load | <15% | |
| Efficiency @ full load | >82%@120VAC 60Hz >82%@230VAC 50HZ >81%@277VAC 60HZ | |
| No load power (Max) | <0.8W | |
| Standby power (max.) | <0.5W | |
| AC Current (Max.) | <0.56A | |
| Inrush Current (Typ.) | 17.5A, 29.1us@50%Ipeak@120V 33.6A, 864ns@50%Ipeak@230V 40.4A, 26us@50%Ipeak@2770V | |
| Leakage current | <0.5mA | |
| Protection | Short Circuit | Hiccup mode, restarts automatically after fault condition is removed |
| Over load | Hiccup or Constant power mode, restarts automatically after fault condition is removed | |
| Over temperature |
Ambient temp.Over 55 ± 5℃, output current will be reduced to 50%; Ambient temp.Over 45 ± 5℃, recovers automatically after temp. drops. Ambient temp.Over 75 ± 5℃, output current will be reduced to 0%; Ambient temp.Over 45 ± 5℃, recovers automatically after temp. drops. |
|
| Environment | Working TEMP | -40~+60℃ (see below derating curve) |
| Working Humidity | 20 -90%RH non-condensing | |
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH | |
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |
| Vibration | 10~500Hz, 2G 12min./1 cycle, period for 72min. each along X,Y,Z axes | |
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13 (EU) & UL8750 (US) |
| Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU) I/P-O/P:1.8KVAC I/P-FG:1.8KVAC O/P-FG:1.8KVAC (US) |
|
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | |
| EMC Emission | EN55015 EN61000-3-2,3(EU) & FCC Part 15 ,Subpart B; ANSI C63.4:2014 (US) | |
| EMC Immunity | IEC/EN61000-4-2,3,4,5,6,8,11; EN/EN61547(EU) | |
| Power supply | Strobe test standard | IEEE 1789 Flicker free |
| lightning surge | DM:2KV CM:4KV | |
| Others | Net Weight | 0.3KG |
| Dimension | 220*30*20.3mm (L*W*H) | |
| Packing | ****pcs /CTN | |
 |
 |
 |
 |

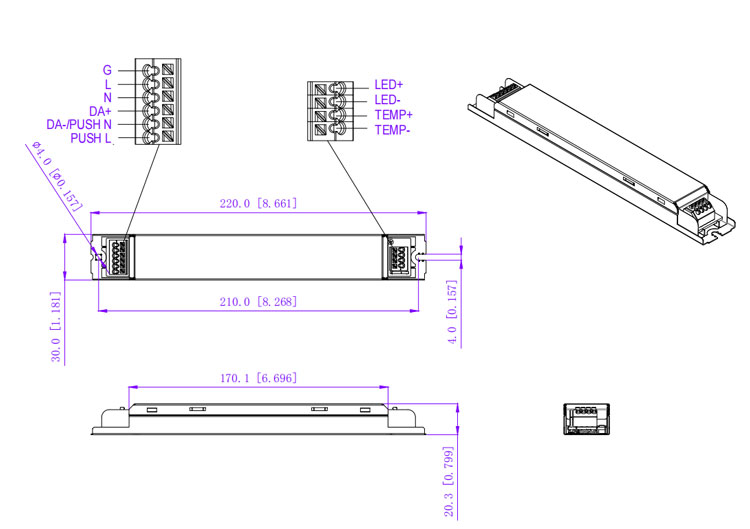

Mechanical Specification
1. Input with Gray terminals 6P: Live Wire AC (L), Neutral Wire AC(N) .
2. Output LED SEC with Red/Black terminals 4P: output Positive (LED+), output negative (LED-). Connected to LED Lamps.

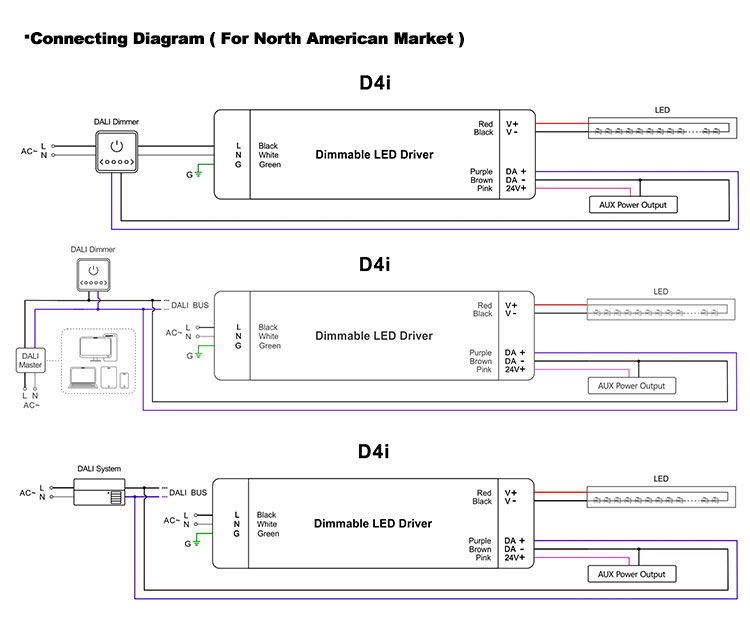

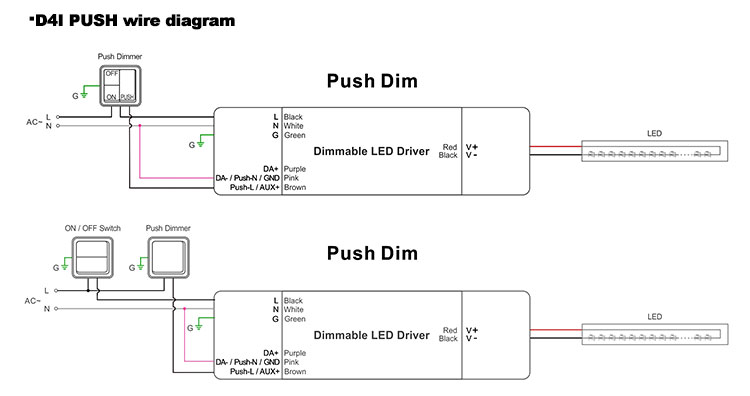

3. Dimming Gray terminals 6P: when DALI dimming, signal dimming DA+, DA-/PUSH N and PUSHS L connected to the BUS of the DALI Master.
4. Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
5. This product is also suitable for temperature control. It is recommended to use NTC for external temperature sensors, and the resistance value when triggering protection is between 1 Ω -20K Ω.
Warm tips:
1. Suggested wire diameter: Input 0.2mm2-1.5mm2/AWG24-16.
Dimming operation
Related Products

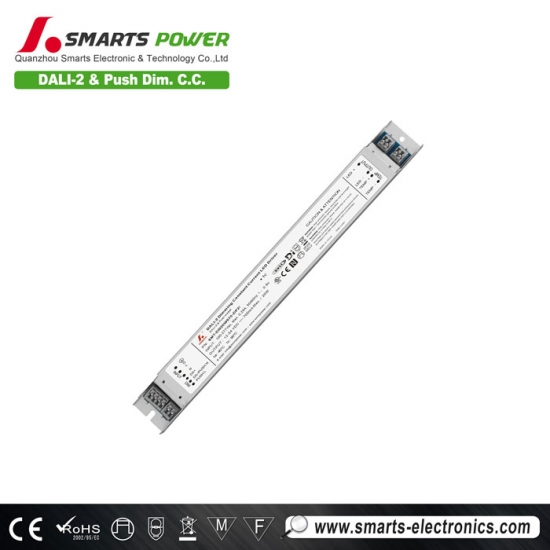

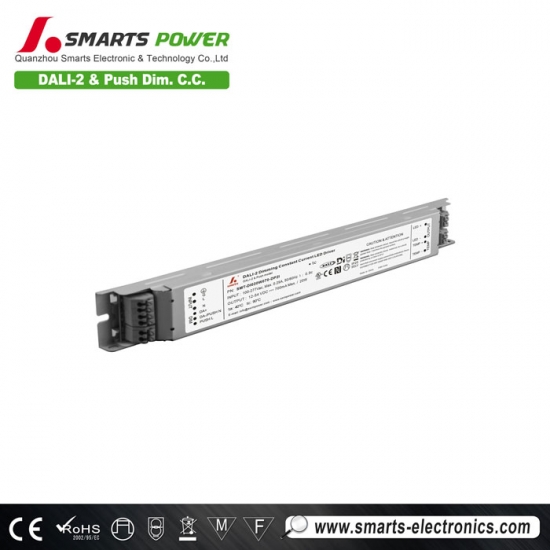

Plastic housing design with IP20 waterproof rating DALI-2 & PUSH dimmable LED driver with built-in active PFC function. Suitable for indoor smart LED lighting project installation and use, with 7-year warranty.
Mode：SMT-DI040W070-DP2P intput voltage：100-277vac
Size : 324.7*34.8*24.1MM |
