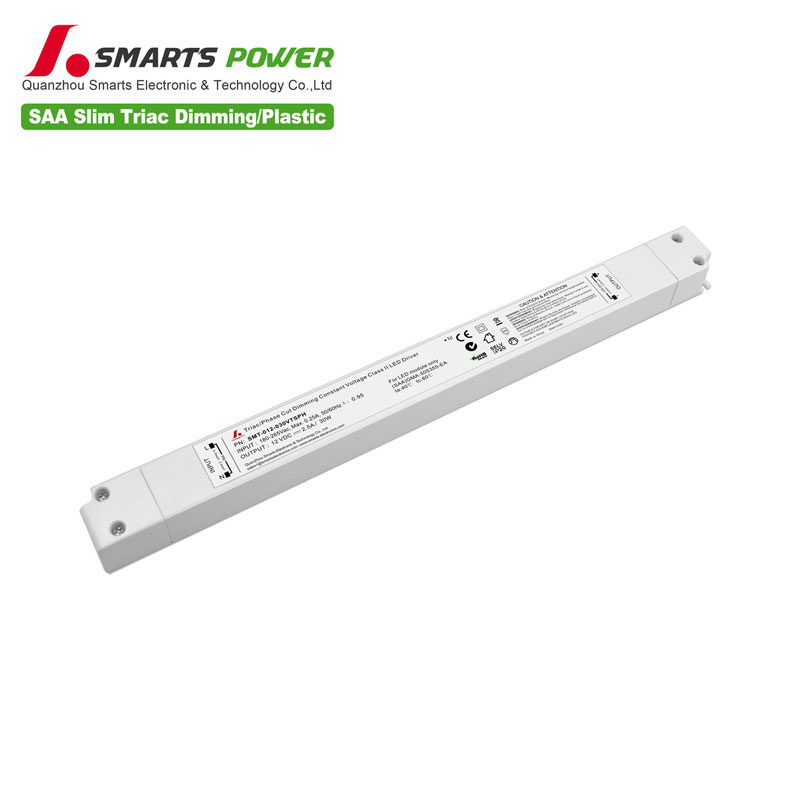

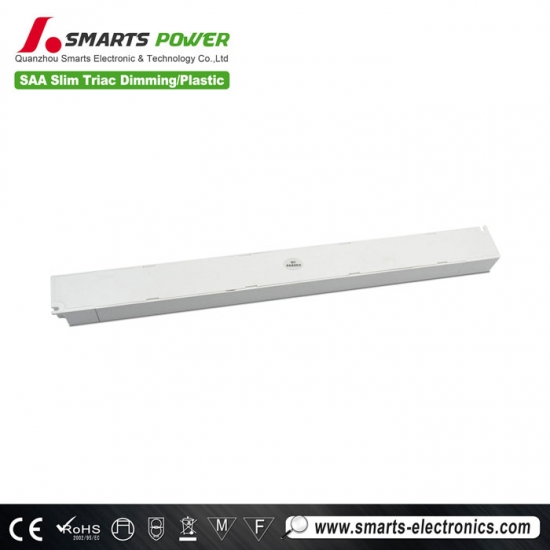

CE ROHS listed12DC 30W Triac dimmable slim shape LED transformer

model

SMT-012-030VTSPH

SMT-024-030VTSPH

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

2.5Amp

1.25Amp

Rated power

30W

30W

Voltage Regulation

±0.5%

Load Regulation

±2%

±1%

Input

Voltage Range

220-240VAC

Frequency Range

47～63HZ

Power Factor ( Typ.）

PF≥0.96/230VAC

Full Load Efficiency（Typ.）

>79%

>79%

AC Current（Typ.）

0.20A/200VAC

Inrush Current（Typ.）

34A,50%,104us@230VAC

Leakage current

<0.5mA

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Protection Class

II

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Environment

Working TEMP.

-40～+60℃

Working Humidity

20～90%RH,non-condensing

Storage TEM.,Humidity

-40～+80℃，10～95%RH

TEMP.coefficient

±0.03%/℃（0～50℃）

Vibration

10～500Hz，2G 10min./1 cycle，period for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-1  EN61347-2-13  EN62493

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG: 100MΩ/500VDC/25℃/70%RH

EMC EMISSION

EN55015    EN61000-3-2    EN61000-3-3

EMC IMMUNITY

EN61000-4-2,3,4,5,6,11      EN61547

Others

Weight

0.2Kg

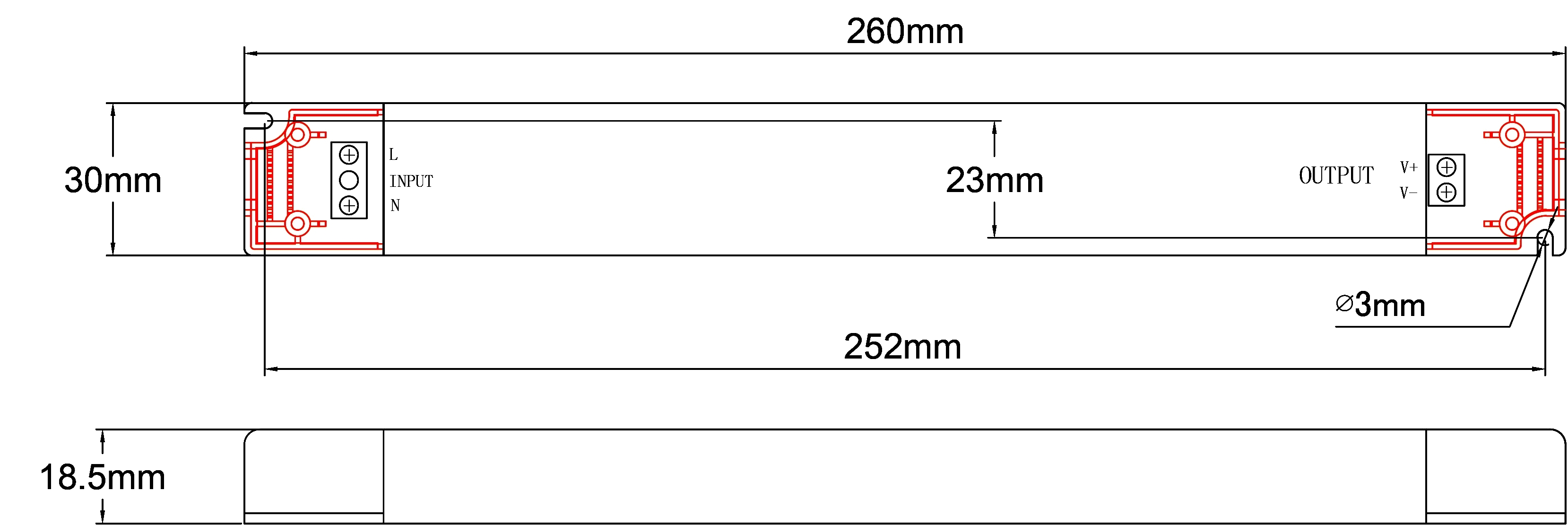

Size

260*30*18.5mm(L*W*H)

packing

50pcs /CTN SIZE: 330X275X130mm

Notes

1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
