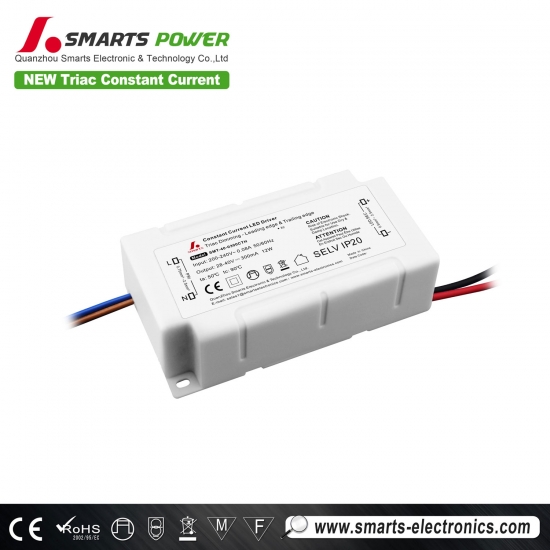

CE ROHS listed triac dimming constant current led driver 12w
The triac dimmable constant current led driver provides the required dim level for 400ma LED constant current lighting systems. Designed for ultimate flexibility, they allow users to easily add their own personal touch to illumination settings. They are suitable for LED lighting and moving sign applications.
Features
Output: constant current
Input range :180-265VAC
Built-in PFC function
Efficiency > 84% / PF>0.9
Protections:Short circuit/over Voltage
Fully isolated plastic case
Easy installation
Cooling by free air convection
Work with leading edge and trailing edge TRIAC dimmers
Strong compatibility, flicker-free dimming
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting
3 years warranty
Specification
|
Model |
SMT-030-0400CTH |
SMT-028-0450CTH |
SMT-040-0300CTH |
SMT-025-0700CT |
|
|
Output |
DC Current |
400mA |
450mA |
300mA |
700mA |
|
Current Accuracy |
±5% |
||||
|
Voltage Range |
18~30V |
16~28V |
28~40V |
10~25V |
|
|
Rated power |
12W |
12W |
12W |
17.5W |
|
|
Input |
Voltage Range |
180～265VAC |
|||
|
Frequency Range |
47～63HZ |
||||
|
Power Factor （Typ.） |
PF≧0.92/110V ; PF≧0.95/220V ; PF≧0.93/250V |
||||
|
Full Load Efficiency（Typ.） |
85% |
86% |
85% |
85% |
|
|
AC Current（Typ.） |
0.14A/110VAC 0.12 A/220VAC 0.01A/250VAC |
||||
|
Leakage current |
<0.27mA/110VAC; ﹤0.25mA/220VAC |
||||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|||
|
Over voltage |
≦270VAC |
||||
|
Environment |
Working TEMP. |
-40～+60℃ |
|||
|
Working Humidity |
20～90%RH,non-condensing |
||||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes |
||||
|
Safety&EMC |
Safety standards |
EN-60950-1, EN-61347-1-2 |
|||
|
Withstand voltage |
I/P-O/P:3.75KVAC |
||||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||||
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (≧50%load) |
||||
|
EMC IMMUNITY |
Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry level （surge4KV） |
||||
|
Others |
Weight |
0.16Kg/pcs |
|||
|
Size |
85*45*26mm （L*W*H） |
||||
|
packing |
324*298*176mm |
||||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||||
 |
 |
 |
 |

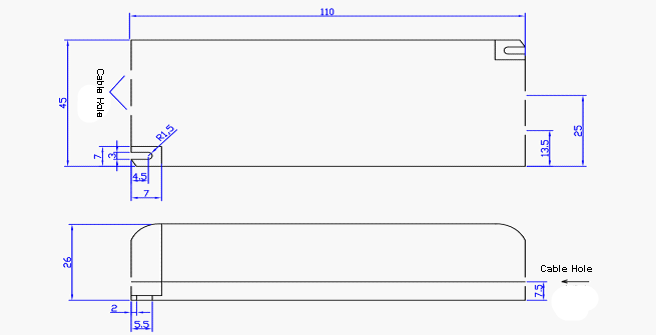

Product size

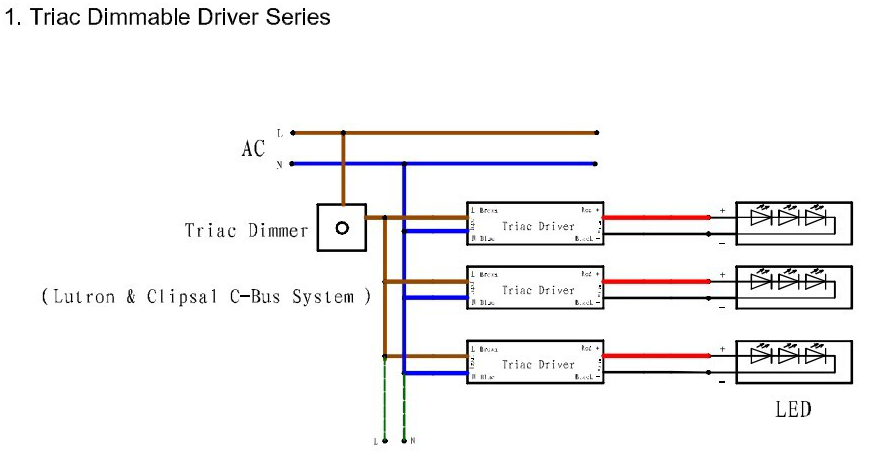

Connection diagram
