CE ROHS listed 240 volt led power supply 40w for led lighting
Our series of triac dimming constant current power supply needed for your LED lighting project is easy to calculate.These products are designed to be powered through compatible with Leading edge or tailing edge triac dimmers.
Feture:

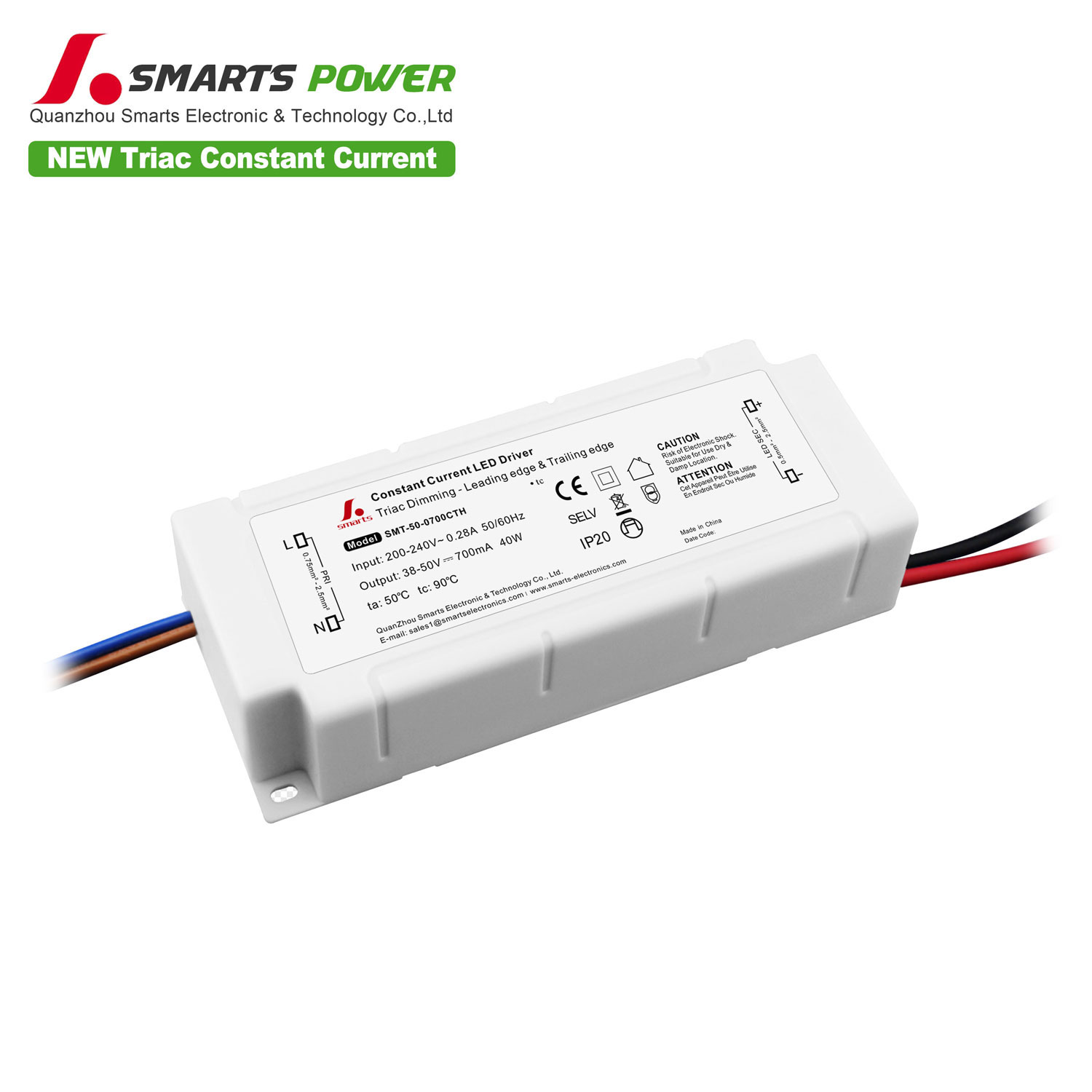

Model: SMT-50-0700CTH
DC Current :700mA
Output Voltage Range :38-50V
Output Rated power :40W
Input voltage range:180-265vAC
Frequency Range : 47～63HZ
Current Accuracy: ±5%
Warranty:3 years
CE ROHS approval
PFC>0.90, Efficiency>0.85
Compact size,light weight
100% full-load burn-in test
With short-circuit and overload projection
Analysis problem
Question:
If the connection load less than 55% for the load limitation led driver, what will happen?
Answer:
If you take our 1.0V triac dimmable led drivers, the led light will have flick problem
Packing & Shipping:
inner box-white box + outer carton- standard exporting carton for packing
- MOQ: 1 pcs
- Delivery: 7 working days for sample order,12 working days for 500pcs.
- Shipping freight are quoted under your requests.
- Loading port: Xiamen
Certificate:
