SPECIFICAION
MODEL

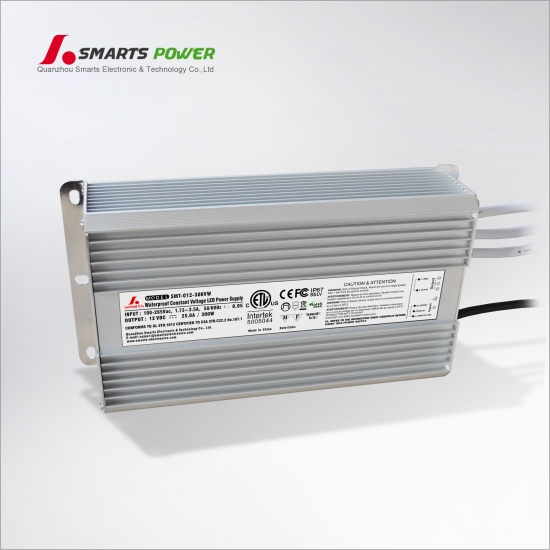

SMT-012-300VW
SMT-024-300VW
SMT-036-300VW
OUTPUT
DC VOLTAGE
DC12V
DC24V
DC36V
RATED CURRENT
25.00A
12.50A
8.33A
CURRENT RANGE
0-25.00A
0-12.50A
0-8.33A
RATED POWER
300 W
300W
300W
RIPPLE&NOISE(max)
150mV
150mV
150mV
CURRENT TOLERANCE
SETUP RISE TIME
80ms/220VAC
HOLD UP TIME(Typ.)
60ms/220VAC
INPUT
VOLTAGE RANGE
170~265VAC
FREQUENCY RANGE
50~60Hz
POWER FACTOR(Typ.)
PF0.6-0.8/220VAC
EFFICIENCY(Typ.)
﹥84%
﹥84%
﹥84%
AC CURRENT(Typ.)
1.85A/220VAC
INRUSH CURRENT (Typ.)
COLD START 50A/20VAC
PROTECTION
Short circuit
Protection type:recovers automatically after condition is removed
Overload
overload protected@145-160% above peak rating
Over temperature
Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT
WORKING TEMP.
-40~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY
20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY
-40~+80℃,10~99%RH
SAFETY&EMC
SAFETY STANDARDS
SELV,CE Mark(LVD),IP67
WITHSTAND VOLTAGE
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
EMC Test Standards
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE
1.All parameters NOT specially mentoned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
3.Tolerance:includes set up tolerance,line regulation and load regulation.
Specifications
2. Input: 170-265vAC / 47-63HZ
13.Two years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)
Features
9. Suitable for LED lighting
Environment
3. Storage temp. humidity: -40~+80℃,10~99%RH
Safety
* Isolation Resistance : I/P-O/P:100M Ohms/500VDC.
Applications
* Vehicle Lights Controller Panels,etc.
