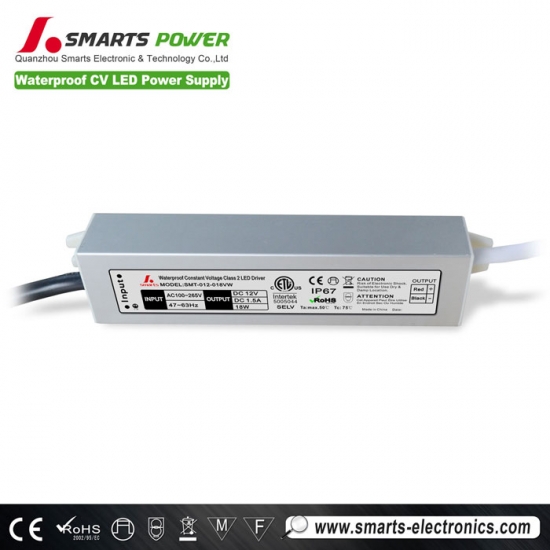

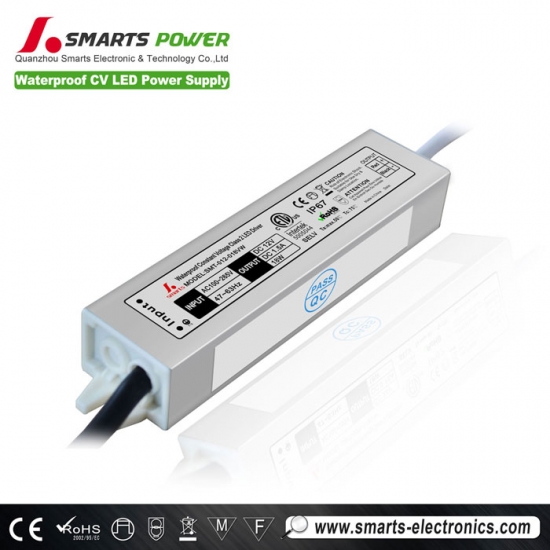

AC to DC 12V 18W Constant voltage LED power supply

AC to DC 12V 18W Constant voltage LED power supply

item no.:
SMT-012-018VW
lead time:
15 working days
product orgin:
China
brand:
SMARTS
shipping port:
Xiamen
payment:
T/T, Paypal, Trade Assurance
Input Voltage:
100-265V
Output Voltage:
12VDC
Output Current:
1.5
Working Mode:
Constant Voltage
Certification:
ETL CE ROHS
Warranty:
2 years

inquiry now

product details

Product name: AC to DC 12V 18W Constant voltage LED power supply

SPECIFICAION
MODEL		SMT-012-018VW	SMT-024-018VW
OUTPUT	DC VOLTAGE	12V	24V
	RATED CURRENT	1.5Amp	0.75Amp
	VOLTAGE RANGE
	RATED POWER	18Watt	18Watt
	RIPPLE&NOISE(max)	300mV	300mV
	VOLTAGE TOLERANCE	±5%	±5%
	LINE REGULATION	±1%	±1%
	LOAD REGULATION	±2%	±2%
INPUT	VOLTAGE RANGE	100-265VAC	100-265VAC
	FREQUENCY RANGE	47-63Hz	47-63Hz
	POWER FACTOR(Typ.)
	EFFICIENCY(Typ.)	﹥83%	﹥84%
	AC CURRENT(Typ.)	0.13A/110,220VAC	0.23A/110,220VAC
PROTECTION	SHORT CIRCUIT	Protection type:recovers automatically after condition is removed
	OVER CURRENT	overload protected@145-160% above peak rating
	OVER VOLTAGE	Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT	WORKING TEMP.	‘-10C+40℃ (Refer to output load derating curve)
	WORKING HUMIDITY	20～99% RH non-condensing
	STORAGE TEMP.,HUMIDITY	-40～+80℃,10～99%RH
SAFETY&EMC	SAFETY STANDARDS	EN61347-1;EN61347-2-13; UL /CE /ROHS approval
	WITHSTAND VOLTAGE	I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	EMC Test Standards	EN55015;EN61000-3-2;EN61000-3-3;
		EN61547;EN61000-4-2,3,4,5,6,8,11;
NOTE	1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
	2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel

	3.Tolerance:includes set up tolerance,line regulation and load regulation.
Label

Specifications

1. Modle: SMT-012-018VW

2. Input: 100~265vAC / 47-63HZ

3. Output : 12V 1.50Amp 18Watt

4. Case material: Plastic/Aluminum

5. Waterproof rate: IP20/IP67

6. Unit weight: 91g

7. Product size: 116*44*20mm(IP20)/130*29*20(IP67)

8. Box size: 299*224*176mm

9. Pack qty: 50pcs/ctn

10.Pack weight: 9.2kg/ctn

11.Produt cord: connecting terminal(IP20) / 18AWG*20CM

13.Two years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)

Features

1. High efficiency,save energy ,protected environment.

2. High stability and low ripple, increase light efficiency and decrease light attenuation.

3. Meet to safety standard and EMC

4. Assure LED stability long lift and light efficiency by constant voltage.

5. Integrity protection,over loading, over voltage ,over current.

6. Protections:Short circuit/Overload/Over temperature

7. Cooling by free air convection

8. 100% full load burn-in test.

9. Suitable for LED lighting

Environment

1. Working temp: -30~+50℃ (Refer to output load derating curve)

2. Working humidity: 20~99% RH non-condensing(Waterproof)

3. Storage temp. humidity: -40~+80℃,10~99%RH

Safety

* Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved

* Withstand Voltage : I/P-O/P: 3000KVAC

* Isolation Resistance : I/P-O/P:100M Ohms/500VDC

Applications

Our products are widely used in various industries, such as

* indoor LED illuminating lights

* LED Neon

* LED urban Decoration

* LED Lighting Advertising,

* LED Display

* Safety Protection Apparatus

* Telecommunications

* Networks

* Vehicle Lights Controller Panels，etc.
