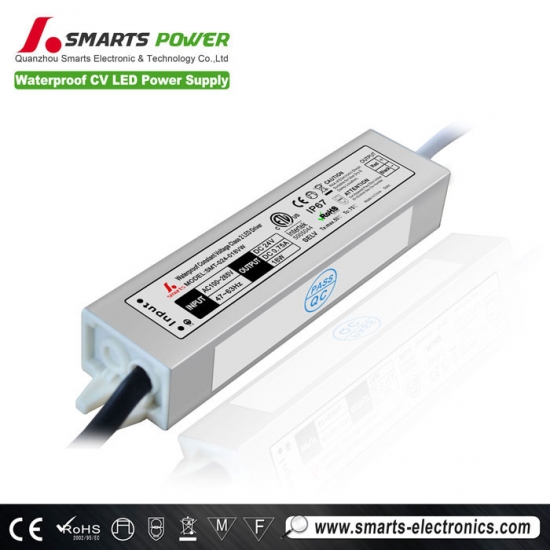

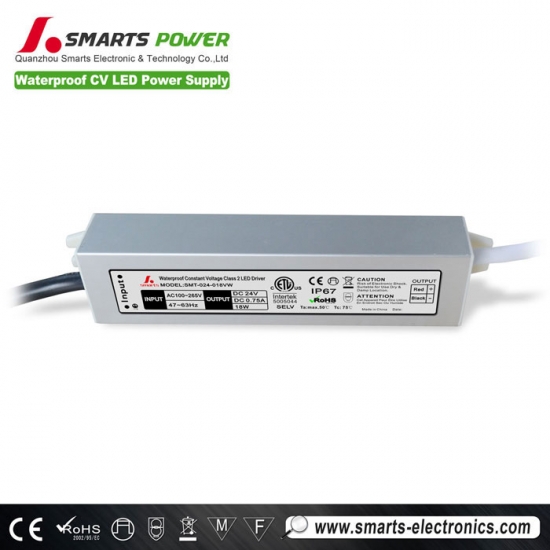

24 volt 15 watt constant voltage led driver
24 volt 15 watt constant voltage led driver IP67 design for indoor or outdoor installations, Suitable for LED lighting, 24 Months warranty
SPECIFICAION
MODEL
SMT-012-015WW
SMT-024-015VW
OUTPUT
DC VOLTAGE
12V
24V
RATED CURRENT
1.25Amp
0.625Amp
CURRENT RANGE
0~1.25A
0~0.625A
RATED POWER
15W
15W
RIPPLE&NOISE(max)
150mV
150mV
CURRENT TOLERANCE
±0.5V
±0.5V
SETUP RISE TIME
80ms/110,220VAC
81ms/110,220VAC
HOLD UP TIME(Typ.)
60ms/110-220VAC
60ms/110-220VAC
INPUT
VOLTAGE RANGE
100~265VAC
FREQUENCY RANGE
50~60Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.)
>82%
>82%
AC CURRENT(Typ.)
3.3A/110,220VAC
1.9A/110,220VAC
INRUSH CURRENT (Typ.)
COLD START 50A/110~220VAC
PROTECTION
Short circuit
Protection type:recovers automatically after condition is removed
Overload
overload protected@145-160% above peak rating
Over temperature
Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT
WORKING TEMP.
-30~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY
20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY
-40~+80℃,10~99%RH
SAFETY&EMC
SAFETY STANDARDS
UL/ROHS/CE Mark(EMC,LVD),IP67
WITHSTAND VOLTAGE
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
EMC Test Standards
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE
1.All parameters NOT specially mentoned are measured at 110V, 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
3.Tolerance:includes set up tolerance,line regulation and load regulation.
Specifications of 24volt led driver
1. Input voltage.:100~265vAC
2. Efficiency>82%
3. Warranty: 2 years
4. CE,ETL,ROHS approval
5. product size: 130*29*20mm
6. Net weight: 91g/pcs
7. Case material:aluminum
8. Waterproof rate: IP67
Features of 15watt led driver
- High efficiency,save energy ,protected environment
- High stability and low ripple, increase light efficiency and decrease light attenuation
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant voltage
- Passed high ,low temperature and waterproof testing.
- Integrity protection,over loading, over voltage ,over current
- 8Hrs and 100% full load burn-in test.
Environment parameter:of constant voltage led driver
1. Working temperature:-40 -80°C
2. Store temperature:-40 -85°C
3. Working humidity:10-90%
4. Lifespan:(MTBF)50,000 hours
5. Case machine specifications
6. Case: plastic case
Safety
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Product parameters
|
Model |
Input voltage(AC V) |
Working Frequency |
Output voltage |
Output Current |
Output power(DC W) |
Working Temp. |
Protection grade |
|
SMT-012-015VW |
100-265V |
47~63HZ |
12 |
1.25A |
15W |
-25~50°C |
IP67 |
|
SMT-024-015VW |
100-265V |
47~63HZ |
24 |
0.625A |
15W |
-25~50°C |
IP67 |
|
SMT-036-015VW |
100-265V |
47~63HZ |
36 |
0.42A |
15W |
-25~50°C |
IP67 |
|
SMT-048-015VW |
100-265V |
47~63HZ |
48 |
0.32A |
15W |
-25~50°C |
IP67 |
Applications
Our products are widely used in various industries, such as
- indoor LED illuminating lights,
- LED Neon,
- LED urban Decoration
- LED Lighting Advertising,
- LED Display,
- Safety Protection Apparatus,
- Telecommunications,
- Networks,
- Vehicle Lights, Controller Panels, etc.
FAQ
Q1. What's type power supply do you have?
Answer: We specialized in constant voltage & current LED drivers,
0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters
Q2. What's shipping mode can we choose?
Answer: 1.FedEx/DHL/UPS/TNT/Express for samples;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping method
Q3. What's the MOQ?
Answer: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.
Q4. What can you do if the product is broken?
Answer: We promise to replace new ones to you if there is any defective happen
during the warranty period, but we need pictures or video to prove the defective
comes from our quality problem
Q5. what's the protection of product?
Answer: Most of our products have protection of short-circuit. overload,
over voltage, over current and reserve polarity. About the specific product,
please consult our salesstuff.
Q6. what's the transportation?
Answer: For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
We will cooperate with your choice.
Q7. What's the Payment do you have?
Answer: To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,
WESTERN UNION, PAYPAL. More payment options will be added in the near future.
.
Q8. How can i contact with you? will you on line??
Answer: contact me at follow info, we will provide services timely
