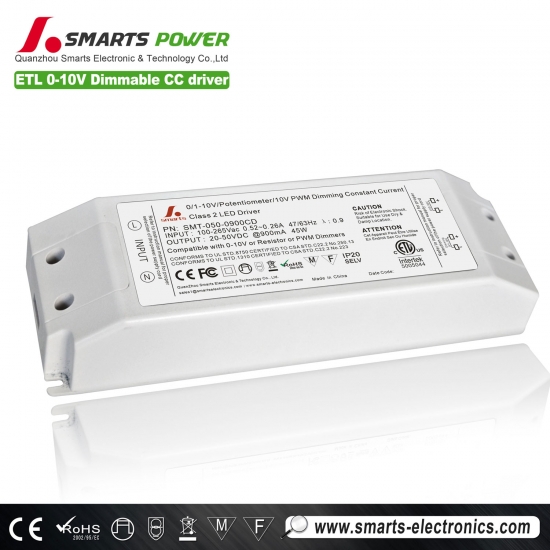

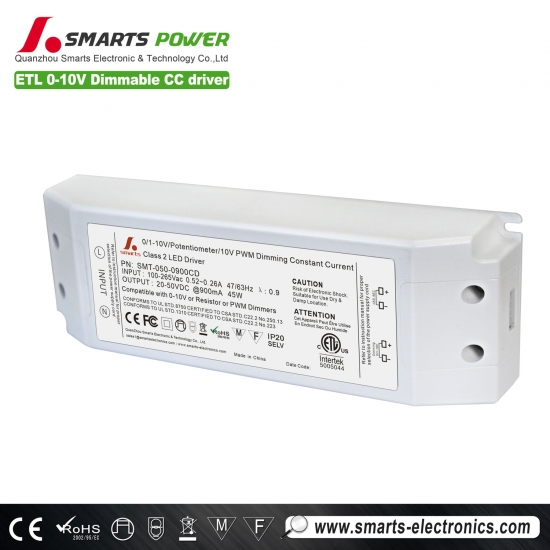

900mA 45W 0-10V/PWM dimmable Constant Current LED driver
Product Description
Model
SMT-065-0700CD
SMT-050-0900CD
SMT-040-1050CD
SMT-040-1200CD
Output
DC Current
700mA
900mA
1050mA
1200mA
Current Accuracy
±3%
Voltage Range
35-65V
20-50V
15-40V
20-40V
Rated power
45W
45W
42W
48W
Input
Voltage Range
100～265VAC
Frequency Range
47～63HZ
PF(Typ.）
PF>0.9 5
Full Load Efficiency（Typ）
>86%
>87%
>87%
>86%
AC Current (Typ.）
0.24A
0.26A
0.23A
0.25A
Leakage current
﹤0.7mA/110-220VAC
Protection
Short Circuit
Protection type: Hiccup mode, recovers automatically after fault
condition is removed
Over voltage
≦280VAC
Over temperature
100℃±10℃ shut down o/p voltage, re-power on to recover
Environme
Working TEMP.
-40～+50℃
Working Humidity
20～95%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13. IP40
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation resistance
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
Compliance to EN55015,EN61000-3-2 (≧50%Load)
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry
level
Others
Weight
0.55Kg
Size
180*60*34mm（L*W*H）
packing
Carton size: 355*215*215mm, Carton: 20pcs /CTN
Notes
1. All parameters NOT specially mentioned are measured at 110v~220VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
Specifications
- wire requirements:18AWG*20CM (waterproof type)
- 3 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)
-
Features
- Constant current design with high accuracy.
- International wide input voltage.
- Wattage: 15w-200w
- 8Hrs and 100% full load burn-in test.
- High reliability designing solution
- Cooling by free air convection
- Suitable for LED lighting and moving sign applications
- High efficiency,save energy ,protected environment
- High stability and low ripple, increase light efficiency and decrease light attenuation
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant current
- Passed high ,low temperature testing.
- Integrity protection,over loading, over voltage over current
Environment
- Working Temperature : -40 ~ +50°C
- Working Humidity : 20 ~ 95% RH non-condensing
- Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
- TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
- Vibration : 10 ~ 500Hz, 5G 15min./1cycle, period for 72min. each along X, Y, Z axes
Safety
- Safety Standards : EN61347-1 EN61347-2-13. IP40
- Withstand Voltage : I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
- Isolation Resistance : I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
- EMC Emission : Compliance to EN55015,EN61000-3-2 (>50%Load)
- EMC Immunity : Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level
Application
- Indoor LED illuminating lights
- LED Neon, LED urban Decoration
- LED Lighting Advertising,LED Display
- Safety Protection Apparatus
- Telecommunications, Networks
- Vehicle Lights, Controller Panels
Packaging & Shipping
| Packing | |||||||
| N.W./pcs | G.W/ctn | Qty/ctn | Carton Size(mm) | ||||
| 900mA 45W 0-10V/PWM dimmable Constant Current LED driver | |||||||
| 900g/pcs | 11kg/ctn | 10pcs | 324*298*188mm | ||||
