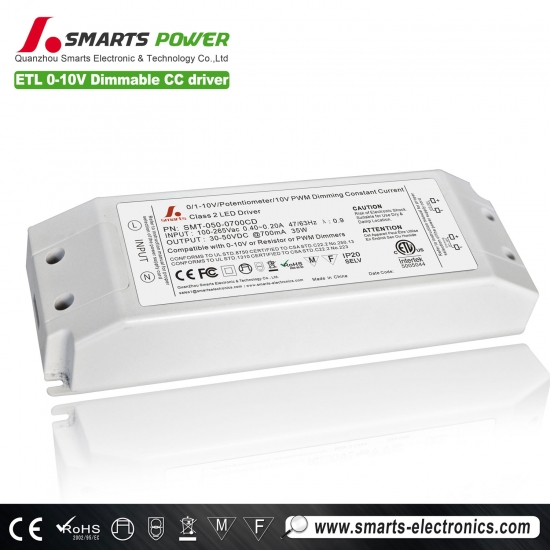

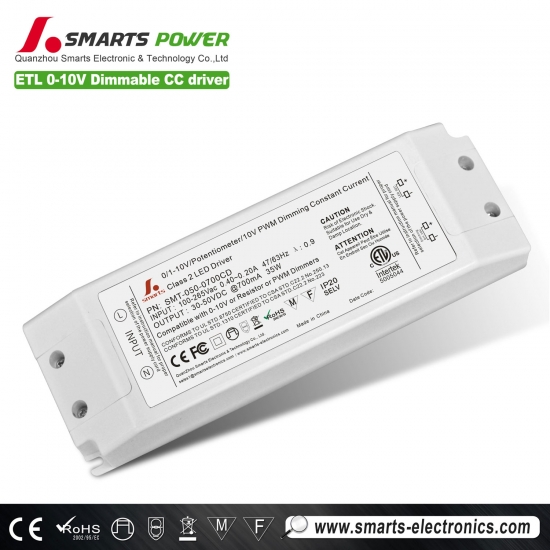

700mA 35W 0-10V/PWM dimmable Constant Current LED driver
|
Model |
SMT-086-0350CD |
SMT-050-0700CD |
SMT-036-0900CD |
SMT-025-1200CD |
||
|
Output |
DC Current |
350mA |
700mA |
900mA |
1200mA |
|
|
Current Accuracy |
±3% |
|||||
|
Voltage Range |
52-86V |
30-50V |
20-36V |
15-25V |
||
|
Rated power |
30W |
35W |
32W |
30W |
||
|
Input |
Voltage Range |
100～265VAC |
||||
|
Frequency Range |
47～63HZ |
|||||
|
PF(Typ.） |
PF>0.9 5 |
|||||
|
Full Load Efficiency（Typ） |
>86% |
>87% |
>87% |
>86% |
||
|
AC Current (Typ.） |
0.16A@220V |
0.19A@220V |
0.18A@220V |
0.16A@220V |
||
|
Leakage current |
﹤0.7mA/110-220VAC |
|||||
|
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
||||
|
Over voltage |
≦280VAC |
|||||
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
|||||
|
Environme |
Working TEMP. |
-40～+50℃ |
||||
|
Working Humidity |
20～95%RH,non-condensing |
|||||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|||||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|||||
|
Vibration |
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes |
|||||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13. IP20 |
||||
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
|||||
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH |
|||||
|
EMC EMISSION |
Compliance to EN55015,EN61000-3-2 (≧50%Load) |
|||||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level |
|||||
|
Others |
Weight |
0.4Kg |
||||
|
Size |
180*60*35mm（L*W*H） |
|||||
|
packing |
355*215*215mm/20pcs /CTN |
|||||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110v~220VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
|||||
 |
 |
 |
 |
|
Model |
Input voltage(vAC) |
Working Frequency (Hz) |
Output voltage (vDC) |
Output Current |
power (Watt) |
Working. Temp |
Protection grade |
|
SMT-050-0700CD |
100-265V |
47~63Hz |
20-50V |
700mA |
35W |
-40~50°C |
IP40 |
Features
- Input range :100-265VAC
- Built-in PFC function
- Efficiency > 84% / PF>0.9
- Protections:Short circuit/over Voltage
- Fully isolated plastic cover
- Easy installation
- Cooling by free air convection
- Work with leading edge and trailing edge TRIAC dimmers
- Strong compatibility, flicker-free dimming
- dimmable constant current led driver is Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
- 3 years warranty
- Lifespan:(MTBF)50,000 hours
Protection
- Short Circuit: Hiccup mode, recovers automatically after fault condition
- Over voltage: <270VAC 0r =270VAC
Environment parameter
- Working temperature: -40~+60℃
- Working humidity:20~90%RH,non-condensing
- Storage TEM.,Humidity: -40~+80℃,10~95%RH
- TEMP.coefficient: ±0.03%/℃(0~50℃)
- Vibration: 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
Safety &EMC
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
- EMC EMISSION: Compliance toEN55015,EN61000-3-2 (> or=50%load)
- EMC IMMUNITY : Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry level (surge4KV)
Applications
- indoor LED illuminating lights, LED Neon
- LED urban Decoration,LED Lighting Advertising
- LED Display, Safety Protection Apparatus
- Telecommunications, Networks
- Vehicle Lights, Controller Panels
Packaging & Shipping
| 700mA 35W 0-10V/PWM dimmable Constant Current LED driver | |||
| Net weight (g) | Gross Weight/ctn | Qty/ctn | Carton size(mm) |
| 300 g | 16kg | 50 pcs | 324*298*188mm |
