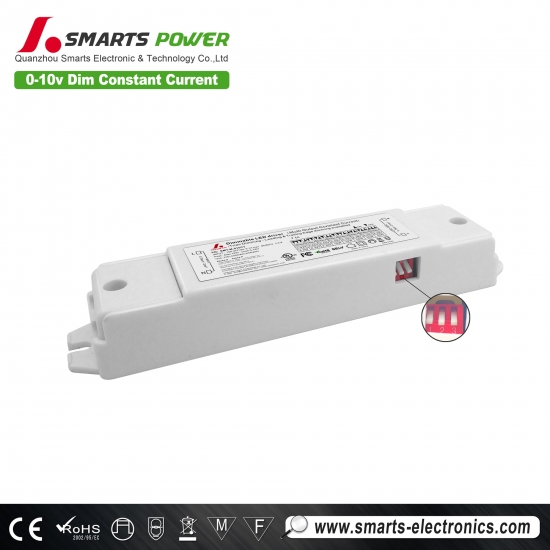

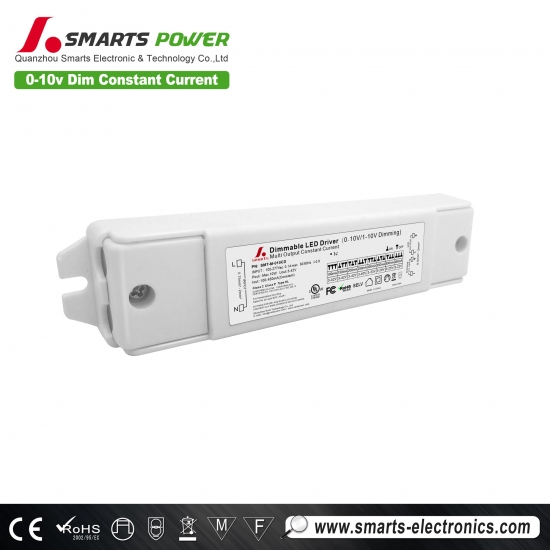

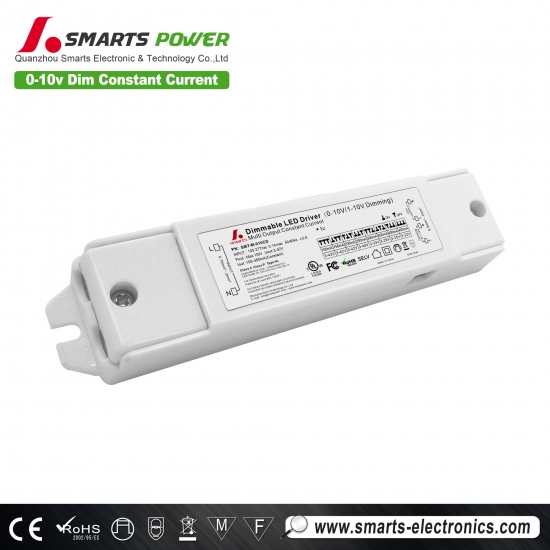

10w constant current 0-10v dimmable led driver with dip switch

10w constant current 0-10v dimmable led driver with dip switch

It comes to dimmable constant current led driver, we will recommend our 0-10v dimmable led driver. The glittering lights reflected feel beautiful, elegant, and atmospheric, placed at the entrance to illuminate your way home, warm your heart.

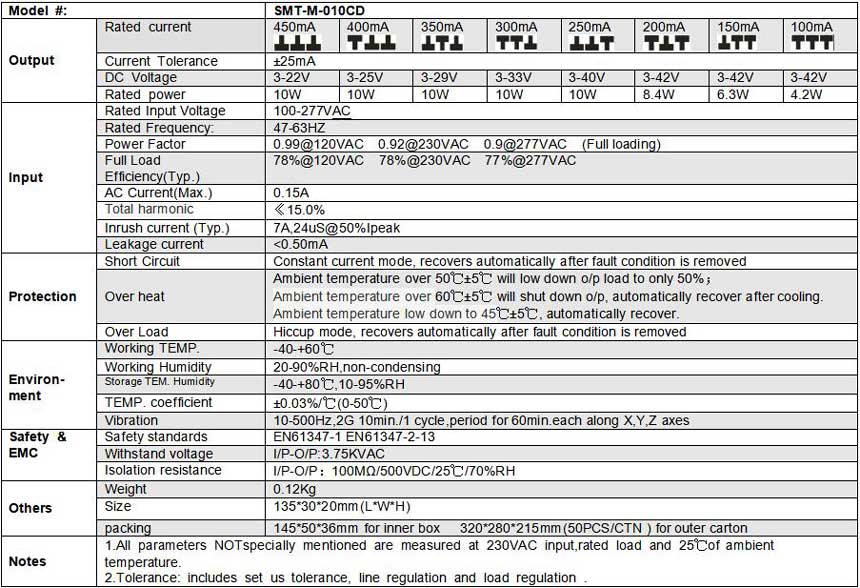

  Specification

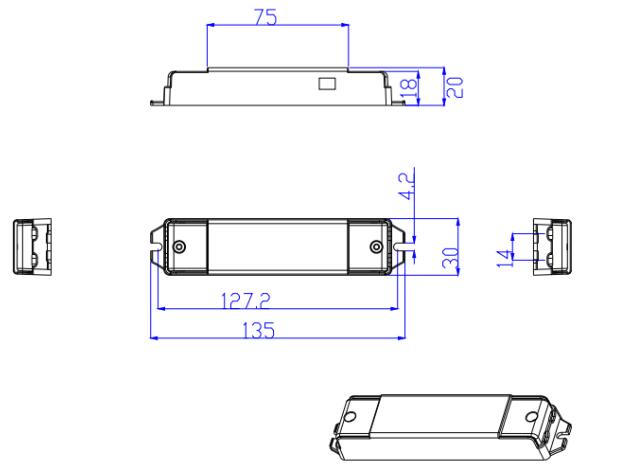

  Mechanical Specification

 ※Input terminals "Black" and "White" to connect to AC L and N.

 ※Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.

※Output terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)

※Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.

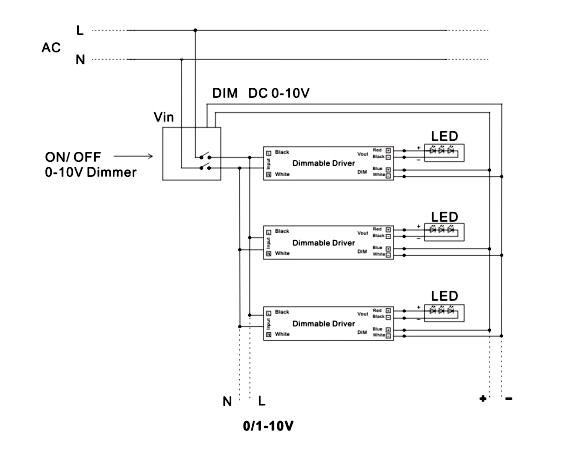

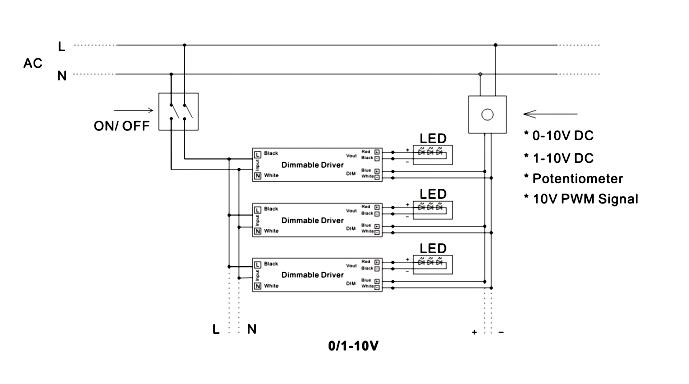

  Dimming operation

lInput wire 18AWG Black and White to be connected to AC L and N ,Green wire go ground,
lOutput wire 14AWG Red to LED Positive side (+) , Black  to LED Negative side (-).

  Compatible with warehouse LED lights

This 5-light chandelier makes a statement in your home with its tiered stands of raindrop- shaped crystals that cast a sparkling, colorful light throughout your space. It's a fixed height,
We love that this chandelier is compatible with a dimmer switch, to let you choose the mood in your dining room, entryway, or living room.
