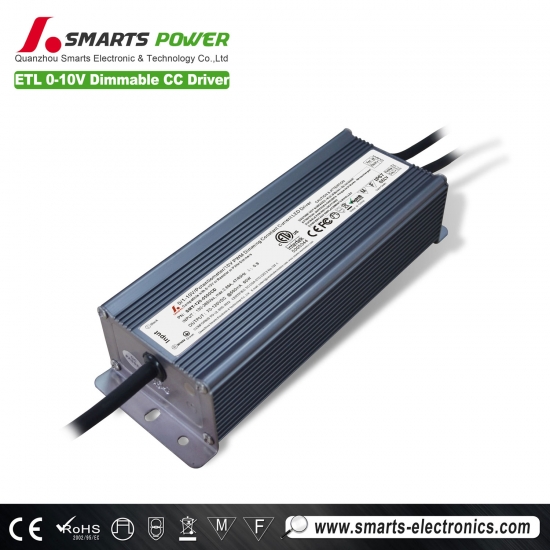

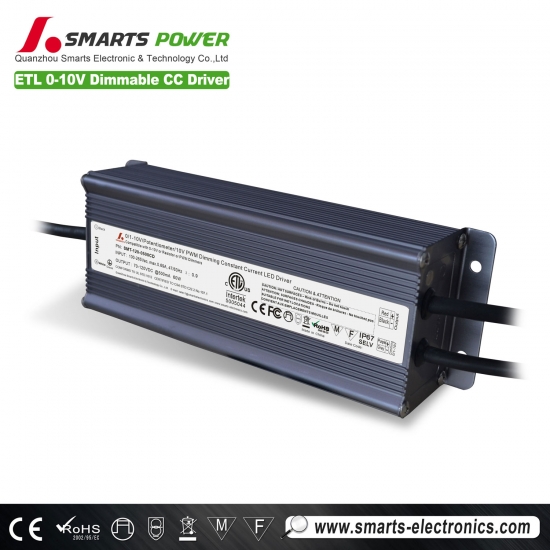

500mA 60W 0-10V/PWM dimmable Constant Current LED driver

500mA 60W 0-10V/PWM dimmable Constant Current LED driver

  Features

• Input range :100-265VAC
• Built-in PFC function
• Efficiency > 84%  / PF>0.9
• Protections:Short circuit/over Voltage
• Fully isolated aluminum housing
• Easy installation
• Cooling by free air convection
• Work with leading edge and trailing edge TRIAC dimmers
• Strong compatibility, flicker-free dimming
• Suitable for LED lighting and moving sign applications
• Compliance to worldwide safety regulations for lighting
• 3 years warranty
• Lifespan:(MTBF)50,000 hours

  Protection

• Short Circuit:  Hiccup mode, recovers automatically after fault condition
• Over voltage: <270VAC 0r =270VAC

  Environment parameter

• Working temperature: -40~+60℃
• Working humidity:20~90%RH,non-condensing
• Storage TEM.,Humidity:  -40~+80℃,10~95%RH
• TEMP.coefficient:  ±0.03%/℃(0~50℃)
• Vibration:  10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z  axes

  Safety &EMC

• Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
• Withstand Voltage : I/P-O/P: 3000KVAC
• Isolation Resistance : I/P-O/P:100M Ohms/500VDC
• EMC EMISSION:   Compliance toEN55015,EN61000-3-2 (> or=50%load)
• EMC IMMUNITY :  Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry level (surge4KV)

  Application

• indoor LED illuminating lights, LED Neon
• LED urban Decoration,LED Lighting Advertising
• LED Display, Safety Protection Apparatus
• Telecommunications, Networks
• Vehicle Lights, Controller Panels
