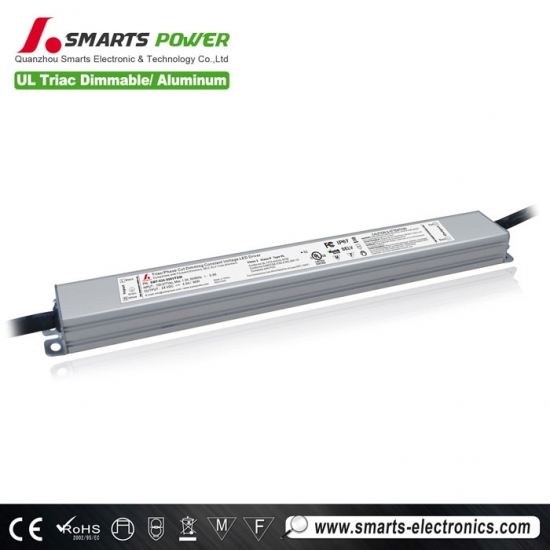

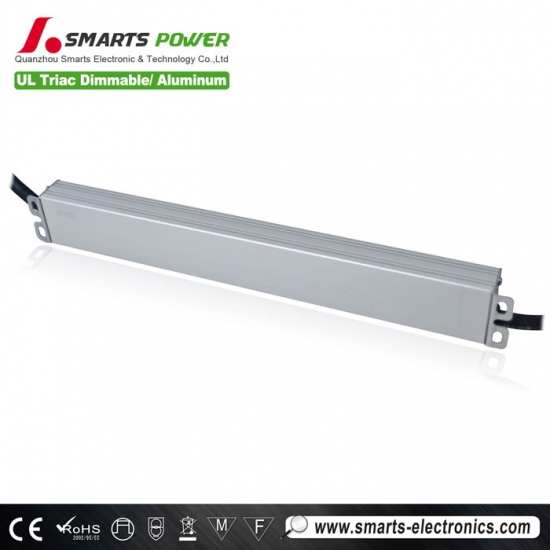

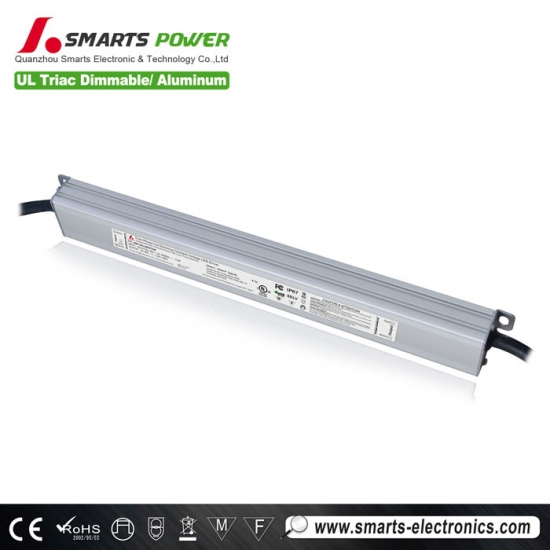

110v 277v 24 volt 100 watt dimmable led driver for LED lighting
SMT-024-096VTSW are class 2 rated hardwire triac dimmable led driver with UL and cUL, can be used in both USA and Canada market. In the mean time, the 180-265vac for EU market is avaliable and alternative.
Detailed specification
|
model |
SMT-012-100VTSW |
SMT-024-096VTSW |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
8.33Amp |
4Amp |
|
|
Rated power |
100W |
96W (class 2) |
|
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±1% ±1% |
||
|
Input |
Voltage Range |
100-277 VAC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
PF≧0.99/110V ; PF≧0.98/277V |
||
|
Full Load Efficiency（Typ.） |
>83% |
>84% |
|
|
AC Current（Typ.） |
1.10A/100VAC / 0.43A/277VAC |
||
|
Inrush Current（Typ.） |
9.2A, 50%, 1ms@120VAC / 26.4A, 50%, 780us@2770VAC |
||
|
Leakage current |
<0.50mA/110VAC; ﹤0.13mA/277VAC |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
Withstand voltage |
I/P-O/P: 2KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,,11, , Alight industry level |
||
|
Others |
Weight |
0.55Kg |
|
|
Size |
330*32*23mm (L*W*H) |
||
|
packing |
50PCS/CTN
|
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
| Label |
 |
||
 |
 |
 |
 |
Mechanical Specification for dimmable LED transformer
There are 30w, 36w, 60w in both 12vdc and 24v are avaliable in this series. all with ultra slim size desin.
Dimming Operation
※Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
※Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..
※Please try to use dimmers with power at least 1.5 times as the output power of the driver.
