277v led driver input ac 100 watt led dimmer driver 12 volt for sale
SMT-012-100VDH is a dimming led driver with an output voltage of 12v and an output power of 100W. Simultaneously, its IP20 is design for indoor or outdoor installations. The input voltage of 277v is one of its characteristics.
Specification
model
SMT-012-100VDH
SMT-024-096VDH
Output
DC Voltage
12V
24V
Voltage Accuracy
±0.5V
±0.5V
Rated current
8.3A
4.0A (class 2 type)
Rated power
100W
96W
Input
Voltage Range
100~277V AC
Frequency Range
47～63HZ
Power Factor ( Typ.）
PF≧0.98/110V , PF≧0.95/277V
Full Load Efficiency(Typ.)
>88%
>88%
AC Current（Typ.）
1.3A @110VAC
Leakage current
﹤0.5mA
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition is removed.
Over voltage
≦140VAC(90~135V) , ≦270VAC(170~265V)
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750+UL1310
Withstand voltage
I/P-O/P:3.75KVAC
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
Others
Weight
1.3Kg
Size
220*93*41mm (L*W*H)
packing
10PCS/CTN 385*335*200mm 20PCS/CTN
Notes
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .

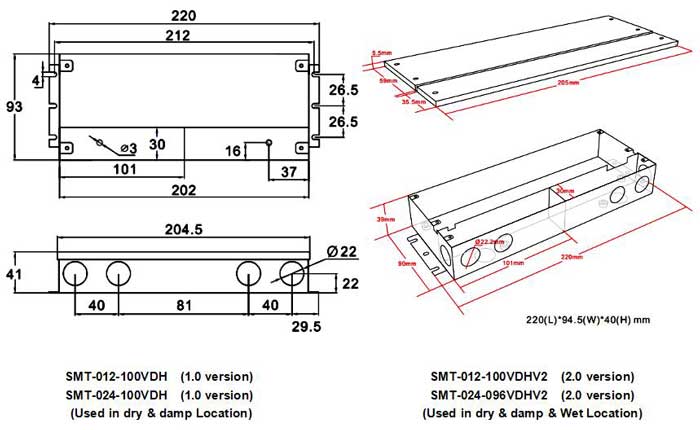

Mechanical Specification
ØInput wire Black and White to be connected to AC L and N ,Green wire go ground,
ØOutput wire Red to LED Positive side (+) , Black to LED Negative side (-).
ØDimming cable DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)
ØPlease make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
