Non-dimmable LED Driver

277v 24 volt 200 watt led power supply waterproof for canada

110-277v input ac to dc 24 volt 200 watt 0-10v dimmable led power supply waterproof compliance to USA canada safety regulations for lighting. with CE  Class P  Type HL  UL/cUL  RoHS approval, 0-10V/ 1-10V/ 10V PWM or Resistor dimming function.




  • item no.:

    SMT-024-200V DH
  • brand:

    SMARTS
  • Input Voltage:

    110-277VAC
  • Output Voltage:

    24V
  • Output Current:

    8.33A
  • Working Mode:

    constant voltage
  • Certification:

    UL cUL FCC CE ROHS
  • Warranty:

    5 years
inquiry now
product details

277v 24 volt 200 watt led power supply waterproof for canada


  Product Overview


The VDH 0-10v dimming Series of Constant Voltage LED power supply from Smarts Electronics offers both UL Listed and UL Recognized style enclosures. These power supply are IP67 rated and are suitable for both indoor and outdoor installations. With universal input voltage ranging from 110 to 277VAC, are designed for commercial, industrial and residential applications. Our 0-10V dimming delivers smooth flicker-free linear dimming down to 0% with most LED’s and a wide variety of compatible dimmers.



  Specification




Voltage Accuracy

±0.5V



Rated current

08.33A



Rated power

200W

Input

Voltage Range

100-277VAC



Frequency Range

4763HZ



Power Factor ( Typ.)

PF≧0.90/120V / PF≧0.90/220V / PF>0.92/277V



Full Load EfficiencyTyp.

>91%(120V) / >92%(277V)



AC CurrentTyp.

2.171@110VAC / 0.817A@277VAC



Leakage current

0.9mA/120VAC / 0.7mA/220VAC /0.68mA/277VA



  Safety&EMC


Safety standards

Class P, Type HL, EN61347-1 EN61347-2-13  IP67

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG100MΩ/500VDC/25/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (50%load)

EMC IMMUNITY

   Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry

   level

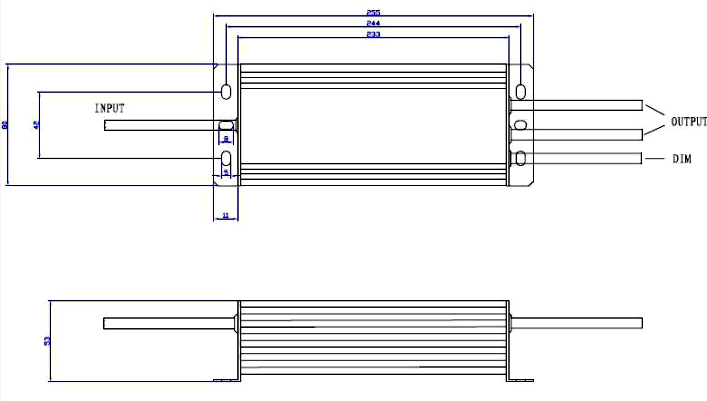

  Mechanical Specification


277v power supply waterproof


※Input Rubber cable  H03VV-F 3G 1.0㎡,the green/yellow cable connect with (FG),Brown with AC (L),Blue with AC(N)

※Signal Rubber H03VV-F 2G*0.75㎡,Blue is(DIM+),White is(DIM-)

※Output rubber cable  H03VV-F 2G*0.75㎡,Red is output(V+),Black is output(V-).

※180W with three group output. 200W with two group output.
