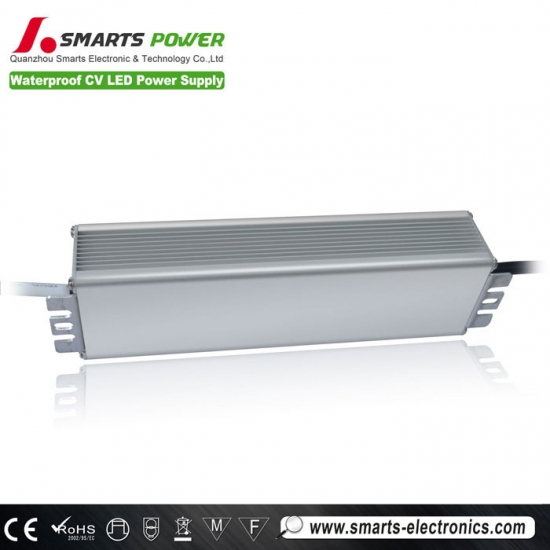

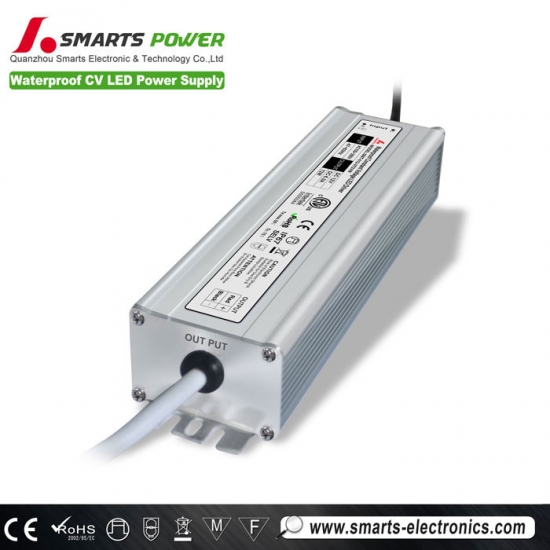

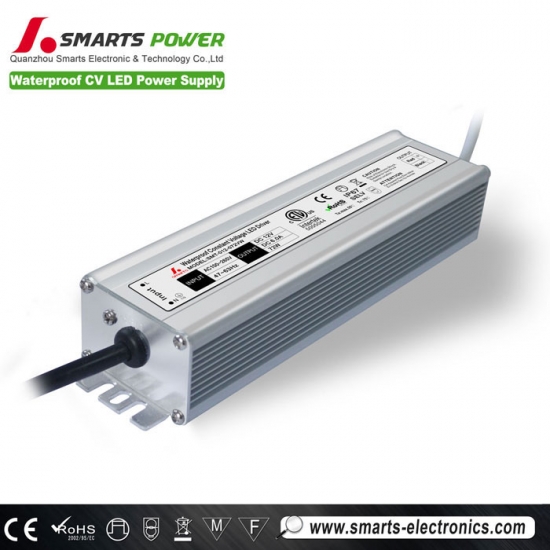

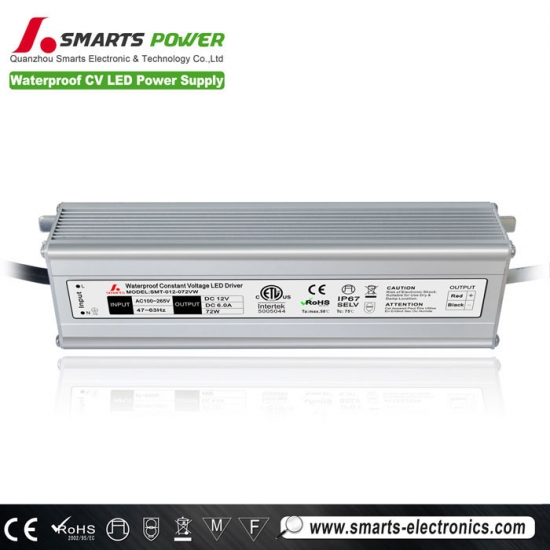

Non-dimmable LED Driver

12v power supply module 72w 6a 24v 36v 48v led panel light

12v power supply module 72w 6a 24v 36v 48v led panel light
  • item no.:

    SMT-012-072VW
  • lead time:

    about 7 working days for sample order
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T Paypal Western Union
  • Input Voltage:

    100-265V
  • Output Voltage:

    12VDC
  • Output Current:

    6A
  • Working Mode:

    Constant Voltage
  • Certification:

    ETL CE ROHS
  • Warranty:

    2 years
inquiry now
product details
12v power supply module 72w 6a 24v 36v 48v led panel light



 SPECIFICAION
MODEL SMT-012-072VW SMT-024-072VW
OUTPUT DC VOLTAGE 12V 24V
RATED CURRENT 6.0A 3.0A
CURRENT RANGE 0~6.0A 0~3.0A
RATED POWER 72W 72W
RIPPLE&NOISE(max) 1.2V 1.2V
voltage TOLERANCE 12V±5% 24V±5%
SETUP RISE TIME 80ms/110,220VAC 80ms/110,220VAC
HOLD UP TIME(Typ.) 60ms/110,220VAC 60ms/110,220VAC
INPUT VOLTAGE RANGE 90~135/170~265Vac 90~135/170~265Vac
FREQUENCY RANGE 50~60Hz 50~60Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.) ﹥84% ﹥84%
AC CURRENT(Typ.) 0.5A/110V,220VAC 0.5A/110V,220VAC
INRUSH CURRENT (Typ.) COLD START 30A/110,220VAC
PROTECTION Short circuit Protection type:recovers automatically after condition is removed
Overload overload protected@145-160% above peak rating
Over temperature Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT WORKING TEMP. -30~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY 20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY -40~+80℃,10~99%RH
SAFETY&EMC SAFETY STANDARDS UL, CE Mark(LVD, EMC), IP67
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC  IP-GND:1.5KVAC
EMC Test Standards EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE 1.All parameters NOT specially mentoned are measured at 110VAC, 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
 capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
 Label  12v power supply module 72w 6a 24v 36v 48v led panel light


Triac dimmable led driver
Dali dimmable led driver
0-10V led power supply
277v led driver



 Descriptions


  1. Input volt.:100~265vAC
  2. Efficiency>83%
  3. Warranty: 2 years
  4. CE,ETL ROHS approval
  5. Size:   190*48*34   (mm)
  6. Net weight: 550g/pc
  7. Case material: aluminum
  8. Waterproof rate:  IP67


 Features



  1. High efficiency,save energy ,protected environment.
  2. High stability and low ripple, increase light efficiency and decrease light attenuation.
  3. Meet to safety standard and EMC
  4. Assure LED stability long lift and light efficiency by constant voltage.
  5. Integrity protection,over loading, over voltage ,over current.
  6. 8Hrs and 100% full load burn-in test.



 Environment


      1.Working Temperature : -25 ~ +50°C

      2.Working Humidity : 20 ~ 90% RH non-condensing

      3.Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH

      4.TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)

      5.Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes



 Safety


      1.Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved

      2.Withstand Voltage : I/P-O/P: 3000KVAC

      3.Isolation Resistance : I/P-O/P:100M Ohms/500VDC







 What Service we can supply?



1.    We are ETL audited LED drivers/power supplies enterprise in China.

2.  Alibaba assessed 2 years Gold Supplier and more than 10 years LED industrial experience.

       it will guarantee your order 100% safe.

3.   Price is negotiable if you have large quantity demand

4.   100% QC inspection Before Shipping

5.    Best Quality & Best Service with Competitive price.

6.   Shipping will be the most economical for you and freight cost is informed in advance for your consideration.

       decision for the shipping terms will be made according to your requirements

7.   Samples will be ready within 7 working days.

8.   We have our engineer team, if you have any question about your LED applications, let  us know freely,

      we will  give you the best solution.
9.    Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours.

10.  OEM design & OEM packing welcom.


 All of our drivers are got CE ROHS listed .OEM Welcome



Our led drivers are widely used for:

1.Indoor LED illuminating lights

2.LED Neon, LED urban Decoration

3.LED Lighting Advertising,LED Display

4.Safety Protection Apparatus

5.Telecommunications, Networks

6.Vehicle Lights, Controller Panels
