Model

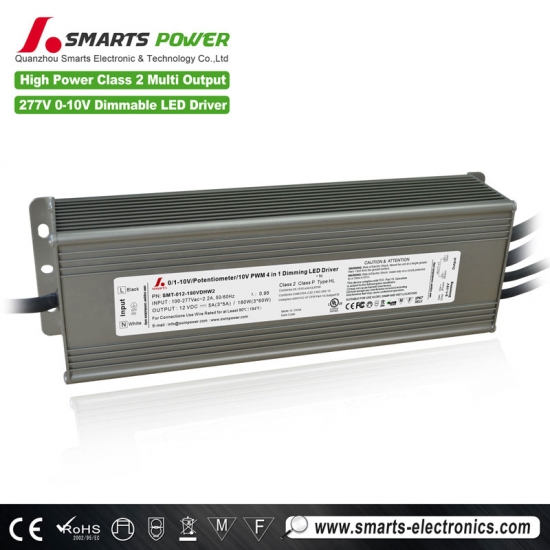

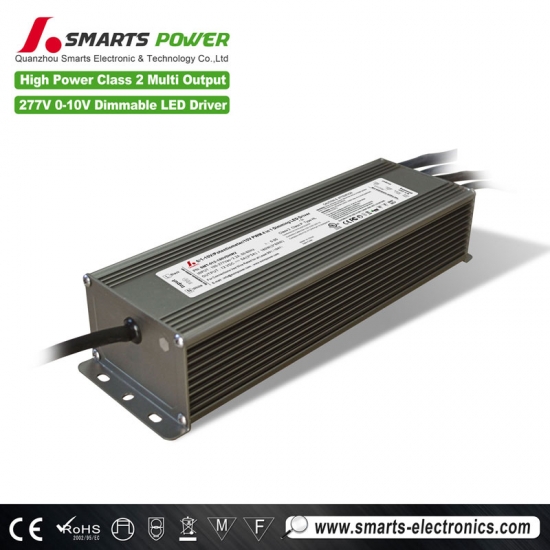

SMT-012-180VDHW2

SMT-024-192VDHW2

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

±0.5V

Rated current

3*5A

2*4A

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Rated power

180W (3*60W)

192W (2*96W)

Input

Voltage Range

100-305VAC (110, 277VAC)

Frequency Range

47~63HZ

Power Factor ( Typ.)

0.99@120VAC  0.94@277VAC

0.99@120VAC  0.94@277VAC

Full Load Efficiency(Typ.)

86%@120V   88%@277VAC

79%

87%@120V   89%@277VAC

AC Current(Typ.)

2.2A@110VAC / 0.93A@277VAC

Inrush Current (Typ.)

19A ,50%,1.3ms @120VAC ;  38A,50%,960us @277VAC

12.4A (twidth=430us) @277VAC

THD(Typ.)@ full load

<20%

<20%

Leakage current

﹤0.9mA/120VAC / ﹤0.7mA/220VAC /﹤0.68mA/277VA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition is removed

Over Loading

≤120%  Hiccup mode ,recovers automatically after fault condition is removed

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Environment

Working TEMP.

-40~+60℃ (see below derating curve)

Working Humidity

20~90%RH, non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:1.88KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC 47 CFR Part 15 ,Subpart B

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry

level

Others

Weight

1.7Kg

Size

276*78*47mm (L*W*H)

packing

440*295*145mm/8pcs/CTN    265*98*55 mm for inner box

Notes

1. All parameters NOT specially mentioned are measured at 110~277VAC input , rated load and 25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .
