12v 24v 60W triac & 0 10v dimming constant voltage led lights driver for indoor

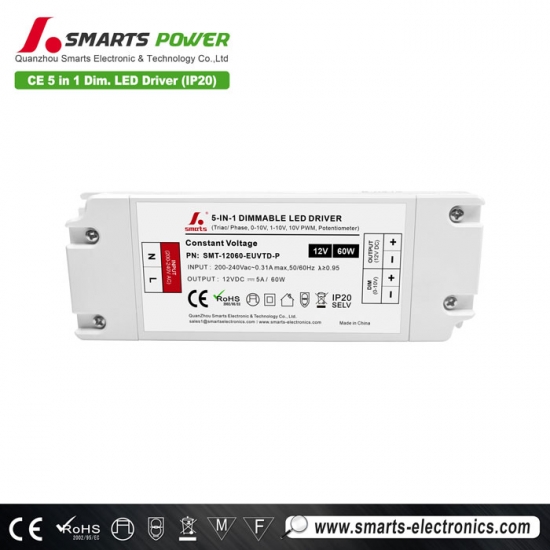

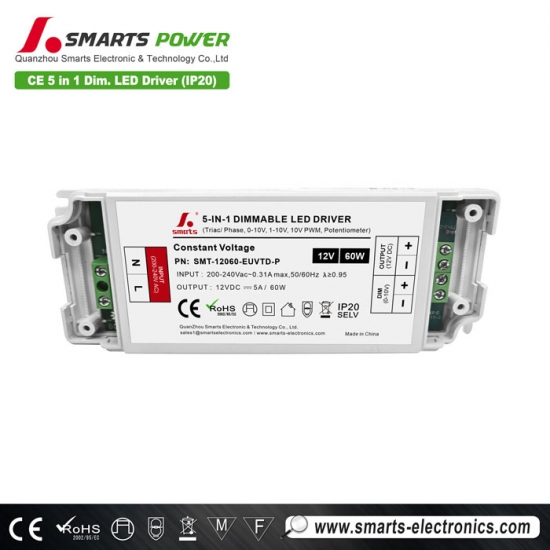

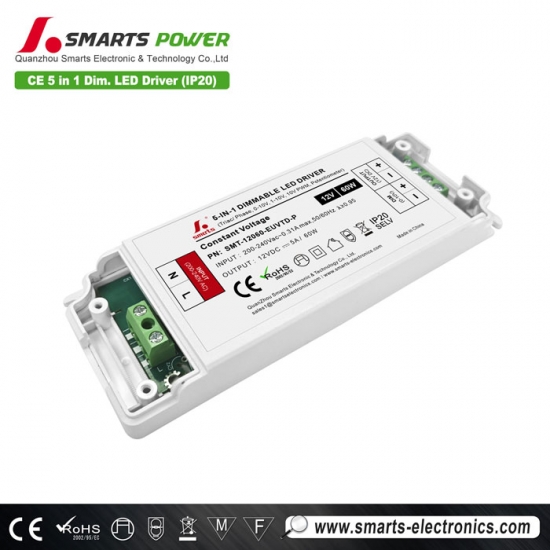

This product is CE certified. The plastic shell is designed with a waterproof level of IP20, and the 5 in 1 dimmable 60W LED driver has a constant voltage working mode and a working efficiency of up to 80%. It uses natural air cooling to dissipate heat. It is suitable for installation and use in indoor small space lighting projects
Specification
Model Number | SMT-12060-EUVTD-P | SMT-24060-EUVTD-P | |
Output | Rated Power | 60W | |
Rated Voltage | DC12V | DC24V | |
Rated Current | 5A | 2.5A | |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Load Regulation | ±1% | ||
Input | Voltage Range | 200-240V | |
Frequency Range | 47-63Hz | ||
Efficiency (Typ.) | 84%@230VAC | 85%@230VAC | |
THD | THD≤20% (@100% load) | ||
Power Factor (Typ.) | 0.99@ 230VAC (full loading) | ||
AC Current (Typ.) | 0.30A | ||
Inrush Current (Typ.) | <20A | ||
Leakage Current | <0.5mA | ||
Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
Over Loading | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
Over Temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
Protection Class | II | ||
Environment | Working Temp. | Tcase=-40℃ ~ +60℃ (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
Working Humidity | 20 ~ 95% RH non-condensing | ||
Storage Temp.Humidity | -40 ~ +90, 10 ~ 95% RH | ||
Temp. Coefficient | ±0.03%/℃ (0~50℃) | ||
Vibration | 10-500Hz,2G 12 minutes/cycle, Period 72 minutes each along X,Y,Z axes | ||
Safety & EMC | Safety Standards | EN613471, EN61347-2-13 | |
Withstand Voltage | I/P-O/P:3KVAC | ||
Isolation Resistance | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||
EMS | EN61000-3-2; EN61000-3-3; EN61547 | ||
EMF | EN62493-2010 | ||
Others | IP Rating | IP20 | |
Weight | 0.2Kg | ||
Size | L145xW53xH16.5mm |
Mechanical Specification
MCB recommendation
When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
MCB Type | Level | The number of LED Driver |
C type | 10A | 9 |
13A | 11 | |
16A | 14 | |
20A | 18 | |
25A | 23 | |
When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
MCB Type | Level | The number of LED Driver |
C type | 10A | 24 |
13A | 32 | |
16A | 40 | |
20A | 50 | |
25A | 62 |
Note:
1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ℃
2. The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.
Dimming Operation
Using two ways of dimming at the same time, you must be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;
Using one dimming ---TRIAC/Phase cut dimming
1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection
a phase /Triac dimmer or lighting system.
2. Working with forward phase /leading edge, MLV and Reverse phase /trailing edge, ELV, TRIAC dimmers or light system.
3. Min. loading is about 10%
Please try to use dimmers with power at least 1.5 times as the output power of the driver.

Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming
(The driver input is connected to the dimmer.)

Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming
(The driver is independently connected to the input.)
