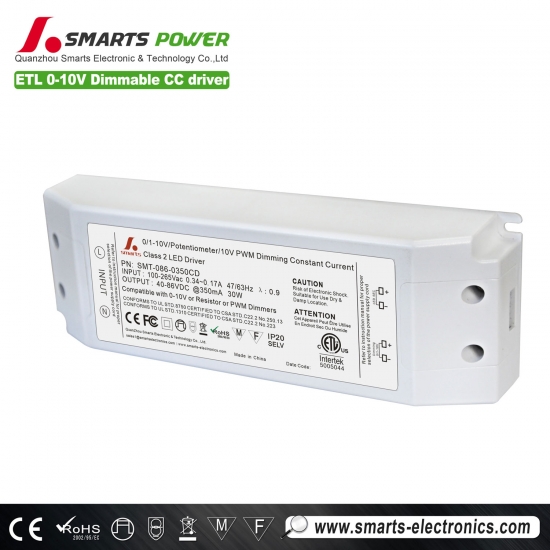

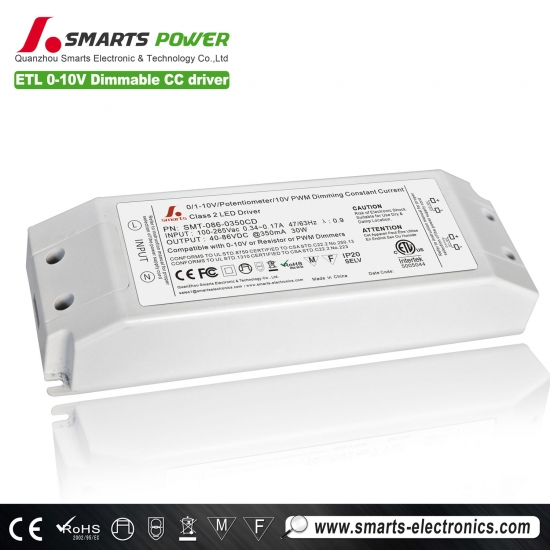

0-10v dimmable led driver 350ma 30w
Model
SMT-086-0350CD
SMT-050-0700CD
SMT-036-0900CD
SMT-025-1200CD
Output
DC Current
350mA
700mA
900mA
1200mA
Current Accuracy
±3%
Voltage Range
52-86V
30-50V
20-36V
15-25V
Rated power
30W
35W
32W
30W
Input
Voltage Range
100～265VAC
Frequency Range
47～63HZ
PF(Typ.）
PF>0.9 5
Full Load Efficiency（Typ）
>86%
>87%
>87%
>86%
AC Current (Typ.）
0.16A@220V
0.19A@220V
0.18A@220V
0.16A@220V
Leakage current
﹤0.7mA/110-220VAC
Protection
Short Circuit
Protection type: Hiccup mode, recovers automatically after fault
condition is removed
Over voltage
≦280VAC
Over temperature
100℃±10℃ shut down o/p voltage, re-power on to recover
Environme
Working TEMP.
-40～+50℃
Working Humidity
20～95%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13. IP20
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation resistance
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
Compliance to EN55015,EN61000-3-2 (≧50%Load)
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry
level
Others
Weight
0.4Kg
Size
180*60*35mm（L*W*H）
packing
355*215*215mm/20pcs /CTN
Notes
1. All parameters NOT specially mentioned are measured at 110v~220VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted
pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
Features
Input range :100-265VAC
Built-in PFC function
Efficiency > 84% / PF>0.90
Protections:Short circuit/over Voltage
Fully isolated plastic cover
Easy installation
Cooling by free air convection
Work with leading edge and trailing edge TRIAC dimmers
Strong compatibility, flicker-free dimming
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting
3 years warranty
Lifespan:(MTBF)50,000 hours
Protection
Short Circuit: Hiccup mode, recovers automatically after fault condition
Over voltage: <270VAC 0r =270VAC
Environment parameter:
Working temperature: -40~+60℃
Working humidity:20~90%RH,non-condensing
Storage TEM.,Humidity: -40~+80℃,10~95%RH
TEMP.coefficient: ±0.03%/℃(0~50℃)
Vibration: 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
Safety &EMC
Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
Withstand Voltage : I/P-O/P: 3000KVAC
Isolation Resistance : I/P-O/P:100M Ohms/500VDC
EMC EMISSION: Compliance toEN55015,EN61000-3-2 (> or=50%load)

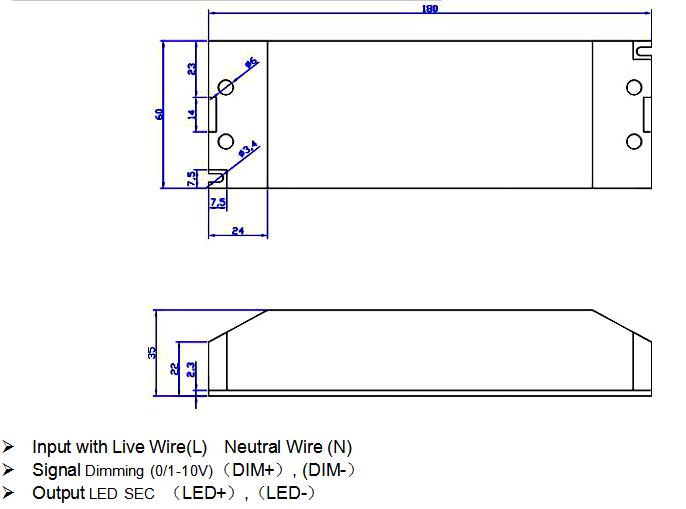

30~35W dimmable driver Mechanical Specification
