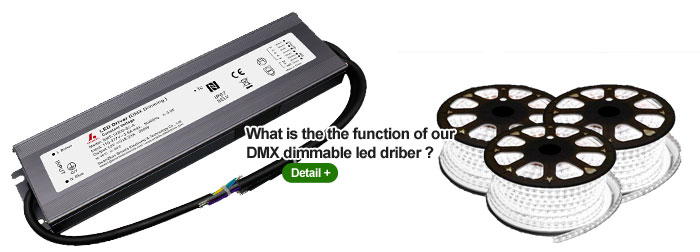

Since 2021, we are developing 30w~300w DMX dimmable led driver, 7 years warranty. And there are different channels to be chosen, 1CH, 2CH, 3CH, 4CH or 5CH to be uitable for intelligent LED lighting for all over the world.

There are the output cables to be connected to LED Light
DIM (DW) dimming:  Rubber cable
Black is output ( V+) Positive, White is output (V-) negative
CCT (TW) dimming:  1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, While (CW-) and Yellow (WW-) are output (V-) negative
RGB dimming:  1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, Red (R-), Green (G-) and Blue (B-) are output (V-) negative
RGBW dimming: 1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, Red (R-), Green (G-) ,Blue (B-) , White (W-) are output (V-) negative
RGB+CCT dimming: 1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, Red (R-), Green (G-) ,Blue (B-) , White (CW-) and Yellow (WW-) are output (V-) negative.;

Our DMX512 led driver has the dimming function: DMX512; DMX512 signal isolation.
The DMX dimmable power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
