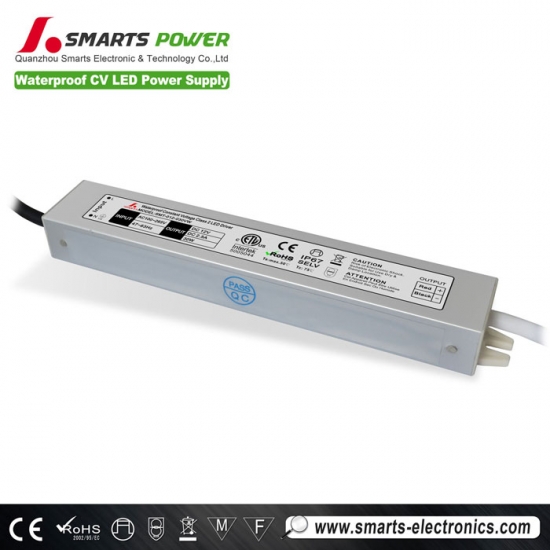

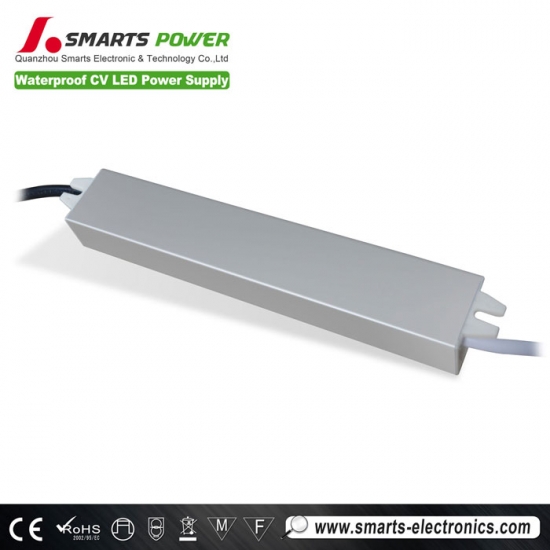

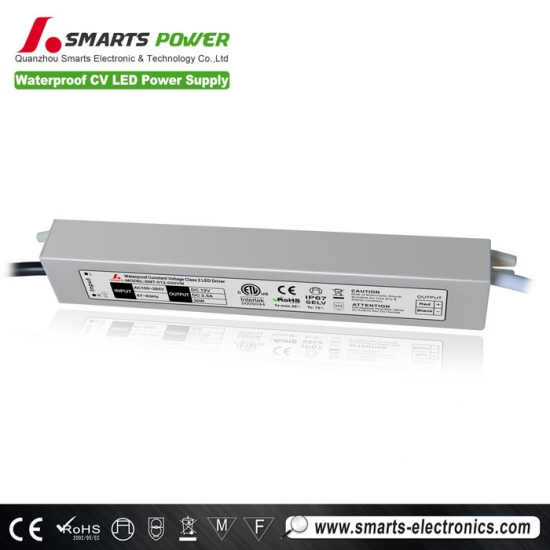

Waterproof ETL 12v 2.5a 30w intertek led power supply
Waterproof ETL 12v 2.5a 30w intertek led power supply is a constant voltage designed intertek power supply that can handle a universal AC input from 100 to 265Vac. This LED power supply is epoxy encapsulated with an IP67 level rating and can withstand a 1.5KVac surge input .
Features
Maximum load of 30 watts
Universal input voltage range
Constant output voltage
2-year guarantee
Complies with CLASS C from minimum to maximum load range according to EN 61000-3-2
High efficiency
Enclosed terminals for input and output cables
Overtemperature and overload protection
Short-circuit shutdown feature with automatic restart
Protection class II, SELV
Type of protection IP67
Aluminum casing
| SPECIFICAION | |||||
| MODEL | SMT-012-030WW | SMT-024-030VW | SMT-036-030VW | ||
| OUTPUT | DC VOLTAGE | 12V | 24V | 36V | |
| RATED CURRENT | 2.5Amp | 1.25Amp | 0.83Amp | ||
| CURRENT RANGE | 0~2.5A | 0~1.25A | 0~0.83A | ||
| RATED POWER | 30W | 30W | 30W | ||
| RIPPLE&NOISE(max) | 150mV | 150mV | 150mV | ||
| CURRENT TOLERANCE | ±0.5V | ±0.5V | ±0.5V | ||
| SETUP RISE TIME | 80ms/110,220VAC | 81ms/110,220VAC | 82ms/110,220VAC | ||
| HOLD UP TIME(Typ.) | 60ms/110-220VAC | 60ms/110-220VAC | 60ms/110-220VAC | ||
| INPUT | VOLTAGE RANGE | 100~265VAC | |||
| FREQUENCY RANGE | 50~60Hz | ||||
| POWER FACTOR(Typ.) | |||||
| EFFICIENCY(Typ.) | >83% | >83% | >83% | ||
| AC CURRENT(Typ.) | 3.5A/110,220VAC | 2.0A/110,220VAC | 1.5A/110,220VAC | ||
| INRUSH CURRENT (Typ.) | COLD START 50A/110~220VAC | ||||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | |||
| Overload | overload protected@145-160% above peak rating | ||||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||||
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | |||
| WORKING HUMIDITY | 20~99% RH non-condensing(Waterproof) | ||||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||||
| SAFETY&EMC | SAFETY STANDARDS | ETL/ROHS/CE Mark(EMC,LVD),IP67 | |||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC IP-GND:1.5KVAC | ||||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | ||||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | |||||
| NOTE | 1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature. | ||||
| 2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel | |||||
| 3.Tolerance:includes set up tolerance,line regulation and load regulation. | |||||
| Label |
 |
||||
 |
 |
 |
 |

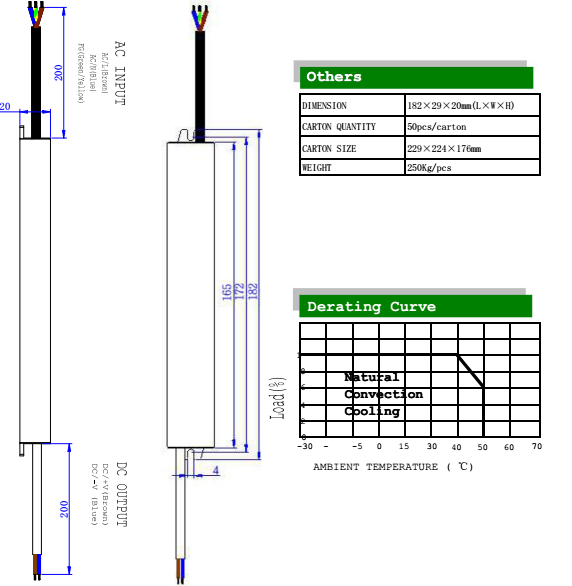

Mechanical Specification
- Cable Model of input : H03VV-F 3G0.75mm2
- Cable Model of output: H03VV-F 2*0.75mm2(red, black)
