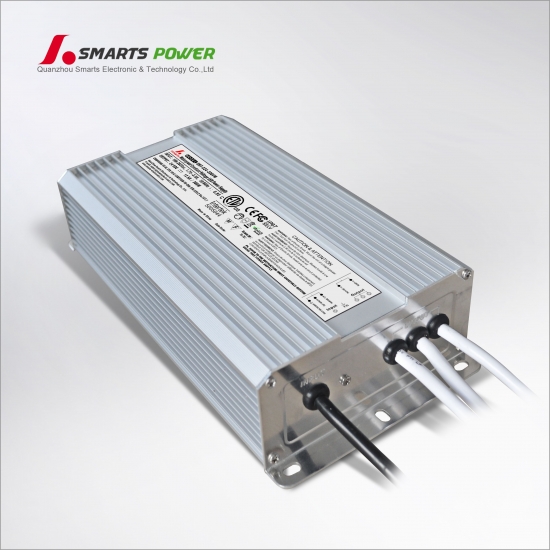

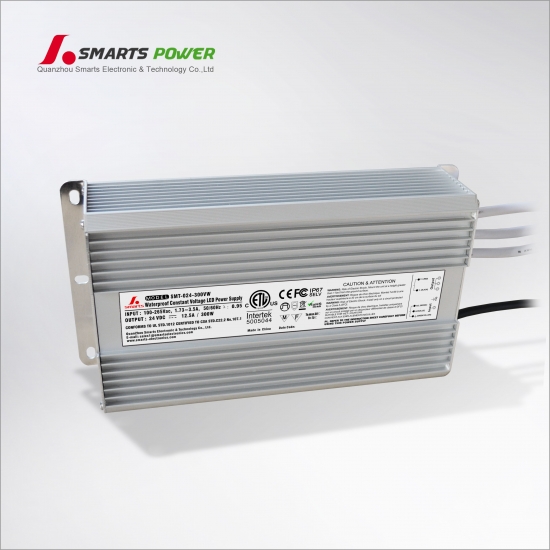

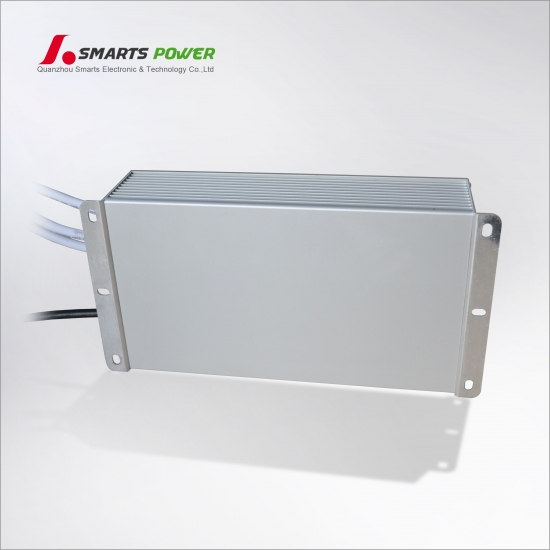

uninterruptible 300w power supply ac/dc
SPECIFICAION
MODEL
SMT-012-300VW
SMT-024-300VW
SMT-036-300VW
OUTPUT
DC VOLTAGE
DC12V
DC24V
DC36V
RATED CURRENT
25.00A
12.50A
8.33A
CURRENT RANGE
0-25.00A
0-12.50A
0-8.33A
RATED POWER
300 W
300W
300W
RIPPLE&NOISE(max)
150mV
150mV
150mV
CURRENT TOLERANCE
SETUP RISE TIME
80ms/220VAC
HOLD UP TIME(Typ.)
60ms/220VAC
INPUT
VOLTAGE RANGE
170~265VAC
FREQUENCY RANGE
50~60Hz
POWER FACTOR(Typ.)
PF0.6-0.8/220VAC
EFFICIENCY(Typ.)
﹥84%
﹥84%
﹥84%
AC CURRENT(Typ.)
1.85A/220VAC
INRUSH CURRENT (Typ.)
COLD START 50A/20VAC
PROTECTION
Short circuit
Protection type:recovers automatically after condition is removed
Overload
overload protected@145-160% above peak rating
Over temperature
Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT
WORKING TEMP.
-40~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY
20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY
-40~+80℃,10~99%RH
SAFETY&EMC
SAFETY STANDARDS
SELV,CE Mark(LVD),IP67
WITHSTAND VOLTAGE
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
EMC Test Standards
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE
1.All parameters NOT specially mentoned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
Features
-
IP67 design for indoor or outdoor installations
-
High efficiency,save energy ,protected environment.
-
High stability and low ripple, increase light efficiency and decrease light attenuation.
-
Meet to safety standard and EMC
-
Assure LED stability long lift and light efficiency by constant voltage.
-
Integrity protection,over loading, over voltage ,over current.
-
Cooling by free air convection
-
100% full load burn-in test.
-
Suitable for LED lighting
Environment
-
Working temp: -30~+50℃ (Refer to output load derating curve)
-
Working humidity: 20~99% RH non-condensing(Waterproof)
-
Storage temp. humidity: -40~+80℃,10~99%RH
Safety
-
Safety Standards : EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
-
Withstand Voltage : I/P-O/P:1.5KVAC IP-GND:1.5KVAC
-
Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Application
-
indoor LED illuminating lights, LED Neon
-
LED urban Decoration,LED Lighting Advertising
-
LED Display, Safety Protection Apparatus
-
Telecommunications, Networks
-
Vehicle Lights, Controller Panels
SPECIFICAION | |||||
MODEL | SMT-012-300VW | SMT-024-300VW | SMT-036-300VW | ||
OUTPUT | DC VOLTAGE | DC12V | DC24V | DC36V | |
RATED CURRENT | 25.00A | 12.50A | 8.33A | ||
CURRENT RANGE | 0-25.00A | 0-12.50A | 0-8.33A | ||
RATED POWER | 300 W | 300W | 300W | ||
RIPPLE&NOISE(max) | 150mV | 150mV | 150mV | ||
CURRENT TOLERANCE | |||||
SETUP RISE TIME | 80ms/220VAC | ||||
HOLD UP TIME(Typ.) | 60ms/220VAC | ||||
INPUT | VOLTAGE RANGE | 170~265VAC | |||
FREQUENCY RANGE | 50~60Hz | ||||
POWER FACTOR(Typ.) | PF0.6-0.8/220VAC | ||||
EFFICIENCY(Typ.) | ﹥84% | ﹥84% | ﹥84% | ||
AC CURRENT(Typ.) | 1.85A/220VAC | ||||
INRUSH CURRENT (Typ.) | COLD START 50A/20VAC | ||||
PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | |||
Overload | overload protected@145-160% above peak rating | ||||
Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||||
ENVIRONMENT | WORKING TEMP. | -40~+50℃ (Refer to output load derating curve) | |||
WORKING HUMIDITY | 20~99% RH non-condensing(Waterproof) | ||||
STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||||
SAFETY&EMC | SAFETY STANDARDS | SELV,CE Mark(LVD),IP67 | |||
WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC IP-GND:1.5KVAC | ||||
EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | ||||
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | |||||
NOTE | 1.All parameters NOT specially mentoned are measured at 220VAC input,rated load and 25℃ of ambient temperature. | ||||
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor. |
|||||
3.Tolerance:includes set up tolerance,line regulation and load regulation. |
