UL listed 12 volt led dimmable transformer 96w

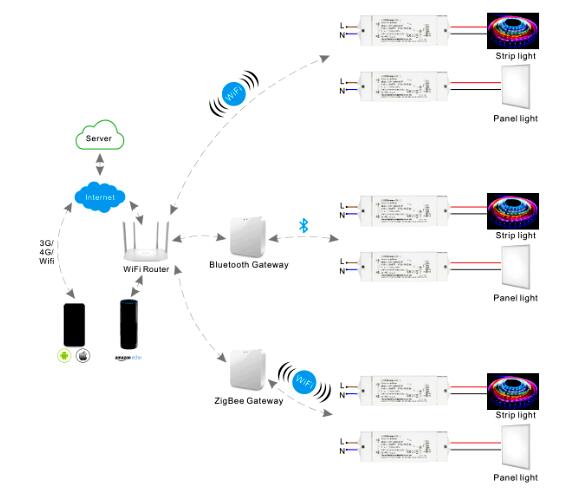

You can customize unique scenes according to temperature, humidity, weather, and sunrise sunset by our dimmable led drivers, and then the light will change automatically according to the condition that you set before from Nilight LED.
Specification
|
Model |
SMT-W-12096-YC-A |
|
|
Y=1 , 2, 3, 4, 5 for DIM (DW); CCT(TW); RGB; RGBW; RGBW+CCT (RGBCW) |
||
|
Output |
DC Voltage |
12V |
|
Voltage Tolerance |
±0.5V |
|
|
Voltage Regulation |
±0.5% |
|
|
Rated current |
CH1+CH2+CH3+CH4+CH5=4A |
|
|
Rated power |
96W |
|
|
Load Regulation |
±2% |
|
|
Input |
Voltage Range |
100-277VAC |
|
Frequency Range |
47 - 63Hz |
|
|
Power Factor（Typ.）@ full load |
PF≥0.98/ 230VAC (Full loading) |
|
|
THD（Typ.）@ full load |
<15% |
|
|
Efficiency（Typ.）@ full load |
89% @230VAC |
|
|
AC Current（Max.） |
1.25A |
|
|
Inrush Current （Typ.） |
53A (Twidth 250us measured at 50% I peak, COLD START, 230VAC) |
|
|
Leakage current |
<0.5mA |
|
|
Protection |
Short Circuit |
Hiccup mode, recover automatically after fault condition is removed |
|
Over Load |
≤120% ,hiccup mode, recover automatically after fault condition is removed |
|
|
Over temperature |
≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop |
|
|
Protection Class |
||
|
Environment |
Working TEMP. |
-40～+60℃ (see below derating curve) |
|
Working Humidity |
20 - 95%RH ,non-condensing |
|
|
Storage TEM.,Humidity |
-40 - +80℃，10 - 95%RH |
|
|
TEMP.coefficient |
±0.03%/℃（0 - 50℃） |
|
|
Vibration |
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
|
|
Safety & EMC |
Safety standards |
EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310 (US) |
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (EU) & I/P-O/P:1.5KVAC(US) |
|
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
|
|
EMC Emission |
EN55015 EN61000-3-2 EN61000-3-3 (EU) & FCC Part 15 B (US) |
|
|
EMC Immunity |
EN61000-4-2,3,4,5,6,11 EN61547 |
|
|
Others |
Net Weight |
0.90KG |
|
Dimension |

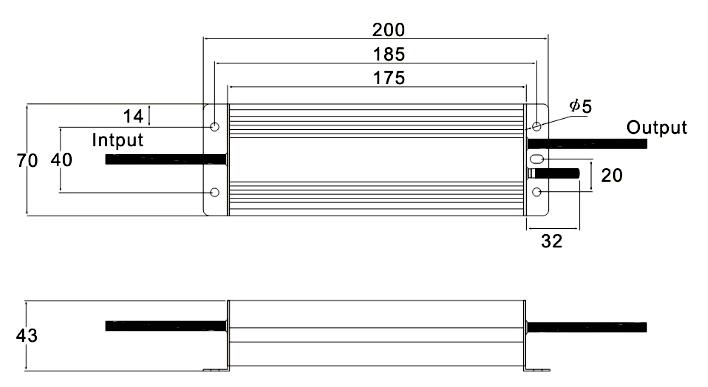

200*70*43mm (L*W*H) |
|
|
packing |
340*275*170mm/10PCS/CTN G.W.:11.3KG/CTN |
|
|
Notes |
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
|
 |
 |
 |
 |

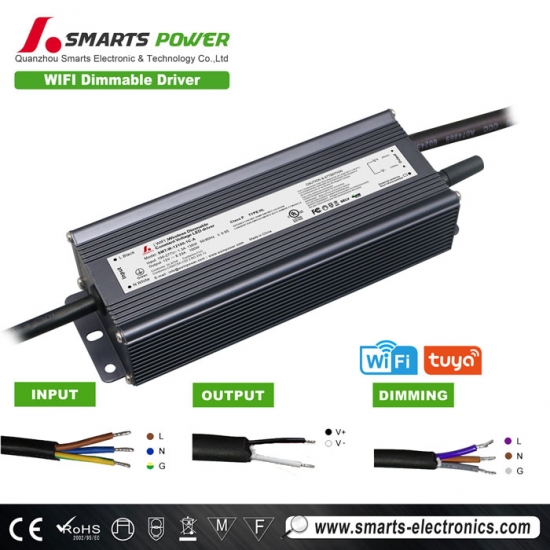

Mechanical Specification
Input terminal with 3P; Live Wire(L) , Neutral Wire (N) . Note: vacant for middle terminal
Suggested wire diameter: Primary 0.75-2.5mm² (18-14 AWG); Secondary 0.5-2.5mm² (20-14 AWG)
※Output terminals with 6P; LED SEC positive (LED+), LED negative (LED-). Connected to LED light; Common anode design
2P for DIM (DW) dimming;
3P for CCT (TW) dimming;
4P for RGB dimming;
5P for RGBW dimming;
6P for RGB+CCT dimming.
Dimming operation
Compatible with LED strips
It is easy installation for our dimmable led drivers and directly post it where you want to install, if it is installed on a non-smooth surface, we are equipped with fixing accessories.
