UL dali 2 dimmable 60 watt led driver push dimming 24volt power supply

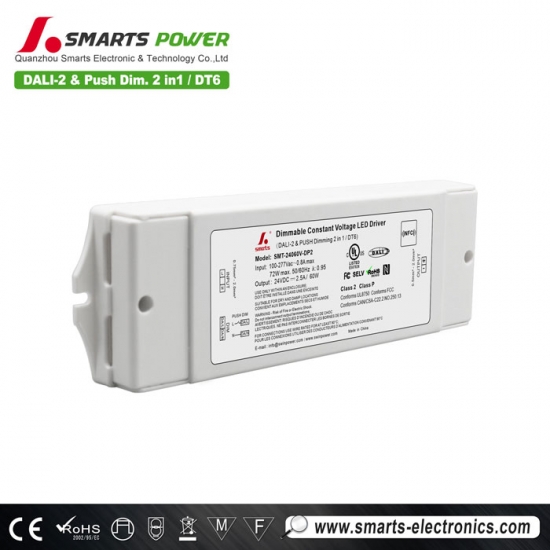

DALI-2 compliant dimmable ip20 LED power supply 60W delivers smooth and flicker-free dimming performance Suitable for lighting control in various entertainment venues

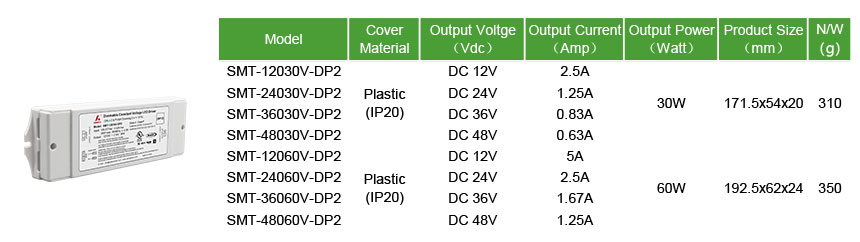

Specification
| Model | SMT-12060V-DP2 | SMT-24060V-DP2 | SMT-36060V-DP2 | SMT-48060V-DP2 | |
| Output | DC Voltage | 12V (12-13.5V adjust by NFC) | 24V (24-26V adjust by NFC) | 36V (36-38V adjust by NFC) | 48V (48-50V adjust by NFC) |
| Voltage Tolerance | ±0.2V | ||||
| Rated current | 5A | 2.5A | 1.67A | 1.25A | |
| Rated power | 60W | ||||
| Load Regulation | ±1% | ||||
| Input | Standby power consumption | ≤0.5W | ≤0.5W | ≤0.5W | ≤0.5W |
| Voltage Range | 100-277VAC | ||||
| Frequency Range | 47 - 63Hz | ||||
| Power Factor(Typ.)@ full load | PF≥0.98@120VAC PF≥0.95@230VAC PF≥0.92@277VAC (Full loading) | ||||
| THD(Typ.)@ full load | ≤15%@120VAC ; ≤15%@230VAC; ≤15%@277VAC | ||||
| Efficiency(Typ.)@ full load | 86%@120VAC; 88%@230VAC; 88%@277VAC; | ||||
| AC Current(Max.) | 0.8A | 0.8A | 0.8A | 0.8A | |
| Inrush Current (Typ.) | 20A, 220us@50%Ipeak (120VAC); 45A, 175us@50%Ipeak (230VAC);37A, 302us@50%Ipeak (277VAC) | ||||
| Leakage current | <0.5mA | ||||
| Protection | Short Circuit | Hiccup mode, recover automatically after fault condition is removed | |||
| Over Load | ≤120% ,hiccup mode, recover automatically after fault condition is removed | ||||
| Over temperature | Ambient temp. over 55℃±10℃, output will be off; recovers automatically after temp. drops. | ||||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |||
| Working Humidity | 20 - 90%RH,non-condensing | ||||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95%RH | ||||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||||
| Vibration | 10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||||
| Safety&EMC | Safety standards | EN61347-1 EN61347-2-13 (EU) & UL8750 (US) | |||
| Withstand voltage | I/P-O/P:3.75KVAC (EU); I/P-O/P:1.88KVAC (US) | ||||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH | ||||
| EMC Emission | EN55015 EN61000-3-2 EN61000-3-3 (EU)≥50% Load & FCC Part 15 B (US) | ||||
| EMC Immunity | EN61000-4-2,3,4,5,6 ,11, EN61547 | ||||
| Others | Weight | 0.35Kg | |||
| Dimension | 192.5x62x24mm(L*W*H) | ||||
| packing | 290*215*140mm (20PCS/CTN ) | ||||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC/230VAC input , rated load and 25℃of ambient temperature. | ||||
| 2. Tolerance: includes set up tolerance, line regulation and load regulation . | |||||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | |||||
 |
 |
 |
 |
Mechanical Specification

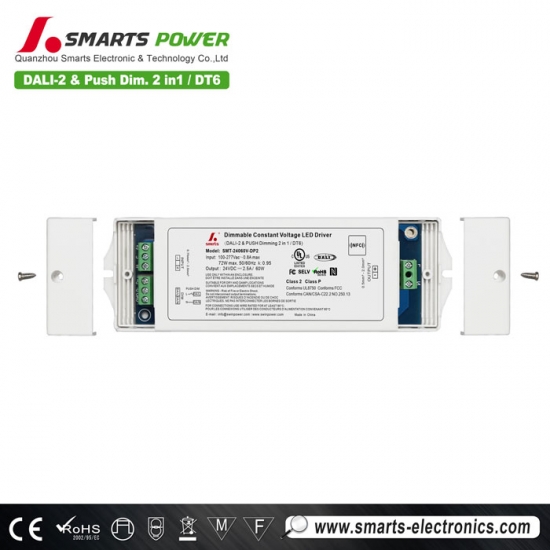

※Input with DG126 terminals 3P: Live Wire AC (L), Neutral Wire AC(N)
※Output LED SEC with DG126 terminals 2P: output Positive (LED+), output negative (LED-). Connected to LED Lamps.
※DALI or PUSH Dim. terminals with DG126 terminals 2P:
when DALI dimming, signal dimming DA1, DA2 ( No polar ) connected to the BUS of the DALI Master;
when PUSH dimming, (N) is connected to AC (N) while white (L) is connected to Push dim switch dimmer( L) ;
※Suggested wire diameter: Input 0.75-2mm2; Output:0.5-2mm2.
※Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
Note: there is external antenna at output side. Don't disassemble!
Dimming operation
Related Products
|

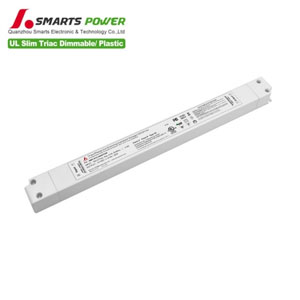

Mode：SMT-012-060VTSP intput voltage：100-277V AC
Size : 171.5*54*20mm |
