UL cUL DALI-2 dimmable rgbcw 12V 24V 36V 48V led strip driver 96W constant voltage power supply 1-5CH optional
dali 2 dimmable rgbcw led strip driver 96W Compatible with a wide range of RGBCW LED lighting fixtures, Enjoy the flexibility to adjust red, green, blue, cool white, and warm white colors individually for customized lighting effects.
Specification
Model
SMT-JB12096V-DP2-5C
SMT-JB24096V-DP2-5C
SMT-JB36096V-DP2-5C
SMT-JB48096-DP2-5C
Output
DC Voltage
12V(12-13.5V)
24V(24-26V)
36V(36-38V)
48V(48-50V)
Voltage Tolerance
±0.2V
Rated current
8.0A
4A
2.67A
2.0A
Rated power
96W
Load Regulation
2%
1%
1%
1%
Voltage Range
100-277VAC
Frequency Range
47 - 63Hz
Power Factor(Typ.)
PF≥0.99@120VAC PF≥0.98@230VAC PF≥0.95@277VAC (Full loading)
@ full load
THD(Typ.)@ full load
≤10%@120VAC ; ≤10%@230VAC; ≤15%@277VAC
Efficiency(Typ.)
87%@120VAC 89%@230VAC/277VAC
87%@120VAC 89%@230VAC/277VAC
89%@120VAC 90.5%@230VAC/277VAC
89%@120VAC 90.5%@230VAC/277VAC
AC Current(Max.)
1.2A
No-load power
1.15W(@120V)
1.00W(@120V)
1.10W(@120V)
1.17W(@120V)
Consumption(optional)
1.05W(@277V)
0.95W(@277V)
1.05W(@277V)
1.10W(@277V)
Standby power
0.20W(@120V)
0.25W(@120V)
0.20W(@120V)
0.20W(@120V)
Consumption(optional)
0.47W(@277V)
0.47W(@277V)
0.48W(@277V)
0.48W(@277V)
Inrush Current (Typ.)
23.2A, 50%, 360us @120VAC;
80A, 50% , 104us @230VAC
54A, 50% , 280us @277VAC
Leakage current
<0.5mA
Protection
Short Circuit
Hiccup mode, recover automatically after fault condition is removed
Over Load
≤120% ,hiccup mode, recover automatically after fault condition is removed
Over temperature
case temp. over 100℃±10℃,
output will be off; recovers automatically after temp. drops.
Environ-ment
Working TEMP.
-40 ~ +70℃ (see below derating curve)
Working Humidity
20 ~ 95%RH,non-condensing
Storage TEM.,Humidity
-40 ~ +80℃,10 ~ 95%RH
TEMP.coefficient
±0.03%/℃(0 ~ 50℃)
Vibration
10 ~ 500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety
&
EMC
Safety standards
UL8750(US) & UL1310
Withstand voltage
I/P-O/P:1.88KVAC I/P-FG:1.88KVac O/P-FG:1.88KVac
Isolation resistance
I/P-O/P:100MΩ/ 500VDC/ 25℃/ 70%RH
EMC Emission
FCC Part15 Subpart B;ANSI C63.4:2014
EMC Immunity
EN61000-4-2,3,4,5,6,11 EN61547
Others
Net Weight
0.83kg/pcs
Dimension
241*125*43mm (L*W*H)
packing
Qty: 20cs/ctn; G.W: 18kg/ctn; Ctn size:300*280*215mm
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
 |
 |
 |
 |

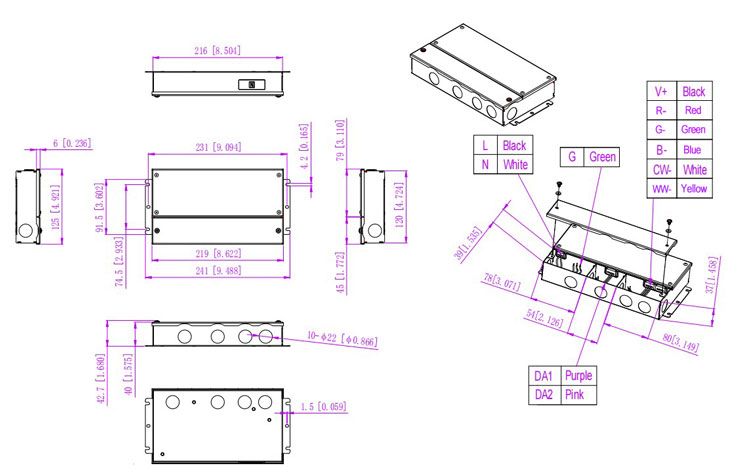

Mechanical Specification
※Input & Output wiring
※Input electronic cable 3*18AWG, the green cable connect with (FG) ,Black with AC (L), White with AC(N) (US);
※Output : 12V electronic cable 6*16AWG to be connected to LED Light;
24V electronic cable 6*18AWG to be connected to LED Light;
※Dimming cable

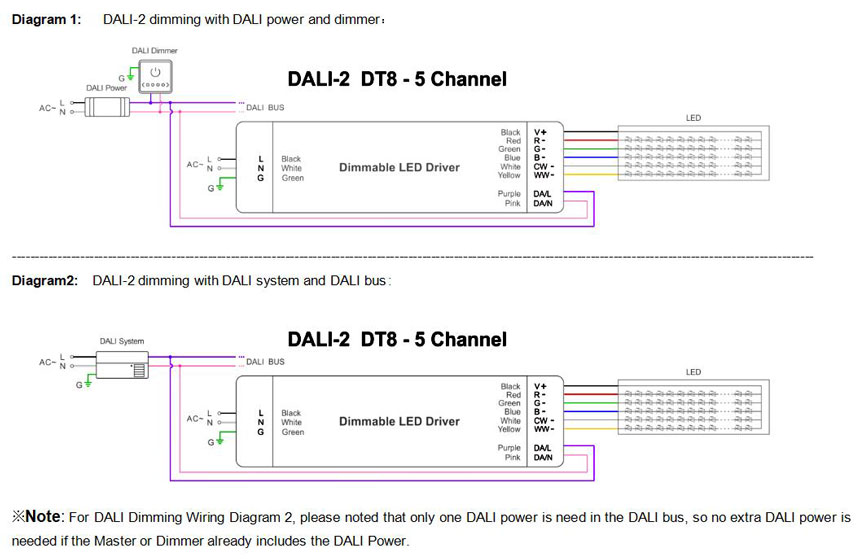

※Dimming electronic cable 2*18AWG, Pink DA/N and Purple DA/L (No polar) connected to the DALI BUS when use DALI function.
Pink (N) is connected to AC (N) while Purple (L) and pink (CCT Push )connected to CCT Push dim switch dimmer( L) when use Push function.
※Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
RGBW+CCT dimming: electronic cable, Black is output ( V+) Positive, Red (R-), Green(G-), Blue (B-), White(CW-) and Yellow (WW-) are output (V-) negative
Note: there is external antenna at output side. Don't disassemble!
Dimming operation
DALI-2 address setting Operation
※The default address for the DALI-2 LED driver is 001.
※Address settings device:
※Address settings:
① RDM setting address:
Set the address by the RDM device. For detailed operation, please refer to RDM device instruction manual.
② NFC setting address:
The DALI-2 led drivers’ address can be read and written by a mobile with NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the DALI-2 LED drivers.
■ Adjust output voltage Operation
※Adjust output voltage slightly for DALI-2 LED drivers
1) The driver output voltage can be read and written by a mobile with NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the DALI-2 LED drivers.
2) Voltage range: level 1~10, each level is 0.2V. The default output voltage level is 1.
|
Rated Vol. |
Level 1 |
Level 2 |
Level 3 |
Level 4 |
Level 5 |
Level 6 |
Level 7 |
Level 8 |
Level 9 |
Level 10 |
|
12V |
12.00V |
12.16V |
12.32V |
12.48V |
12.64V |
12.80V |
12.96V |
13.12V |
13.28V |
13.50V |
|
24V |
24.00V |
24.22V |
24.44V |
24.66V |
24.88V |
25.1V |
25.32V |
25.54V |
25.66V |
26.00V |
|
36V |
36.00V |
36.22V |
36.44V |
36.66V |
36.88V |
37.10V |
37.32V |
37.54V |
37.66V |
38.00V |
|
48V |
48.00V |
48.44V |
48.44V |
48.66V |
48.88V |
49.10V |
49.32V |
49.54V |
49.66V |
50.0V |
■ How to set the DALI-2 CV LED driver address by the NFC app or NFC device ?
Simple operation about DALI-2 LED driver address reset and adjusting output voltage slighting by a mobile with NFC APP (set NFC) or NFC handheld device (NFC read & write device: NFC-RW)
Related Products
|

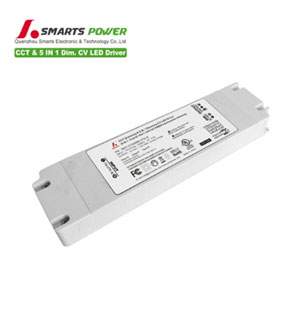

Mode：SMT-CV24096-VTD-S intput voltage：100-277VAC
