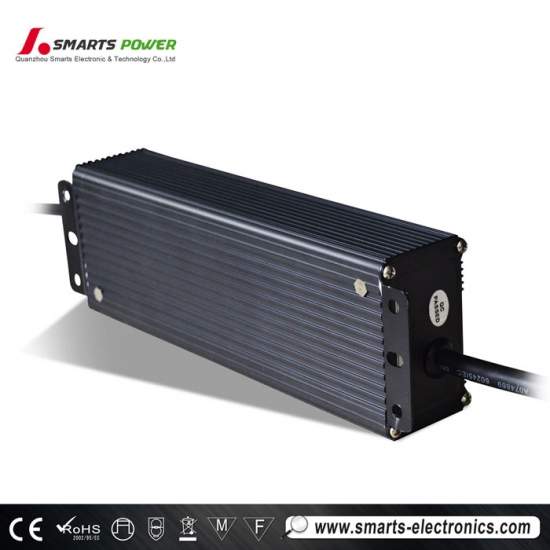

This 120w led driver features universal input range of 90-277 VAC and has integrated protection from short circuits, over current and over voltage as well as over temperature.
The iP67 led driver 12v provides a constant Voltage of 24V DC and feature two distinct ports for input and output: the 120V AC input (black wire) has 3 wire connections: one for the live wire (black), one for the neutral wire (white) and one for the ground (green). The 24V DC output (white wire) features 2 connections: one positive (red) and one negative (black).
Specifications for 120w led driver
|
model |
SMT-012-120V WN |
SMT-024-120V WN |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Rated current |
10.00A |
5.0A |
|
|
Rated power |
120W |
120W |
|
|
Input |
Voltage Range |
100~277V AC |
|
|
Frequency Range |
47～63HZ |
||
|
THD(Typ.) @full load |
<20% |
||
|
Power Factor ( Typ.） |
0.99@120VAC 0.98@277VAC |
0.98@120VAC 0.98@277VAC |
|
|
Full Load Efficiency(Typ.) |
>86% |
>86% |
|
|
AC Current（Typ.） |
1.71A/110VAC |
||
|
Inrush Current （Typ.） |
20A, 50%, 1.6ms@120VAC; 30A,50% 200us@230VAC; 25A,50%,1.2ms@277VAC |
||
|
Leakage current |
﹤0.5mA/110V |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
||
|
Over Loading |
≤120% constant current limiting, auto-recovery |
||
|
Over voltage |
≦140VAC(90~135V) , ≦270VAC(170~265V) |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750 |
|
|
Withstand voltage |
I/P-O/P:1.90KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
EMC IMMUNITY |
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level （surge4KV） |
||
|
Others |
Net Weight |
1.08Kg |
|
|
Size |
230*70*43mm（L*W*H） |
||
|
packing |
329*279*176mm , 10PCS/ctn |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
|

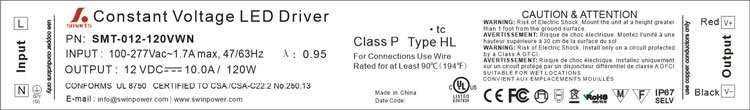

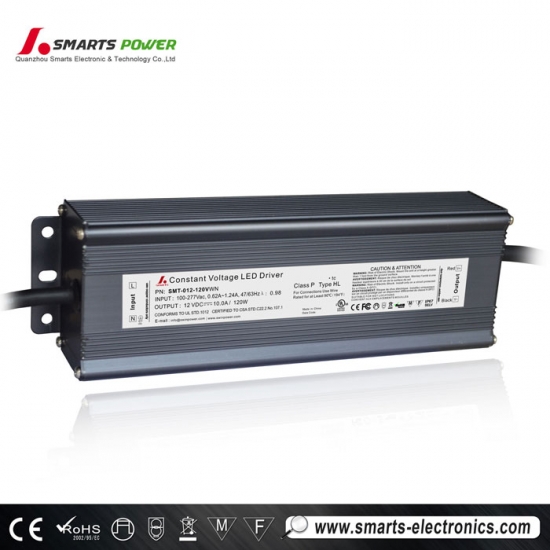

Label |
 |
||
 |
 |
 |
 |
Features for LED Driver Power Supply
Output constant voltage
Input voltage range 100-277VAC
Built-in PFC function, PF> 0.98, Efficiency > 87%
Protections:short circuit/over voltage/over heat
IP67 design for indoor or outdoor installations
Cooling by free air convection
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lightings.
7 years warranty
UL/cUL listed, Class P, Type HL approval

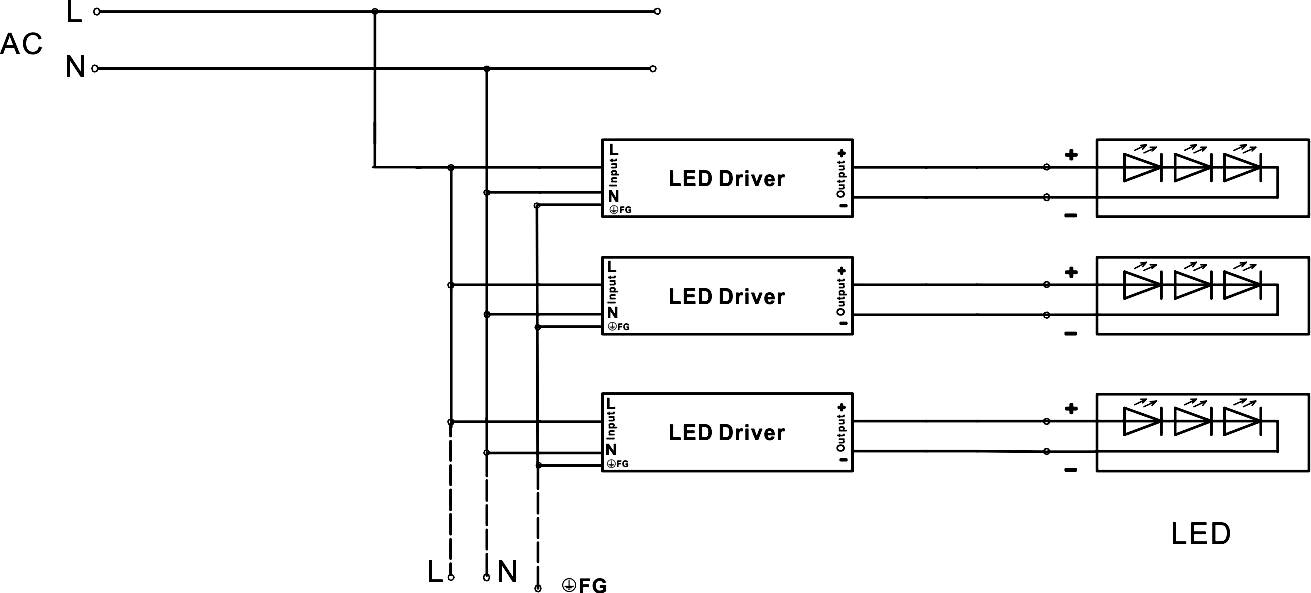

Connecting Diagram for led drivers for sale

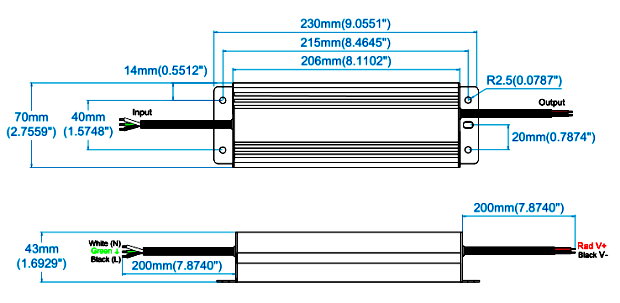

Mechanical Specification for led driver 12v
