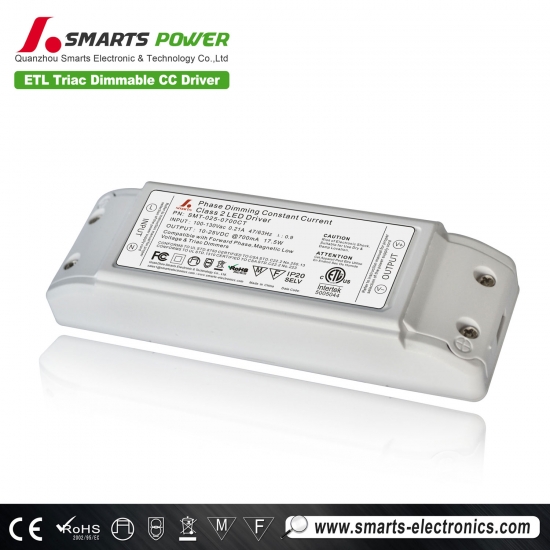

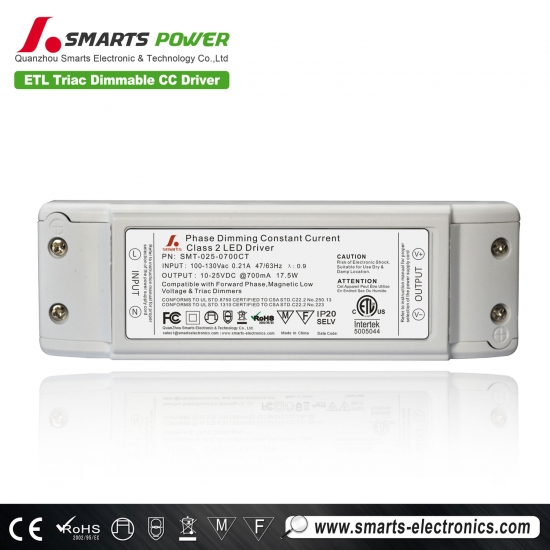

plastic cover LED driver 700mA triac dimmable power supply
Product parameters
|
Model |
Input voltage(vAC) |
Working Frequency (Hz) |
Output voltage (vDC) |
Output Current (A) |
Output power (W) |
Working Temp. |
Protection grade |
|
SMT-060-0320CT |
90-135V/ 170-265V |
47~63Hz |
45-60vDC |
320mA |
19W |
-25~50°C |
IP40 |
|
SMT-030-0500CT |
90-135V/ 170-265V |
47~63Hz |
15-30vDC |
500mA |
15W |
-25~50°C |
IP40 |
|
SMT-050-0350CT |
90-135V/ 170-265V |
47~63Hz |
30-50vDC |
350mA |
17.5W |
-25~50°C |
IP40 |
|
SMT-040-0500CT |
90-135V/ 170-265V |
47~63Hz |
20-40vDC |
500mA |
20W |
-25~50°C |
IP40 |
|
SMT-025-0700CT |
90-135V/ 170-265V |
47~63Hz |
10-25vDC |
700mA |
17.5W |
-25~50°C |
IP40 |
|
SMT-020-0900CT |
90-135V/ 170-265V |
47~63Hz |
10-20vDC |
900mA |
18W |
-25~50°C |
IP40 |
 |
 |
 |
 |
Features
- Case material: plastic case
- Cooling by free air convection
- 100% full load burn-in test
- High reliability
- Suitable for LED lighting and moving sign applications
Environment parameter
- Working temperature:-40 -80°C
- Store temperature:-40 -85°C
- Working humidity:10-90%
- Lifespan:(MTBF)50,000 hours
- Case machine specifications
- Case: plastic case
Product Features
- Universal AC input (90~135VAC, 170~ 265VAC)
- Protections: Short circuit/Overload/Over voltage/Over temp.
- Built-in active PFC function
- PF>0.90
- designing standard: Ul1310 Class 2 power unit
- Cooling by nature
- Suitable for dry location
- Suitable for LED lighting and moving sign applications
- Follow the global lighting safety regulations
Safety
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Application
- Outdoor LED illuminating lights
- LED Neon, LED City Decoration
- LED Lighting Advertising
- LED Display, Safety Protection Apparatus
- Telecommunications, Networks
- Vehicle Lights, Controller Panels
