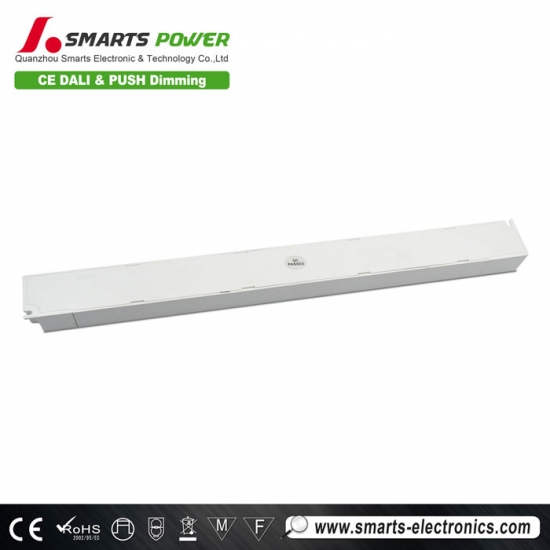

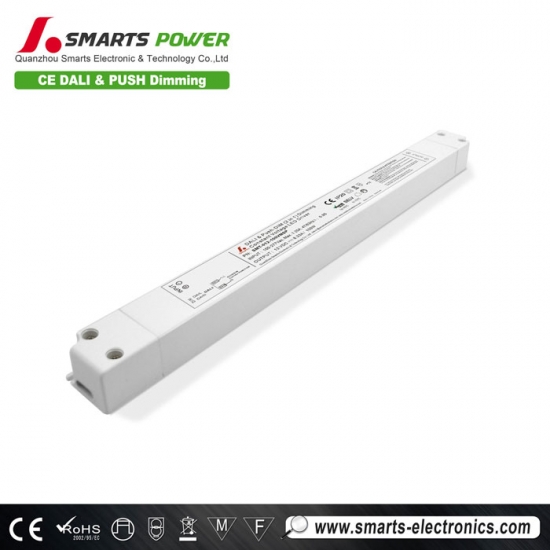

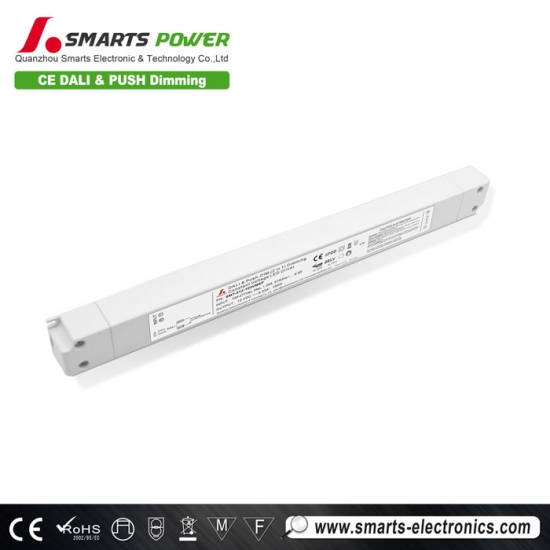

mr16 led driver dimmable 100w 96w for led lights
12v 100w dali dimmable drivers for led lights 100% full-load burn-in test, it is CE ROHS approval that suitale for European market. the wattage range are:30w-100w, Can be used with Planete leds RGB led strip SMD5050 very well.
Specification
model
SMT-012-100VMSP
SMT-024-096VMSP
Output
DC Voltage
12VDC
24VDC
Voltage Tolerance
±0.5V
±0.5V
Rated current
8.33Amp
4.0Amp
Rated power
100W
96W
Voltage Regulation
±0.5%
Load Regulation
±2%
±1%
Input
Voltage Range
100-277VAC
Frequency Range
47~63HZ
Power Factor(Typ.)@ full load
0.98@120VAC
0.98@120VAC
Efficiency(Typ.)@ full load(Typ.)
>88%
>88%
AC Current(Max.)
1.2A@100VAC
THD(Typ. ) @ full load
10%@120VAC
10%@120VAC
Inrush Current(Typ.)
4.1A (twidth=220us) @120VAC ; 35.2A (twidth=164us) @230VAC ;
12.8A (twidth=960us) @277VAC ;
Leakage current
<0.5mA
Protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition removed
Over Load
≤120% Hiccup mode ,recovers automatically after fault condition is removed or
shut down o/p voltage, re-power on to recover after fault condition removed
Protection Class
II
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling
Environment
Working TEMP.
-40~+60℃ (see below derating curve)
Working Humidity
20~95%RH,non-condensing
Storage TEM.,Humidity
-40~+80℃,10~95%RH
TEMP.coefficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13 (EU) and UL8750 (US)
Withstand voltage
I/P-O/P:3.75KVAC (EU) and I/P-O/P:1.88KVAC (US)
Isolation resistance
I/P-O/P:100M Ohms/500VDC/25℃/70%RH
EMC EMISSION
Compliance to EN55015, EN61000-3-2 (≥60%load) (EU) and FCC Part 15 (US)
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
Others
Net Weight
0.29Kg
Dimension
330*30*22mm(L*W*H)
packing
350*330*145mm/50PCS/CTN G.W.:15.5KG/CTN
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
 |
 |
 |
 |
Mechanical Specification
Derating Curve
Application
12v 24v led slim 100 watt driver is CE RoHS compliant and conforms to all EU safety standards. Our DALI dimmable LED drivers could drive Planete leds RGB led strip indoor use, and comtabile well with most of brands of dali dimmers (Brand: Lutron, Leviton,Clipsal, HDL, ABB, DALITEK etc.)
Related Products

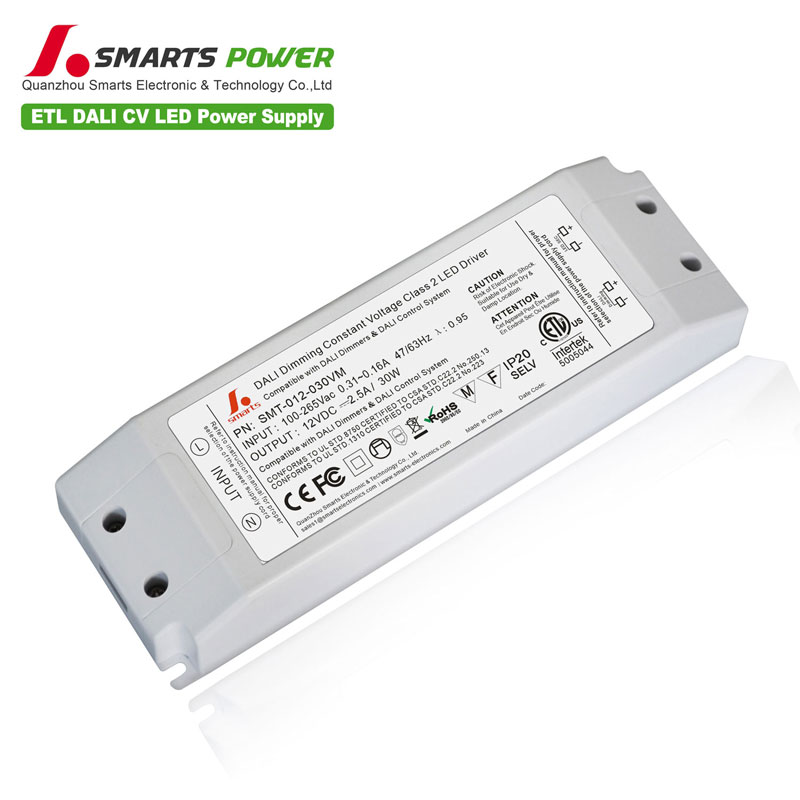

30w 12v dali dimmable led power supply for led strip lights, 5 years warranty, ETL,CE,FCC ,ROHS listed...
