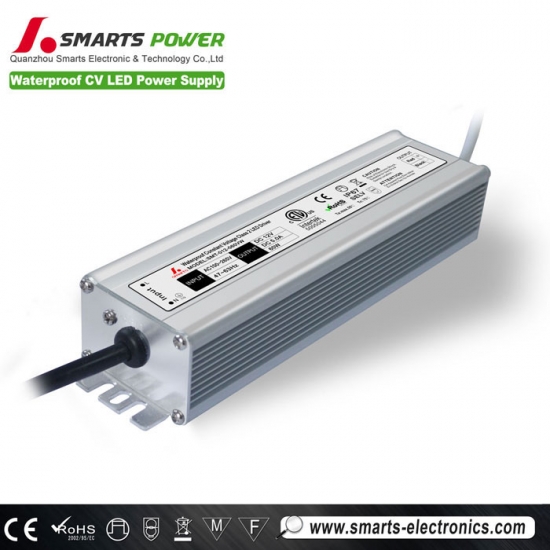

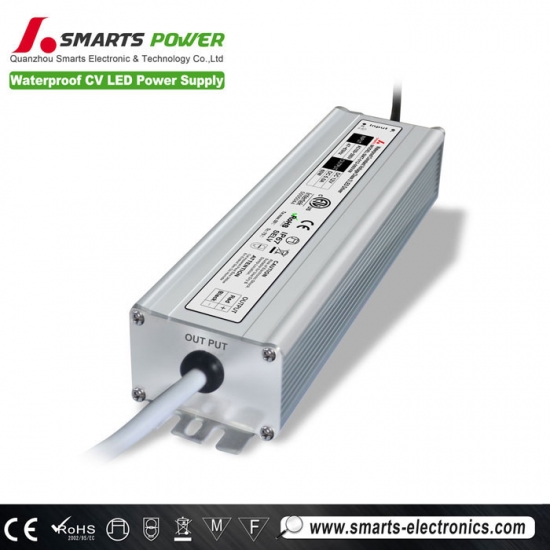

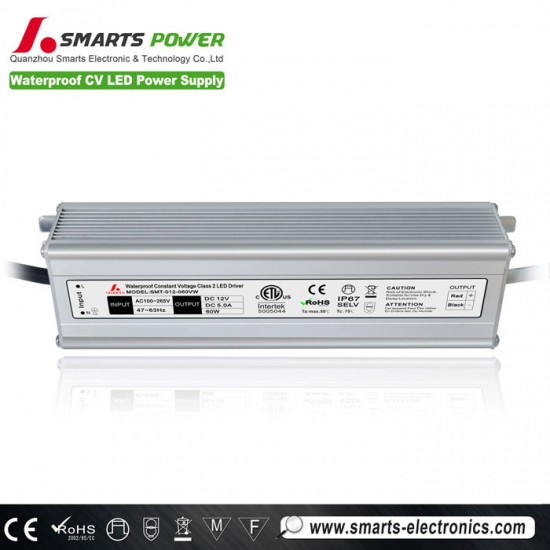

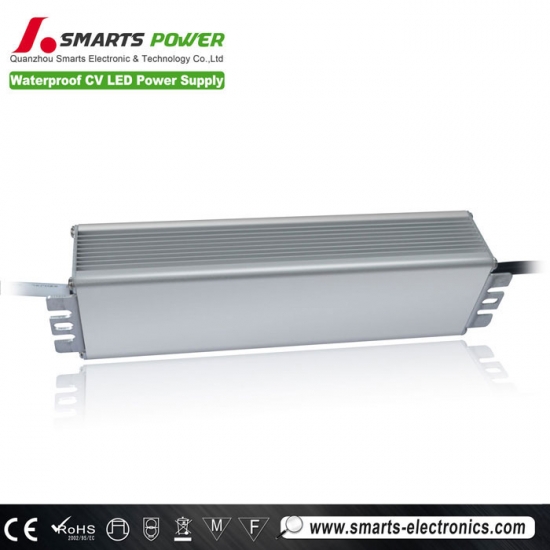

hot sale ultra slim 12v 24v 36v 60w waterproof electronic led driver

Hot sale ultra slim 12v 24v 36v 60w waterproof electronic led driver is steady current drivers that convert 100-130v/170-265v from your power socket down to low voltage 12 Volt which is needed to run most of your home LED, commercial or industrial lighting applications.

SPECIFICAION
MODEL		SMT-012-060VW	SMT-024-060VW	SMT-036-060VW
OUTPUT	DC VOLTAGE	12V	24V	36V
	RATED CURRENT	5.0A	2.5A	1.66A
	CURRENT RANGE	0~5.0A	0~2.5A	0~1.66A
	RATED POWER	60W	60W	60W
	RIPPLE&NOISE(max)	1.2V	1.2V	1.2V
	voltage TOLERANCE	12V±5%	24V±5%	36V±5%
	SETUP RISE TIME	80ms/110,220VAC	80ms/110,220VAC	80ms/110,220VAC
	HOLD UP TIME(Typ.)	60ms/110,220VAC	60ms/110,220VAC	60ms/110,220VAC
INPUT	VOLTAGE RANGE	90~135/170~265Vac	90~135/170~265Vac	90~135/170~265Vac
	FREQUENCY RANGE	50~60Hz	50~60Hz	50~60Hz
	POWER FACTOR(Typ.)
	EFFICIENCY(Typ.)	﹥84%	﹥84%	﹥84%
	AC CURRENT(Typ.)	0.5A/110V,220VAC	0.5A/110V,220VAC	0.5A/110V,220VAC
	INRUSH CURRENT (Typ.)	COLD START 30A/110,220VAC
PROTECTION	Short circuit	Protection type:recovers automatically after condition is removed
	Overload	overload protected@145-160% above peak rating
	Over temperature	Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT	WORKING TEMP.	-30~+50℃ (Refer to output load derating curve)
	WORKING HUMIDITY	20~99% RH non-condensing(Waterproof)
	STORAGE TEMP.,HUMIDITY	-40~+80℃,10~99%RH
SAFETY&EMC	SAFETY STANDARDS	UL, CE Mark(LVD),IP67
	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC  IP-GND:1.5KVAC
	EMC Test Standards	EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
		EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE	1.All parameters NOT specially mentoned are measured at 110VAC, 220VAC input,rated load and 25℃ of ambient temperature.
	2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
	3.Tolerance:includes set up tolerance,line regulation and load regulation.
Label

 Features of waterproof electronic led driver

60W Constant Voltage LED Driver, 12V & 5A Outputs

Universal input of 100-130v /170-265Vac

WITHSTAND VOLTAGE : I/P-O/P:1.5KVAC IP-GND:1.5KVAC

EMC Test Standards : EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006

EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006

Dimensions (LxWxH): 257x29x20mm

Outputs are available as either 12V DC or 24V DC or 36VDC and all include short circuit, overload and over-temperature protection. These drivers work over a wide temperature range with full operation at ambient temperatures (Ta) up to 50°C and a maximum case temperature (Tc) of 80°C.

The slim nature of these drivers makes them particularly suitable for applications where the driver needs to be inserted through a small aperture, such as the hole where a ceiling rose was previously fitted or in a coffer where the width is limited. In addition these drivers are also suited to standard applications .

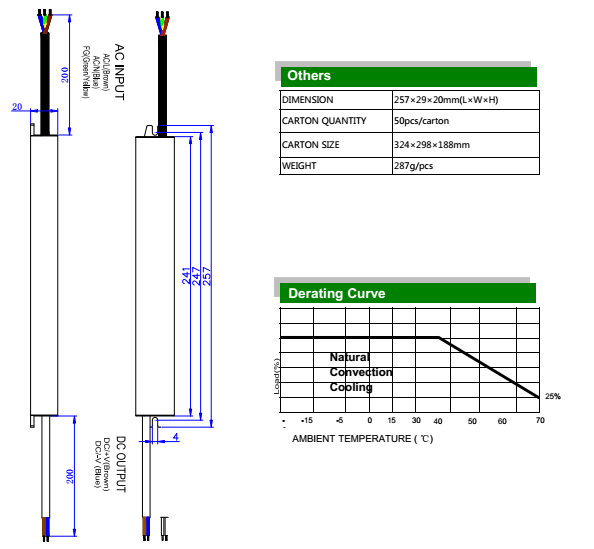

 Mechanical Specification of ultra slim led driver
