dali-2 & push intelligent dimmable constant voltage led drivers power supply 12v 300w manufacturers
dali-2 & push dimmable 300W led driver complies with DALI dimming protocol IEC62386, with a dimming range of 0.1~100%, intelligent dimming and color temperature adjustment function, which can meet the dimming needs in different scenes. With 7-year warranty
Specification
| Model | SMT-JB12300V-DP2-5C | SMT-JB24300V-DP2-5C | SMT-JB36300V-DP2-5C | SMT-JB48300V-DP2-5C | |
| Output | DC Voltage | 12V(12-13.5V) | 24V(24-26V) | 36V(36-38V) | 48V(48-50V) |
| Voltage Tolerance | ±0.5V | ||||
| Rated current | 25.0A | 12.5A | 8.33A | 6.25A | |
| Rated power | 300W | ||||
| Voltage Regulation | 0.50% | ||||
| Load Regulation | 2% | 1% | 1% | 1% | |
| Input | Voltage Range | 100-277VAC | |||
| Frequency Range | 47 - 63Hz | ||||
| Power Factor(Typ.)@ full load | PF≥0.98@120VAC PF≥0.95@277VAC | ||||
| THD(Typ.)@ full load | ≤10%@120VAC ; ≤10%@230VAC; ≤15%@277VAC | ||||
| Efficiency(Typ.)@ full load |
90.0%@120VAC 91.6%277VAC |
90.4%@120VAC 93.8%277VAC |
89.6%@120VAC 92%277VAC |
90.4%@120VAC 92.8%277VAC |
|
| AC Current(Max.) | 3.4A | ||||
|
No-load power Consumption(optional) |
2.23W(@120V) 1.42W(@277V) |
2.31W(@120V) 1.57W(@277V) |
2.28W(@120V) | 2.25W(@120V) | |
|
Standby power Consumption(optional) |
0.3W(@120V) 0.45W(@277V) |
0.32W(@120V) 0.46W(@277V) |
0.35W(@120V) 0.45W(@277V) |
0.34W(@120V) 0.48W(@277V) |
|
| Inrush Current (Typ.) | 26A, 50%,104us @120VAC; 118A, 50% , 92us @277VAC | ||||
| Leakage current | <0.5mA | ||||
| Protection | Short Circuit | Hiccup mode, recover automatically after fault condition is removed | |||
| Over Load | ≤120% ,hiccup mode, recover automatically after fault condition is removed | ||||
| Over temperature | case temp. over 100℃±10℃,output will be off; recovers automatically after temp. drops. | ||||
| Environ-ment | Working TEMP. | -40 ~ +70℃ (see below derating curve) | |||
| Working Humidity | 20 ~ 95%RH,non-condensing | ||||
| Storage TEM.,Humidity | -40 ~ +80℃,10 ~ 95%RH | ||||
| TEMP.coefficient | ±0.03%/℃(0 ~ 50℃) | ||||
| Vibration | 10 ~ 500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||||
| Safety & EMC | Safety standards | UL8750(US) & UL1310 | |||
| Withstand voltage | I/P-O/P:1.8KVAC I/P-FG:1.8KVac O/P-FG:1.8KVac | ||||
| Isolation resistance | I/P-O/P:100MΩ/ 500VDC/ 25℃/ 70%RH | ||||
| EMC Emission | FCC Part15 Subpart B;ANSI C63.4:2014 | ||||
| EMC Immunity | EN61000-4-2,3,4,5,6,11 EN61547 | ||||
| Others | Net Weight | 1.2kg/pcs | |||
| Dimension | 316*125*40mm (L*W*H) | ||||
| packing | Qty: 20cs/ctn; G.W: 26.0kg/ctn; Ctn size: 350*300*215mm | ||||
| Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. | ||||
| 2. Tolerance: includes set up tolerance, line regulation and load regulation . | |||||
 |
 |
 |
 |

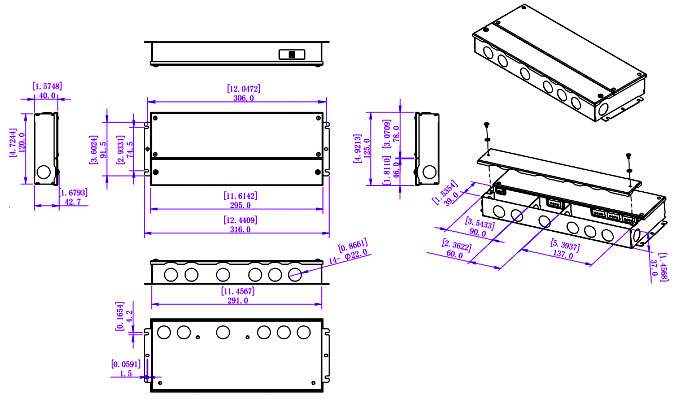

Mechanical Specification

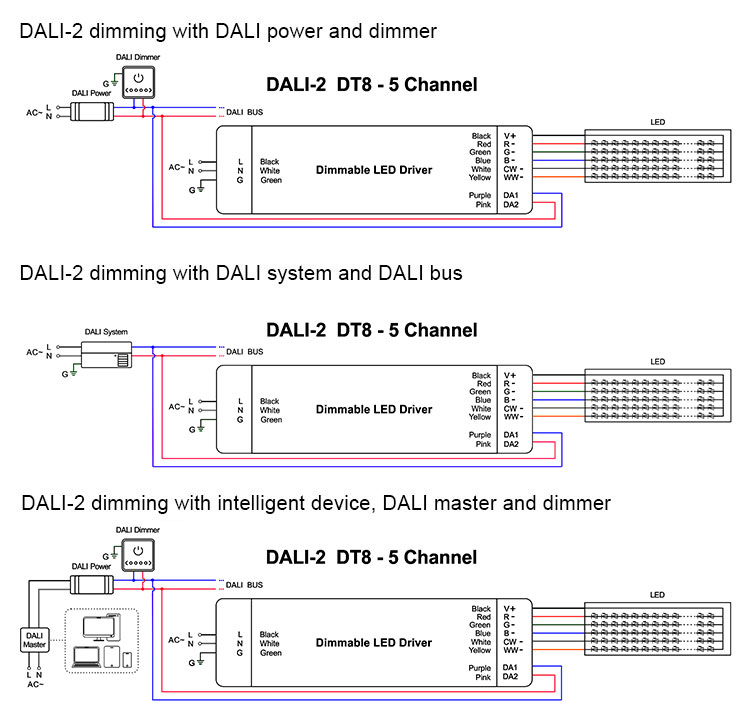

Dimming operation
※Note: For DALI Dimming Wiring Diagram 3, please noted that only one DALI power is need in the DALI bus, so no extra DALI power is needed if the Master or Dimmer already includes the DALI Power.
DALI-2 address setting Operation
※The default address for the DALI-2 LED driver is 001.
※Address settings device:
※Address settings:
① RDM setting address:
Set the address by the RDM device. For detailed operation, please refer to RDM device instruction manual.
② NFC setting address:
The DALI-2 led drivers’ address can be read and written by a mobile with NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the DALI-2 LED drivers.
■ Adjust output voltage Operation
※Adjust output voltage slightly for DALI-2 LED drivers
1) The driver output voltage can be read and written by a mobile with NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the DALI-2 LED drivers.
2) Voltage range: level 1~10, each level is 0.2V. The default output voltage level is 1.
|
Rated Vol. |
Level 1 |
Level 2 |
Level 3 |
Level 4 |
Level 5 |
Level 6 |
Level 7 |
Level 8 |
Level 9 |
Level 10 |
|
12V |
12.00V |
12.16V |
12.32V |
12.48V |
12.64V |
12.80V |
12.96V |
13.12V |
13.28V |
13.50V |
|
24V |
24.00V |
24.22V |
24.44V |
24.66V |
24.88V |
25.1V |
25.32V |
25.54V |
25.66V |
26.00V |
|
36V |
36.00V |
36.22V |
36.44V |
36.66V |
36.88V |
37.10V |
37.32V |
37.54V |
37.66V |
38.00V |
|
48V |
48.00V |
48.44V |
48.44V |
48.66V |
48.88V |
49.10V |
49.32V |
49.54V |
49.66V |
50.0V |
■ How to set the DALI-2 CV LED driver address by the NFC app or NFC device ?
Simple operation about DALI-2 LED driver address reset and adjusting output voltage slighting by a mobile with NFC APP (set NFC) or NFC handheld device (NFC read & write device: NFC-RW)
Related Products
|

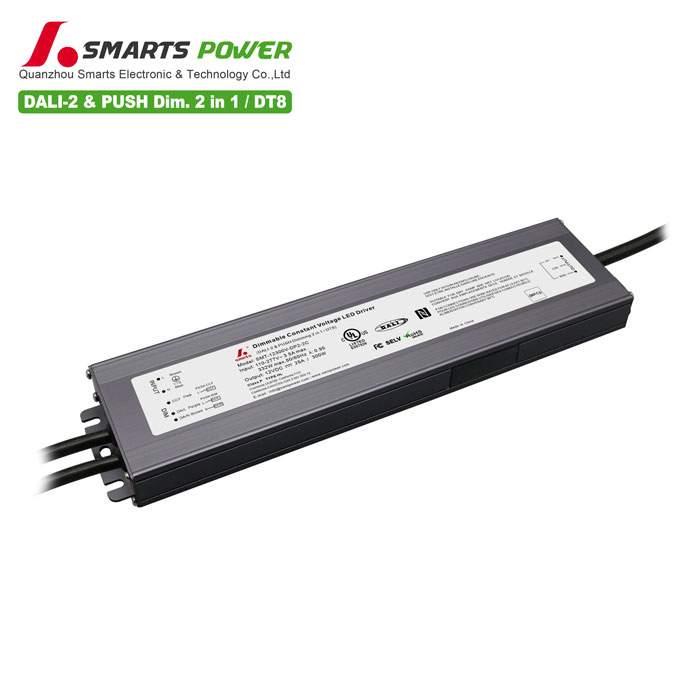

This DALI-2 & PUSH intelligent dimmable 300W LED driver adopts aluminum housing design, which is easy and quick to install. The waterproof grade is IP67, and the housing is flame retardant, providing multiple safety protections for the lamp.
