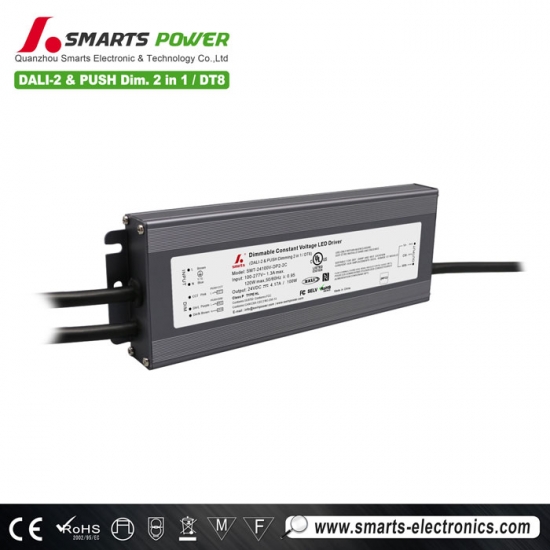

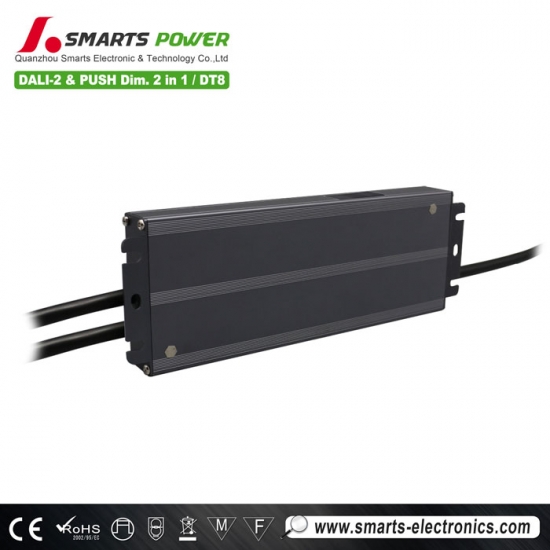

DALI 2 Push dimmable waterproof 24 volt led driver 100W ip67 ac dc led power supply NFC regulation

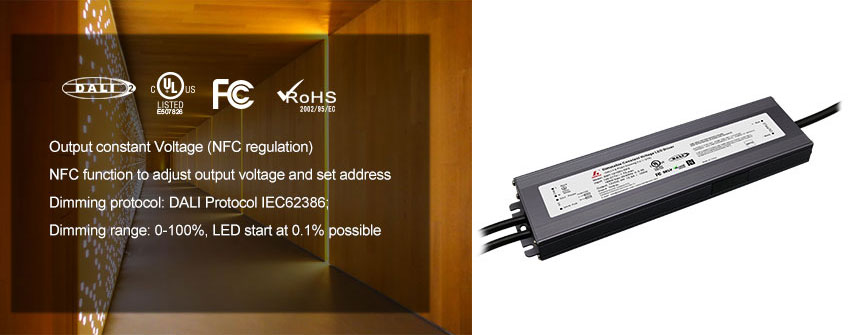

DALI 2 Push Dimmable 24v 100w LED Driver NFC function to adjust output voltage and set address. It features push dimming technology, enabling smooth and precise dimming control of constant voltage LED lighting.
Specification
| Model | SMT-12100V-DP2-2C | SMT-24100V-DP2-2C | SMT-36100V-DP2-2C | SMT-48100V-DP2-2C | |
| Output | DC Voltage | 12V(12-13.5V adjust by NFC) | 24V (24-26V adjust by NFC) | 36V (36-38V adjust by NFC) | 48V (48-50V adjust by NFC) |
| Voltage Tolerance | ±0.2V | ||||
| Rated current | 8.34A | 4.17A | 2.78A | 2.08A | |
| Rated power | 100W | ||||
| Load Regulation | 2% | 1% | 1% | 1% | |
| Input | Voltage Range | 100-277VAC | |||
| Frequency Range | 47 - 63Hz | ||||
| Power Factor(Typ.)@ full load | PF≥0.98@120VAC PF≥0.96@230VAC PF≥0.95@277VAC (Full loading) | ||||
| THD(Typ.)@ full load | ≤10%@120VAC ; ≤10%@230VAC; ≤15%@277VAC | ||||
| Efficiency(Typ.)@ full load | 86%@120VAC 89%@230VAC/277VAC | ||||
| AC Current(Max.) | 1.3A | 1.3A | 1.3A | 1.3A | |
| Standby power consumption |
0.20W(@120V) 0.39W(@230V) 0.47W(@277V) |
0.25W(@120V) 0.42W(@230V) 0.47W(@277V) |
0.20W(@120V) 0.43W(@230V) 0.48W(@277V) |
0.20W(@120V) 0.43W(@230V) 0.48W(@277V) |
|
| Inrush Current (Typ.) | 23.2A, 50%, 360us @120VAC; 80A, 50% , 104us @230VAC54A, 50% , 280us @277VAC | ||||
| Protection | Short Circuit | Hiccup mode, recover automatically after fault condition is removed | |||
| Over Load | ≤120% ,hiccup mode, recover automatically after fault condition is removed | ||||
| Over temperature | Ambient temp. over 55℃±10℃, output will be off; recovers automatically after temp. drops. | ||||
| Environment | Working TEMP. | -40 ~ +70℃ (see below derating curve) | |||
| Working Humidity | 20 ~ 95%RH,non-condensing | ||||
| Storage TEM.,Humidity | -40 ~ +80℃,10 ~ 95%RH | ||||
| TEMP.coefficient | ±0.03%/℃(0 ~ 50℃) | ||||
| Vibration | 10 ~ 500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||||
| Safety&EMC | Safety standards | EN61347-1 EN61347-2-13(EU) & UL8750(US) | |||
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU)I/P-O/P:1.80KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (US) | ||||
| Isolation resistance | I/P-O/P:100MΩ/ 500VDC/ 25℃/ 70%RH | ||||
| EMC Emission | EN55015 EN61000-3-2 EN61000-3-3 (EU)≥50% Load & FCC Part 15 B (US) | ||||
| EMC Immunity | EN61000-4-2,3,4,5,6,11 EN61547 | ||||
| Others | Weight | 0.83KG | |||
| Dimension | 231*78*25.1mm (L*W*H) | ||||
| packing | 355*300*170mm/20PCS/CTN G.W.:18KG/CTN | ||||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC/230VAC input , rated load and 25℃of ambient temperature. | ||||
| 2. Tolerance: includes set up tolerance, line regulation and load regulation . | |||||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | |||||
 |
 |
 |
 |

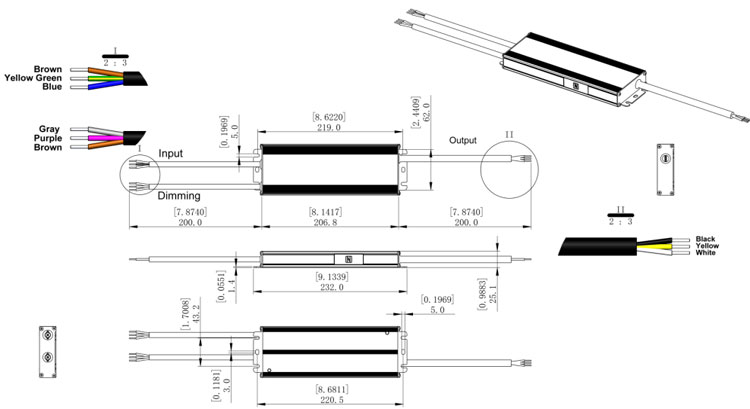

Mechanical Specification
※Input & Output wiring
※Input Rubber cable 3*1.0mm², the green/yellow cable connect with (FG) ,Brown with AC (L),Blue with AC(N) (EU);
Input SJOW Rubber cable 3*18AWG, the green cable connect with (FG) ,Black with AC (L), White with AC(N) (US);
※Output electronic cable 3*16AWG, to be connected to LED Light;
※Dimming cable
※Dimming electronic cable 3*18AWG, Brown DA/N and Purple DA/L (No polar) connected to the DALI BUS when use DALI function.
Brown (N) is connected to AC (N) while Purple (L) and Gray (CCT Push )connected to CCT Push dim switch dimmer( L) when use Push function.
※Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
※Note: Any other requests we can customize.
CCT (TW) dimming: electronic cable, Black is output ( V+) Positive, While (CW-) and Yellow (WW-) are output (V-) negative
Note: there is external antenna at output side. Don't disassemble!
Dimming operation
※Note: For DALI Dimming Wiring Diagram 3, please noted that only one DALI power is need in the DALI bus, so no extra DALI power is needed if the Master or Dimmer already includes the DALI Power.
