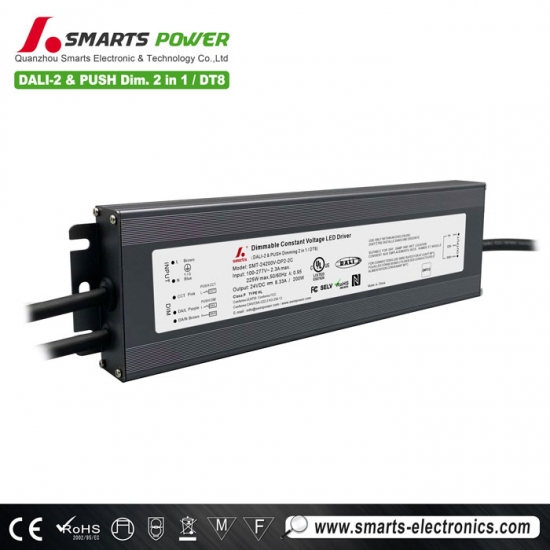

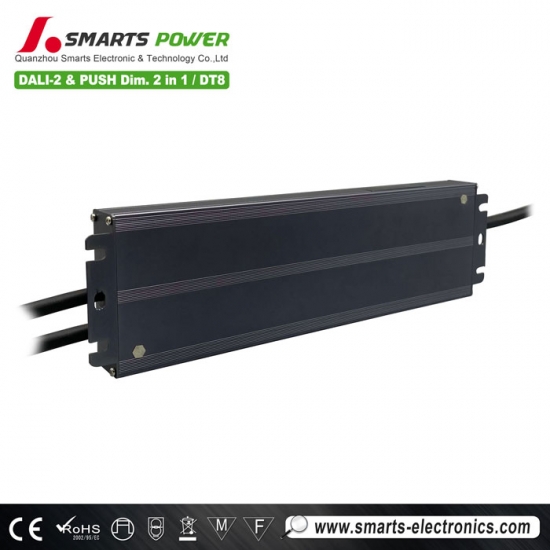

DALI 2 PUSH dimmable constant voltage 24V led driver 200W DT6 & DT8 Built with high-quality components and rigorous manufacturing standards.The driver is suitable for commercial spaces, offices, hospitality venues, and residential settings.
Specification
| Model | SMT-12200V-DP2-2C | SMT-24200V-DP2-2C | SMT-36200V-DP2-2C | SMT-48200V-DP2-2C | |
| Output | DC Voltage | 12V(12-13.5V adjust by NFC) | 24V (24-26V adjust by NFC) | 36V (36-38V adjust by NFC) | 48V (48-50V adjust by NFC) |
| Voltage Tolerance | ±0.2V | ||||
| Rated current | 16.67A | 8.34A | 5.56A | 4.17A | |
| Rated power | 200W | ||||
| Load Regulation | 2% | 1% | 1% | 1% | |
| Input | Voltage Range | 110-277VAC | |||
| Frequency Range | 47 - 63Hz | ||||
| Power Factor(Typ.)@ full load | PF≥0.98@120VAC PF≥0.96@230VAC PF≥0.95@277VAC (Full loading) | ||||
| THD(Typ.)@ full load | ≤10%@120VAC ; ≤10%@230VAC; ≤15%@277VAC | ||||
| Efficiency(Typ.)@ full load | 89%@120VAC 91%@230VAC/277VAC | ||||
| AC Current(Max.) | 2.1A | 2.1A | 2.1A | 2.1A | |
| Standby power consumption |
0.30W(@120V) 0.43W(@230V) 0.48W(@277V) |
0.25W(@120V) 0.42W(@230V) 0.48W(@277V) |
0.28W(@120V) 0.43W(@230V) 0.49W(@277V) |
0.29W(@120V) 0.44W(@230V) 0.49W(@277V) |
|
| Inrush Current (Typ.) | 38.4A, 50%, 510us @120VAC; 88A, 50% , 120us @230VAC;48A, 50% , 560us @277VAC | ||||
| Protection | Short Circuit | Hiccup mode, recover automatically after fault condition is removed | |||
| Over Load | ≤120% ,hiccup mode, recover automatically after fault condition is removed | ||||
| Over temperature | Ambient temp. over 55℃±10℃, output will be off; recovers automatically after temp. drops. | ||||
| Environment | Working TEMP. | -40 ~ +70℃ (see below derating curve) | |||
| Working Humidity | 20 ~ 95%RH,non-condensing | ||||
| Storage TEM.,Humidity | -40 ~ +80℃,10 ~ 95%RH | ||||
| TEMP.coefficient | ±0.03%/℃(0 ~ 50℃) | ||||
| Vibration | 10 ~ 500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||||
| Safety&EMC | Safety standards | EN 61347-1 EN 61347-2-13(EU) & UL 8750(US) | |||
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU)I/P-O/P:1.80KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (US) | ||||
| Isolation resistance | I/P-O/P:100MΩ/ 500VDC/ 25℃/ 70%RH | ||||
| EMC Emission | EN55015 EN61000-3-2 EN61000-3-3 (EU)≥50% Load & FCC Part 15 B (US) | ||||
| EMC Immunity | EN61000-4-2,3,4,5,6,11 EN61547 | ||||
| Others | Weight | 0.85KG | |||
| Dimension | 279*78*25.1mm (L*W*H) | ||||
| packing | 390x325x185mm 20PCS/CTN G.W.:18.5KG/CTN | ||||
| Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. | ||||
| 2. Tolerance: includes set up tolerance, line regulation and load regulation . | |||||
 |
 |
 |
 |
Mechanical Specification
※Input & Output wiring
※Input Rubber cable 3*1.0mm², the green/yellow cable connect with (FG) ,Brown with AC (L),Blue with AC(N) (EU);
Input SJOW Rubber cable 3*18AWG, the green cable connect with (FG) ,Black with AC (L), White with AC(N) (US);
※Output electronic cable 3*14AWG, to be connected to LED Light (12V output voltage);
Output electronic cable 3*16AWG, to be connected to LED Light (24~48V output voltage)
※Dimming cable
※Dimming electronic cable 3*18AWG, Brown DA/N and Purple DA/L (No polar) connected to the DALI BUS when use DALI function.
Brown (N) is connected to AC (N) while Purple (L) and Gray (CCT Push )connected to CCT Push dim switch dimmer( L) when use Push function.
※Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
CCT (TW) dimming: electronic cable, Black is output ( V+) Positive, While (CW-) and Yellow (WW-) are output (V-) negative
Note: there is external antenna at output side. Don't disassemble!

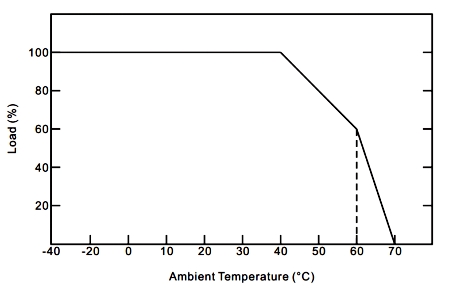

Derating Curve
※To extend their life, please refer to the Derating Curve and derate according to the temperature.

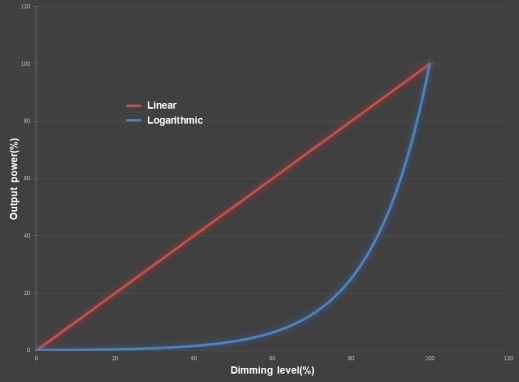

Dimming Curve
