Non-dimmable LED Driver
What kinds of regular constant voltage led driver do you do? Dec 27, 2018

Smarts have many dimmable and Non-dimmable LED Drivers power supplies for your LED projects. Following are some features may guide you know more about this:


constant voltage led driverconstant voltage led driverconstant voltage led driver


VW series(regular CV led driver):

Input Voltage: 100-265VAC/47-63Hz

Output Voltage: 12vdc and 24Vdc option

Output wattage: from 12W to 300W

Efficiency>82% for 12w to 72w

Efficiency>87% for 90w to 300w

PF>0.9 for 90w-300w PF>0.7 for 12w to 72w

working mode: constant voltage

Output type:single output

Case Material: Aluminum

Waterproof Rate: IP67

Warranty: 3 years for 90w to 300w/ 2 yeaers 12w-72w

protections:Short circuit/Over load/over voltage/over temp.

ETL, CE(EMC+LVD),ROHS approval. (ETL file# 5005044)


constant voltage led driverconstant voltage led driverconstant voltage led driver

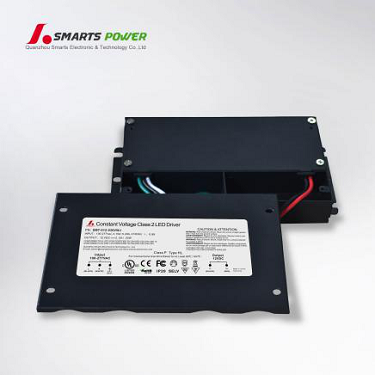

VWN(regular CV led driver):

Input: 110-277Vac 47-63Hz

Output voltage: 12Vdc and 24Vdc

Output wattage: from 30W to 250W

working mode:constant voltage type

Case Material: Aluminum

PFC:>0.95

Efficiency: >88%

Warranty:7 years

Certificate: UL,CE,ROHS (UL file# is E500089)


constant voltage led driverconstant voltage led driver

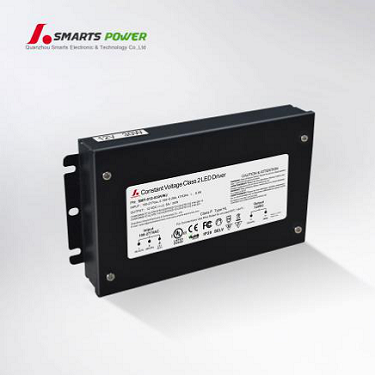

VWJ(regular CV led driver):

Input: 110-277Vac 47-63Hz

Output voltage: 12Vdc and 24Vdc

Output wattage: from 30W to 200W

working mode:constant voltage type

Case Material: Aluminum

PFC:>0.95

Efficiency: >88%

Warranty:7 years

Certificate: UL,CE,ROHS (UL file# is E500089)


constant voltage led driverconstant voltage led driver

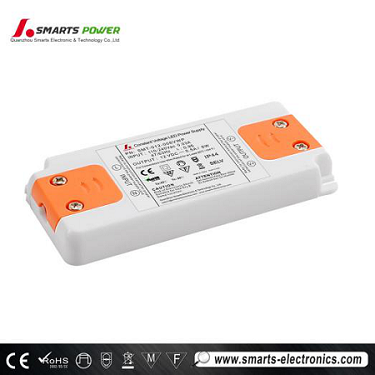

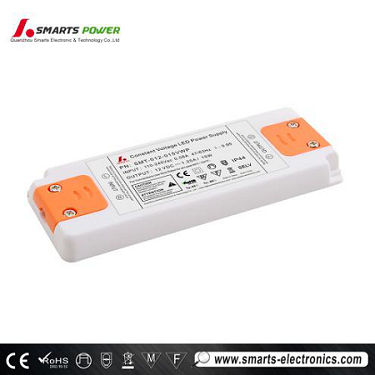

VWP(regular CV led driver):

Input Voltage: 100-240VAC/47-63Hz

Output Voltage: 12vdc and 24Vdc option

Output wattage: from 6W to 60W

working mode: constant voltage

Output type:single output

Case Material: Plastic

Waterproof Rate: IP20

Warranty: 2 years

protections:Short circuit/Over load/over voltage/over temp.

CE(EMC+LVD),ROHS approval.


constant voltage led driverconstant voltage led driver

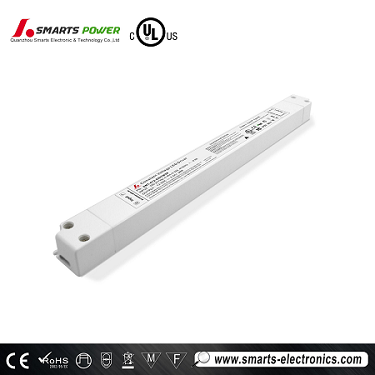

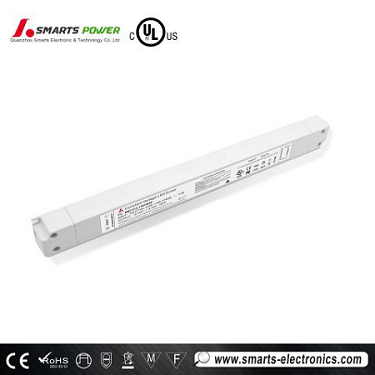

VWSW(IP67) and VWSP(IP20), (regular CV led driver)

Input: 110-277Vac 47-63Hz

Output voltage:12Vdc and 24Vdc

Output wattage: 30, 36, 60, 100watt

Dimming mode:triac dimmable

working mode:constant voltage type

Ultra slim type

Case Material: Aluminum IP67 and plastic IP20

PFC:>0.95

Efficiency: >88%

Warranty:7 years

Certificate: UL,CE,ROHS (UL file# is E500089)


Above are some product specification for Constant Voltage LED Driver, just feel free to let us know more your requirement then we will recommend you right models soon.
