Non-dimmable LED Driver
The knowledge for Smarts 0-10v dimmer Jan 11, 2021

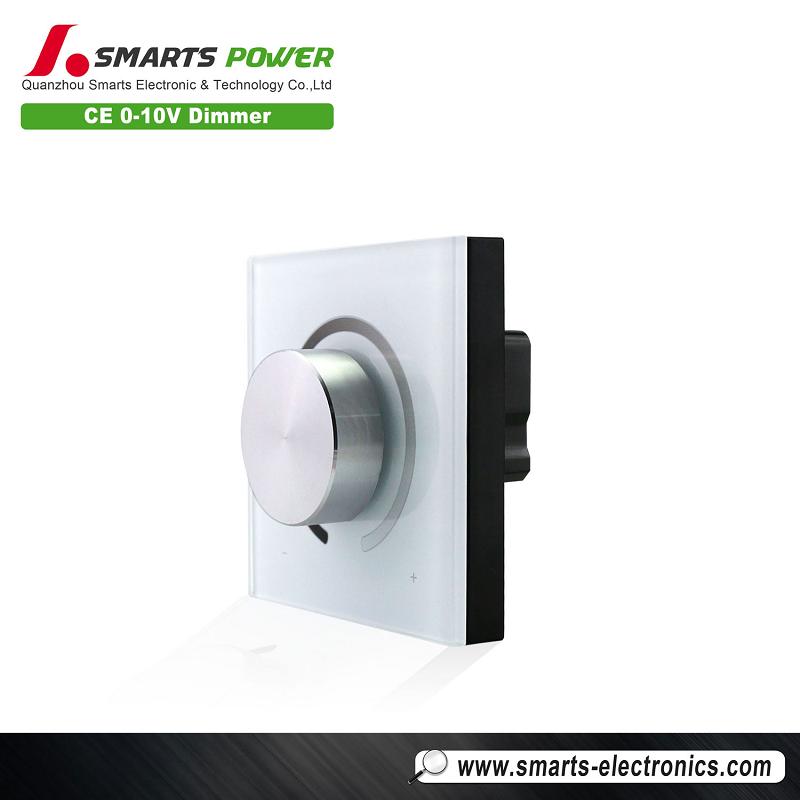

Knob version:SMT50-R-D1






1. Push-button switch, can be turned off or on at any brightness

2. With output LN port, the dimming power input can be powered from the dimmable led light switch, and the power input will be cut off at the same time after turning off the single dimmer switch

3. With fine-tuning output signal voltage, for signal lines that need to be stretched very long, you can increase the signal output voltage to avoid long-distance voltage drop

4. The output signal current is up to 50mA, which can control multiple dimming power supplies at the same time (such as the power supply from the dimmer, the power cannot exceed 300W)

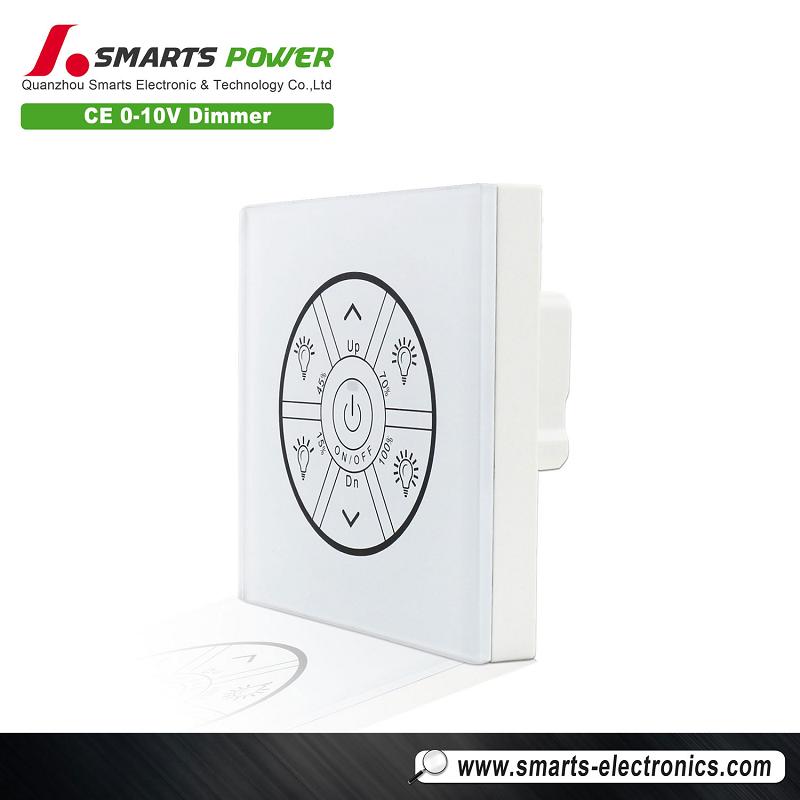

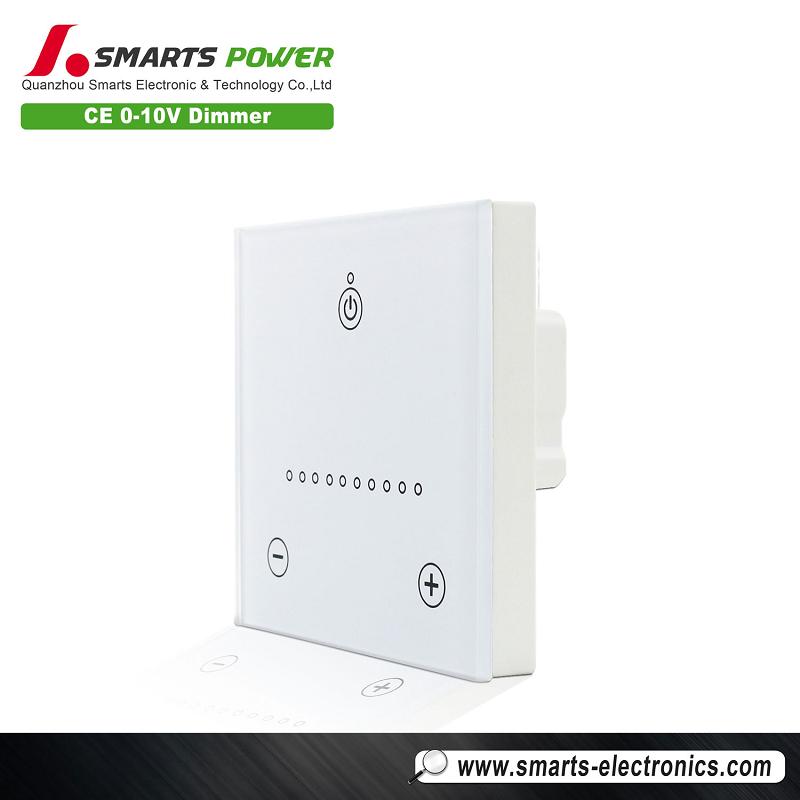

Touch version:






1. The output voltage can be set to 0-10V or 1-10V according to personal needs (see the specification for the combination of keys)

2. With 10 levels of brightness indicator

3. The output signal current reaches 50mA, which can control multiple 0-10V or 1-10V led touch dimmer switch at the same time








1. With a scene setting function, S1-S4 can save brightness according to user needs. The 0-10V dimmers on the market that are used alone have never seen this function.

2. The output signal current reaches 50mA, which can control multiple 0-10V or 1-10V dimming power supplies at the same time
