Non-dimmable LED Driver
Smarts Electronics offer three kinds of Dimmable LED Driver May 22, 2019
If you have a dimmable LED, then choose a dimmable driver or power supply can make the dimming come true.Smarts Electronics offer three kinds of Dimmable LED Driver. They are Triac Dimmable LED Driver, DALI Dimmable LED Driver, 0-10V/ PWM/Resistor 3 in 1 Dimmable LED Driver.

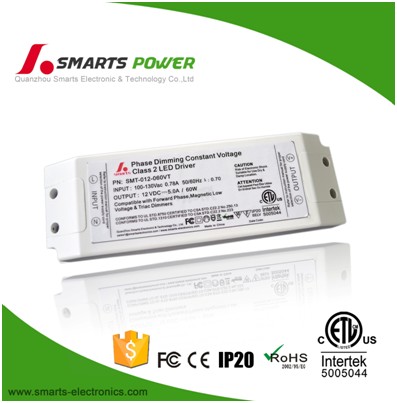

TRIAC Dimming: Triode for alternating current (TRIAC) dimming is used to control high-voltage dimmable power supplies. These dimmable power supplies work by varying the power on the AC input side of the power supply by means of a TRIAC dimmer. This change in power on the AC input side will vary the voltage on the DC output side and control the intensity of the LEDs. Triac Dimmable LED Drivers Smarts Electronics offers are workable for worldwide brand Lutron, Leviton etc.

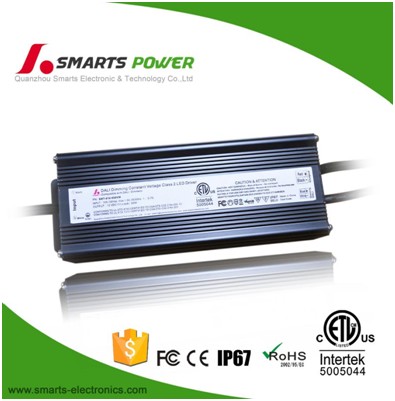

DALI Dimming: Digital Addressable Lighting Interface is described as a protocol for control of lighting equipment. DALI dimmable LED driver is suitable for all kinds of LED strips, down lamps, LED light bars,LED panel lamps, halogen lamps, MR16, ceiling lamps, spot lamps, etc. DALI dimmable LED driver is divided into constant current LED driver and constant voltage LED driver. DALI dimmable LED driver can realize 0-100% dimming for constant voltage LED lamps and constant current LED lamps. It is very energy saving. The efficiency of light source is changed with the change of resistor. As present in China, as people’s living standards improved, physical and spiritual life to be constantly enriched and enriched. So people has high requirements on their lights.


0-10 Volt Dimming: 0-10 volt dimming can be used to control dimmable power supplies. This type of dimming control is the most popular and newest style for compatible dimmable power supplies. 0-10V dimming control works by varying the voltage from 0 to 10 volts DC.

Pulse-Width Modulation Dimming: Pulse-width modulation (PWM) dimming can be used to control High Stability Dimmable Power Supplies. This type of dimming control adjusts the output current based on the duty cycle. Current will increase and the LEDs will be brighter.

Resistive Dimming: Resistive dimming can be used to control dimmable power supplies. The resistance can be fixed or variable. If a fixed level of dimming is required, a simple resistor is all that is needed to dim the LEDs to a particular level. If a varying dimmable level is desired, a potentiometer can serve this purpose. By changing the resistance value of the potentiometer, the output current of the power supply changes, and the LED intensity changes.

All in all, dimmable LED Driver plays an important role in our daily life. More details if you want to know more about Smarts Electronics’ Dimmable LED Driver Power Supply, just feel free to contact contact with Mr. Steven (skype: steven821228) or login http://www.smarts-electronics.com/. Smarts Electronics’ sales team and engineers are always be here to provide you timely and best help.
