How to Choose a Suitable Lighting control System May 22, 2019

Different people have different opinion about how to choose a lighting control system to make it suit the lamp. As per our experience, the key point is choose a good dimmable led driver.


Different type of dimming modes are used according to different environment and requirement. Hence it is quiet important to choose the dimmable led driver. Especially when it involve the control system or dimmer of triac dimming. The reason triac can control the light is that it changes the AC voltage waveform. Because of this, there are not vendors can promise that there triac dimmable led drivers can 100% suit with the dimmer or control system.


The following are the type of dimmable LED driver which Smarts Electronics can supply to you:


Triac Dimmable constant voltage and constant current LED Driver(6-200w output power type optional)


Input Voltage :100-135Vac/170-265Vac

ETL/CE/Rohs Approval

High efficiency, high reliability, save energy, protect environment, long life time

Built-in active PFC function,PF>0.90 FOR 86% of load or higher

Designing standard: UL1310 Class2 power unit

Follow the Global lighting safety regulations

Passed high, low temperature and waterproof testing

100% full load burn-in test

3 years warranty


0/1-10V/PWM/Resistor Dimmable Constant Voltage and Constant Current LED Driver(15w-230w output power type optional)


Input Voltage :100-135Vac/170-265Vac

UL/cUL/CE/Rohs Approval

PFC:>0.90

Efficiency: >88%

With short circuit and overload protection

Compact size, light weight

100% full load burn-in test

Installed with EMI filter, minimum wave

3 years warranty


DALI Dimmable Constant Voltage and Constant Current LED Driver(11w-200w output power type optional)

ETL/CE/Rohs Approval

PFC:>0.90

Efficiency: >88%

With short circuit and overload protection

Compact size, light weight

100% full load burn-in test

Installed with EMI filter, minimum wave

3 years warranty


If you still don’t know something about DALI dimmable LED driver, Quanzhou Smarts Electronics would like to help you. login http://www.smarts-electronics.com/ and http://www.smartselectronics.com/

Or contact with Mr. Steven(skype: steven821228

mail:steven@smartselectronic.com.cn) to know more about us.

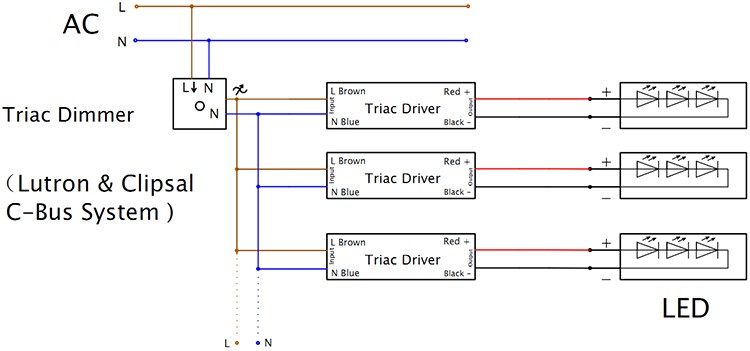

Triac dimmable led drivers connecting diagram


Triac dimmable led drivers connecting diagram

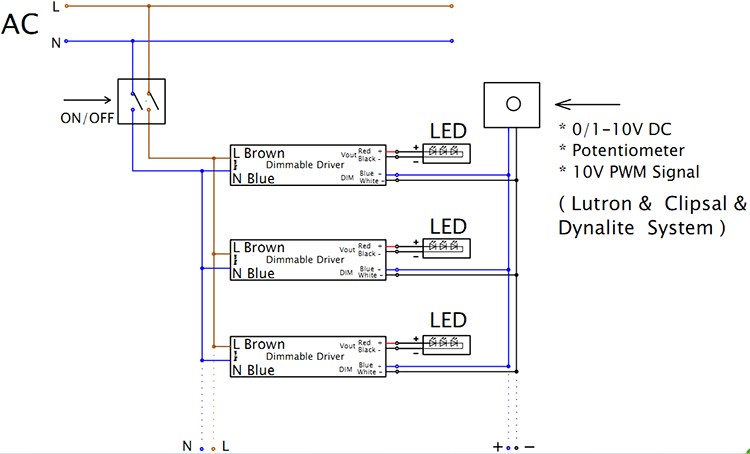

0-10V dimmable led drivers connecting diagram


0-10V dimmable led drivers connecting diagram

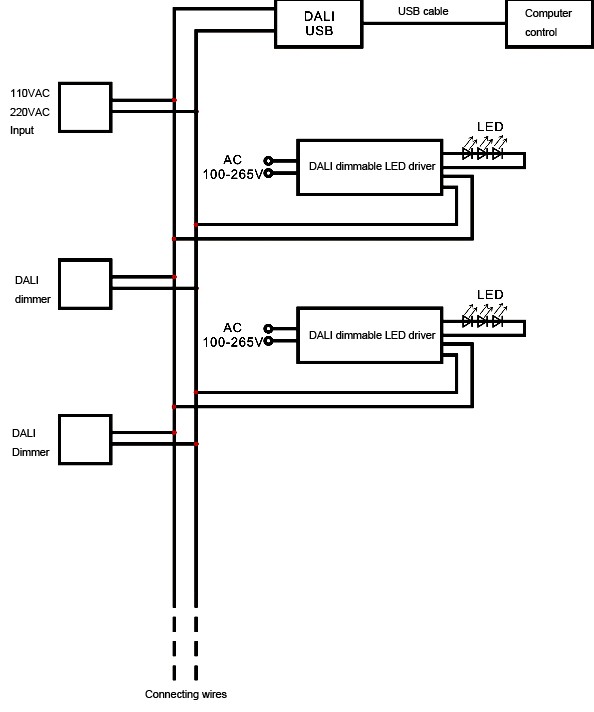

Dali dimmable led drivers connecting diagram


Dali dimmable led drivers connecting diagram
