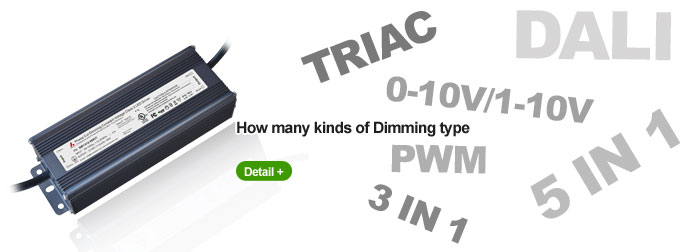

How many kinds of Dimming type? Dec 22, 2020

If you are not familiar with the dimming types that are compatible with LEDs: following details will definitely help you.

Mains / phase cut dimming




As the power of phase cut dimming led driver is reduced in some way therefore less power reach into LED light and becomes dims. This dimming led power supply uses standard L, N,G wires, easy to install and set up, There are two types for phase cut dimmable led driver:Trailing Edge: generally more accepted in LED products,Leading Edge: will do work more when dimming resistive loads, Halogen etc.

0/1-10Vdimming

It use a separate control signal to tell the0/1-10Vdimming led driver what level to dim to. 1V on the control feed-lights dim to minimum, while 10V to maximum.Actually any1-10V dimmer will work with any1-10Vdimmingdriver.

DSI

A Tridonic/Zumtobel protocol that uses a separate control wire to guide this led power supply what level to dim to. It’s a digital protocol so the dimming level is sent as a number in 1’sor 0’s,can run hundreds of devices with standard mains wiring plus two control wires.

DALI dimming system

Many manufacturers supply DALI dimming system, Helvar,Tridonic, Osram etc. Each system is individually addressable so they can operate from one DALI dimmable power supply but achieve dim by individually. DALI controls tend to be applied for large complex projects.

DMX

It is a digital protocol which can be individually addressed Some devices use2 or more DMX identity, such as a RGB luminaire uses 1 address for each colour, You should be carefully while considering wire, connectors,set shielding etc. It is often used in complex as well as large scale applications.

Welcome to have a kindly visit to our website www.smarts-electronics.com,www.swinpower.com for more details about UL/cUL dimmable led drivers.
