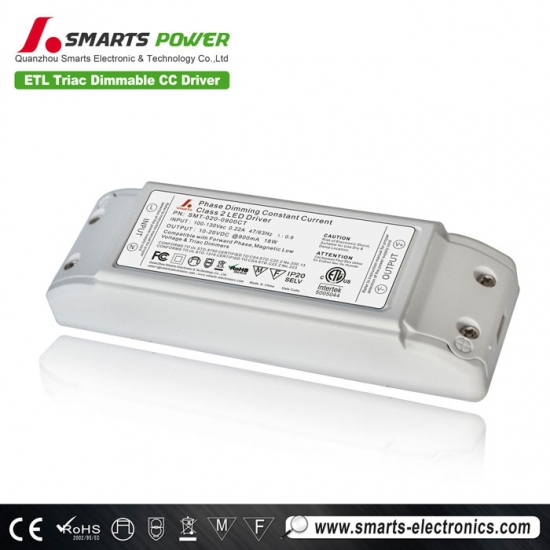

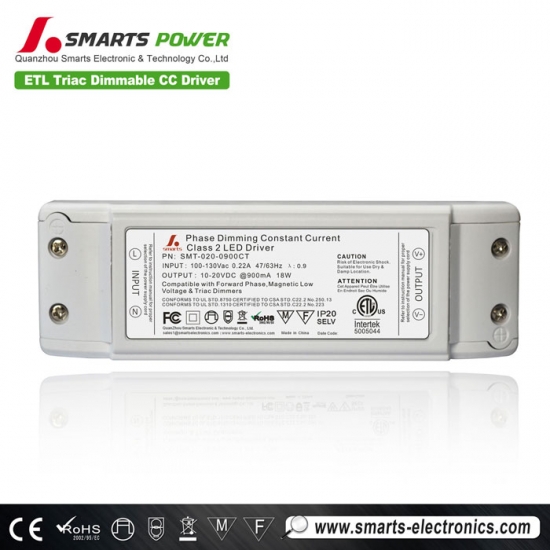

AC to DC 900mA 18w triac dimmable LED power supply
Model |
Input voltage(vAC) |
Working Frequency (Hz) |
Output voltage (vDC) |
Output Current (A) |
Output power (W) |
Working Temp. |
Protection grade |
SMT-060-0320CT |
90-135V/ 170-265V |
47~63Hz |
45-60vDC |
320mA |
19W |
-25~50°C |
IP40 |
SMT-030-0500CT |
90-135V/ 170-265V |
47~63Hz |
15-30vDC |
500mA |
15W |
-25~50°C |
IP40 |
SMT-050-0350CT |
90-135V/ 170-265V |
47~63Hz |
30-50vDC |
350mA |
17.5W |
-25~50°C |
IP40 |
SMT-040-0500CT |
90-135V/ 170-265V |
47~63Hz |
20-40vDC |
500mA |
20W |
-25~50°C |
IP40 |
SMT-025-0700CT |
90-135V/ 170-265V |
47~63Hz |
10-25vDC |
700mA |
17.5W |
-25~50°C |
IP40 |
SMT-020-0900CT |
90-135V/ 170-265V |
47~63Hz |
10-20vDC |
900mA |
18W |
-25~50°C |
IP40 |
Specifications
- RippleI & Noise (max.) : 150mVp-p
- Voltage Tolerance : ±5%
- Line Regulation : ±1%
- Load Regulation : ±2%
- Case material: Plastic housing
- Produt cord:connecting terminal(IP20) / 18AWG*20CM
- 2 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)
Features
- High efficiency,save energy ,protected environment.
- High stability and low ripple, increase light efficiency and decrease light attenuation.
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant current
- Protections:Short circuit/Overload/Over temperature
- Cooling by free air convection
- 100% full load burn-in test.
- Suitable for LED lighting
- Brand electrotronic components.
- ROHS material.
Environment
- Working temp: -30~+50℃ (Refer to output load derating curve)
- Working humidity: 20~99% RH non-condensing(Waterproof)
- Storage temp. humidity: -40~+80℃,10~99%RH
Safety
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
- Indoor LED illuminating lights
- LED Neon, LED urban Decoration
- LED Lighting Advertising,LED Display
- Safety Protection Apparatus,
- Telecommunications, Networks
- Vehicle Lights, Controller Panels
