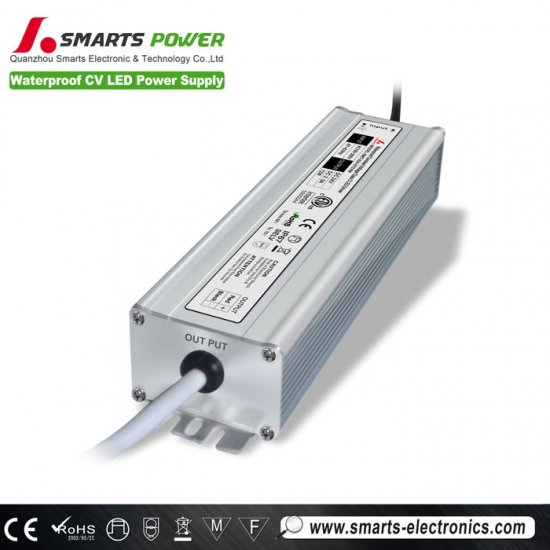

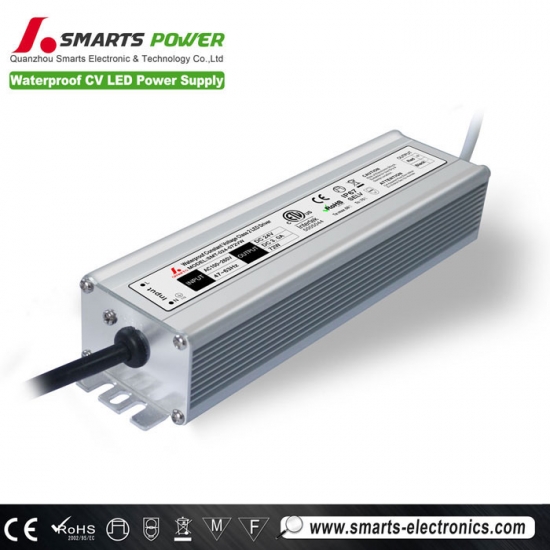

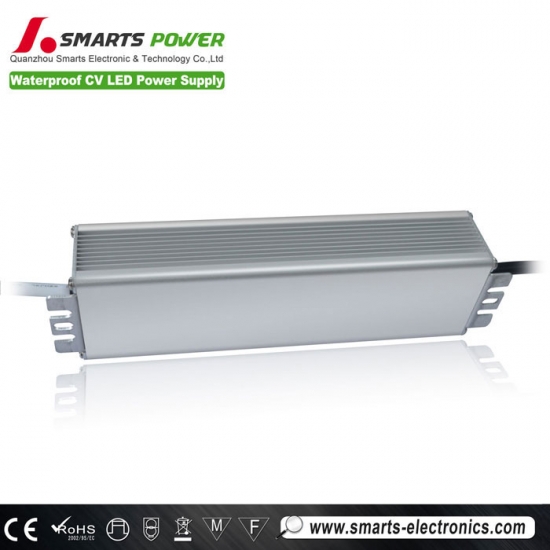

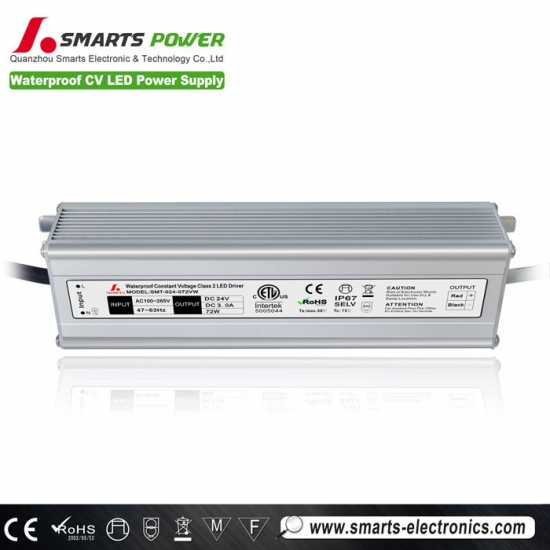

Product name: AC to DC 24V 72W Constant voltage LED power supply
| SPECIFICAION | |||||
| MODEL | SMT-012-072VW | SMT-024-072VW | |||
| OUTPUT | DC VOLTAGE | 12V | 24V | ||
| RATED CURRENT | 6.0A | 3.0A | |||
| CURRENT RANGE | 0~6.0A | 0~3.0A | |||
| RATED POWER | 72W | 72W | |||
| RIPPLE&NOISE(max) | 1.2V | 1.2V | |||
| voltage TOLERANCE | 12V±5% | 24V±5% | |||
| SETUP RISE TIME | 80ms/110,220VAC | 80ms/110,220VAC | |||
| HOLD UP TIME(Typ.) | 60ms/110,220VAC | 60ms/110,220VAC | |||
| INPUT | VOLTAGE RANGE | 90~135/170~265Vac | 90~135/170~265Vac | ||
| FREQUENCY RANGE | 50~60Hz | 50~60Hz | |||
| POWER FACTOR(Typ.) | |||||
| EFFICIENCY(Typ.) | ﹥84% | ﹥84% | |||
| AC CURRENT(Typ.) | 0.5A/110V,220VAC | 0.5A/110V,220VAC | |||
| INRUSH CURRENT (Typ.) | COLD START 30A/110,220VAC | ||||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | |||
| Overload | overload protected@145-160% above peak rating | ||||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||||
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | |||
| WORKING HUMIDITY | 20~99% RH non-condensing(Waterproof) | ||||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||||
| SAFETY&EMC | SAFETY STANDARDS | UL, CE Mark(LVD, EMC), IP67 | |||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC IP-GND:1.5KVAC | ||||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | ||||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | |||||
| NOTE | 1.All parameters NOT specially mentoned are measured at 110VAC, 220VAC input,rated load and 25℃ of ambient temperature. | ||||
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor. |
|||||
| 3.Tolerance:includes set up tolerance,line regulation and load regulation. | |||||

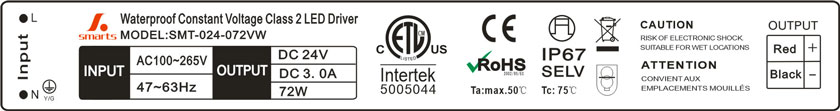

| Label |
 |
||||
 |
 |
 |
 |
 |
|
Specifications
1. Modle: SMT-024-072VW
2. Input: 100~265vAC / 47-63HZ
3. Output : 24V 3.00Amp 72Watt
4. Case material: Aluminum
5. Waterproof rate: IP67
6. Unit weight: 550g
7. Product size: 190*48*34
8. Box size: 299*224*176mm
9. Pack qty: 30pcs/ctn
10.Pack weight: 17kg/ctn
11.Produt cord: 18AWG*20CM
13.Two years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)
Features
1. High efficiency,save energy ,protected environment.
2. High stability and low ripple, increase light efficiency and decrease light attenuation.
3. Meet to safety standard and EMC
4. Assure LED stability long lift and light efficiency by constant voltage.
5. Integrity protection,over loading, over voltage ,over current.
6. Protections:Short circuit/Overload/Over temperature
7. Cooling by free air convection
8. 100% full load burn-in test.
9. Suitable for LED lighting
Environment
1. Working temp: -30~+50℃ (Refer to output load derating curve)
2. Working humidity: 20~99% RH non-condensing(Waterproof)
3. Storage temp. humidity: -40~+80℃,10~99%RH
Safety
* Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
* Withstand Voltage : I/P-O/P: 3000KVAC
* Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Applications
Our products are widely used in various industries, such as
* indoor LED illuminating lights
* LED Neon
* LED urban Decoration
* LED Lighting Advertising,
* LED Display
* Safety Protection Apparatus
* Telecommunications
* Networks
* Vehicle Lights Controller Panels，etc.
