Product name: AC to DC 12V 40W Constant voltage LED power supply
|
Specifications
1. Modle: SMT-024-040VW
2. Input: 100~265vAC / 47-63HZ
3. Output : 24V 1.67Amp 40Watt
4. Case material: Aluminum
5. Waterproof rate: IP67
6. Unit weight: 205g
7. Product size: 217*29*21
8. Box size: 299*224*176mm
9. Pack qty: 50pcs/ctn
10.Pack weight: 11kg/ctn
11.Produt cord: 18AWG*20CM
13.Two years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)
|
SPECIFICAION
MODEL
SMT-012-040VW
SMT-024-040VW
OUTPUT
DC VOLTAGE
12V
24V
RATED CURRENT
3.33A
1.67A
CURRENT RANGE
0~3.33A
0~1.67A
RATED POWER
40W
42W
RIPPLE&NOISE(max)
1.1V
1.12V
voltage TOLERANCE
12V±5%
24V±5%
SETUP RISE TIME
80ms/110VAC
80ms/110VAC
HOLD UP TIME(Typ.)
60ms/110VAC
60ms/110VAC
INPUT
VOLTAGE RANGE
100~265Vac
100~265Vac
FREQUENCY RANGE
50~60Hz
50~60Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.)
﹥83%
﹥82%
AC CURRENT(Typ.)
0.3A/110V, 0.5A/220V
0.33A/110V,0.45A/220V
INRUSH CURRENT (Typ.)
COLD START 30A/110~220VAC
PROTECTION
Short circuit
Protection type:recovers automatically after condition is removed
Overload
overload protected@145-160% above peak rating
Over temperature
Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT
WORKING TEMP.
-30~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY
20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY
-40~+80℃,10~99%RH
SAFETY&EMC
SAFETY STANDARDS
UL, CE Mark(LVD), IP67
WITHSTAND VOLTAGE
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
EMC Test Standards
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE
1.All parameters NOT specially mentoned are measured at 110VAC, 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
3.Tolerance:includes set up tolerance,line regulation and load regulation.

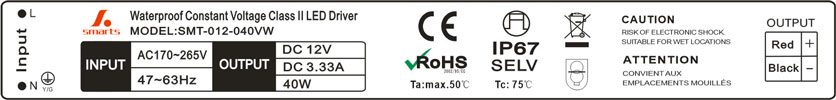

Label
 |
 |
 |
 |
Features
Our Factory
