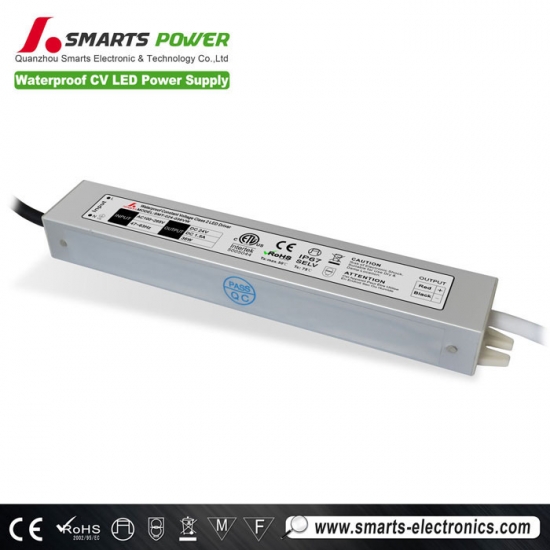

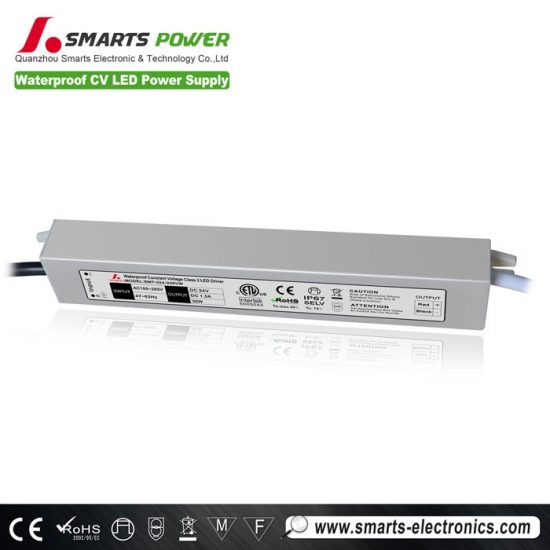

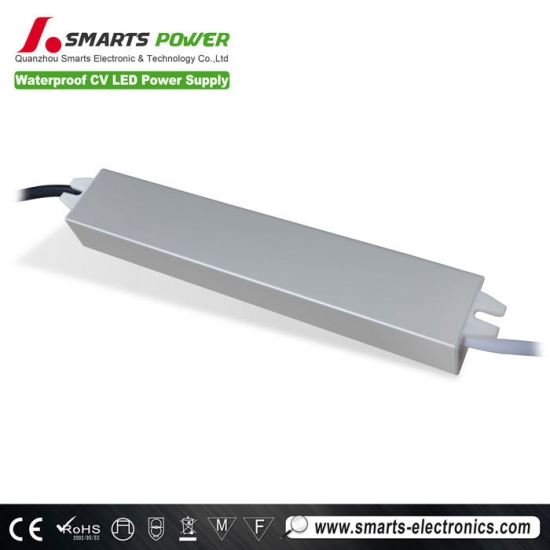

AC to DC 12V 36W Constant voltage LED driver

AC to DC 12V 36W Constant voltage LED driver

item no.:
SMT-012-036VW
brand:
SMARTS
Input Voltage:
100-265V
Output Voltage:
12VDC
Output Current:
3A
Working Mode:
Constant Voltage
Certification:
ETL CE ROHS
Warranty:
2 years

inquiry now

product details

Product name: AC to DC 12V 36W Constant voltage LED power supply

SPECIFICAION
MODEL		SMT-012-036WW	SMT-024-036VW	SMT-036-036VW
OUTPUT	DC VOLTAGE	12V	24V	36V
	RATED CURRENT	3.0Amp	1.5Amp	1.0Amp
	CURRENT RANGE	0~3.0A	0~1.5A	0~1.0A
	RATED POWER	36W	36W	36W
	RIPPLE&NOISE(max)	150mV	150mV	150mV
	CURRENT TOLERANCE	±0.5V	±0.5V	±0.5V
	SETUP RISE TIME	80ms/110,220VAC	81ms/110,220VAC	82ms/110,220VAC
	HOLD UP TIME(Typ.)	60ms/110-220VAC	60ms/110-220VAC	60ms/110-220VAC
INPUT	VOLTAGE RANGE	100~265VAC
	FREQUENCY RANGE	50~60Hz
	POWER FACTOR(Typ.)
	EFFICIENCY(Typ.)	>84%	>84%	>83%
	AC CURRENT(Typ.)	3.5A/110,220VAC	2.0A/110,220VAC	1.5A/110,220VAC
	INRUSH CURRENT (Typ.)	COLD START 50A/110~220VAC
PROTECTION	Short circuit	Protection type:recovers automatically after condition is removed
	Overload	overload protected@145-160% above peak rating
	Over temperature	Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT	WORKING TEMP.	-30~+50℃ (Refer to output load derating curve)
	WORKING HUMIDITY	20~99% RH non-condensing(Waterproof)
	STORAGE TEMP.,HUMIDITY	-40~+80℃,10~99%RH
SAFETY&EMC	SAFETY STANDARDS	ETL/ROHS/CE Mark(EMC,LVD),IP67
	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC IP-GND:1.5KVAC
	EMC Test Standards	EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
	EMC Test Standards	EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE	1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
	2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel

	3.Tolerance:includes set up tolerance,line regulation and load regulation.

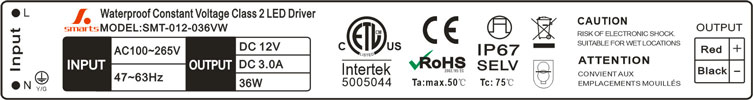

Label

Specifications

1. Modle: SMT-012-036VW

2. Input: 100~265vAC / 47-63HZ

3. Output : 12V 3.00Amp 36Watt

4. Case material: Plastic/Aluminum

5. Waterproof rate: IP20/IP67

6. Unit weight: 118g

7. Product size: 140*45*28mm(IP20)/217*29*21(IP67)

8. Box size: 299*224*176mm

9. Pack qty: 50pcs/ctn

10.Pack weight: 12.4kg/ctn

11.Produt cord: connecting terminal(IP20) / 18AWG*20CM

13.Two years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)

Features

1. High efficiency,save energy ,protected environment.

2. High stability and low ripple, increase light efficiency and decrease light attenuation.

3. Meet to safety standard and EMC

4. Assure LED stability long lift and light efficiency by constant voltage.

5. Integrity protection,over loading, over voltage ,over current.

6. Protections:Short circuit/Overload/Over temperature

7. Cooling by free air convection

8. 100% full load burn-in test.

9. Suitable for LED lighting

Applications

Our products are widely used in various industries, such as

* indoor LED illuminating lights

* LED Neon

* LED urban Decoration

* LED Lighting Advertising,

* LED Display

* Safety Protection Apparatus

* Telecommunications

* Networks

* Vehicle Lights Controller Panels，etc.
