Non-dimmable LED Driver

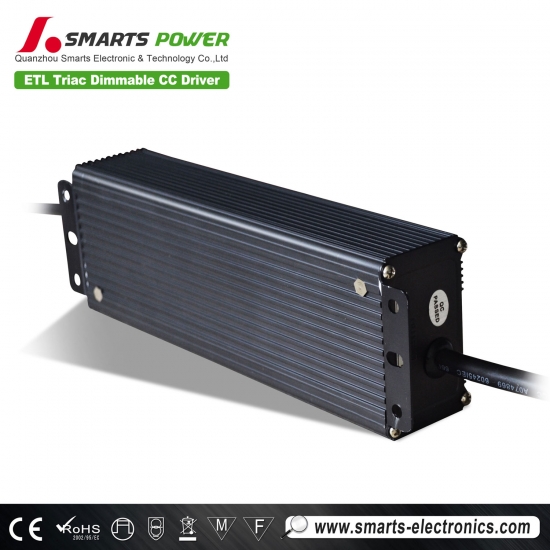

80w flood light triac power supply transformer

Triac dimmable power supply: 80w led power supply: Triac dimmable constant current led driver
  • item no.:

    SMT-115-0700CT
  • lead time:

    about 7 working days
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T Paypal Western Union
  • market price:

    $20
inquiry now
product details

80w flood light triac power supply transformer

  Product parameters


Model

Input voltage(vAC)

Working

Frequency

 (Hz)

Output voltage

(vDC)

Output

Current

power

(Watt)

Working.

 Temp

Protection

grade

SMT-115-0700CT

90-135V/170-265v

47~63Hz

80-115V

700mA

80W

-40~50°C

IP67

SMT-090-0900CT

90-135V/170-265v

47~63Hz

70-90V

900mA

80W

-40~50°C

IP67

SMT-080-1050CT

90-135V/170-265v

47~63Hz

55-80V

1050mA

80W

-40~50°C

IP67

SMT-067-1200CT

90-135V/170-265v

47~63Hz

40-67V

1200mA

80W

-40~50°C

IP67

SMT-054-1400CT 90-135V/170-265v 47~63Hz 40-58V 1400mA 80W -40~50°C IP67
SMT-040-2000CT 90-135V/170-265v 47~63Hz 25-40V 2000mA 80W -40~50°C IP67

SMT-034-2400CT

90-135V/170-265v
47~63Hz
15-34V
2400mA
80W
-40~50°C
IP67
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top



  Features

  • Input range :90-135VAC / 170-265VAC
  • Built-in PFC function
  • Efficiency > 84%  / PF>0.9
  • Protections:Short circuit/over Voltage
  • Fully isolated  Aluminum housing
  • Easy installation
  • Cooling by free air convection
  • Work with leading edge and trailing edge TRIAC dimmers
  • Strong compatibility, flicker-free dimming
  • Suitable for LED lighting and moving sign applications
  • Compliance to worldwide safety regulations for lighting
  • 3 years warranty
  • ·Lifespan:(MTBF)50,000 hours

  Protection

  • Short Circuit:  Hiccup mode, recovers automatically after fault condition
  • Over voltage: <270VAC 0r =270VAC

  Environment parameter

  • Working temperature: -40~+60℃
  • Working humidity:20~90%RH,non-condensing
  • Storage TEM.,Humidity:  -40~+80℃,10~95%RH
  • TEMP.coefficient:  ±0.03%/℃(0~50℃)
  • Vibration:  10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z  axes

  Safety &EMC

  • Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
  • Withstand Voltage : I/P-O/P: 3000KVAC
  • Isolation Resistance : I/P-O/P:100M Ohms/500VDC
  • EMC EMISSION:   Compliance toEN55015,EN61000-3-2 (> or=50%load)

  Notes

  • All parameters NOT specially mentioned are measured at 110V/ 230VAC input , rated load and25℃of ambient temperature
  • Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted  pairwire terminated with a 0.1uf &47uf parallel capacitor.


All of our drivers are got CE ROHS listed .OEM Welcome.

Our led drivers are widely used for:
  • Indoor LED illuminating lights
  • LED Neon, LED urban Decoration
  • LED Lighting Advertising,LED Display
  • Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels


  What Service we can supply??

  1. All inquiries will be replied within 24 hours

  2.  Professional manufacturer,welcom to visit our website

  3. OEM/ODM avaliable:
    A.Print logo on our product;
    B. Customized specification;
  4. After Sales-Service:
    A. All products will have 100% burn-in test and strictly quality test before shipping;
    B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production;
  5. High efficiency,long life span,reasonable&competetative price,fast lead time;
  6. We have our engineer team, if you have any question about your LED applications, let us know freely.

  Frequently Asked Questions


Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)

Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).

Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;

Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.

Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.



Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.

Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.

Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)

Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
