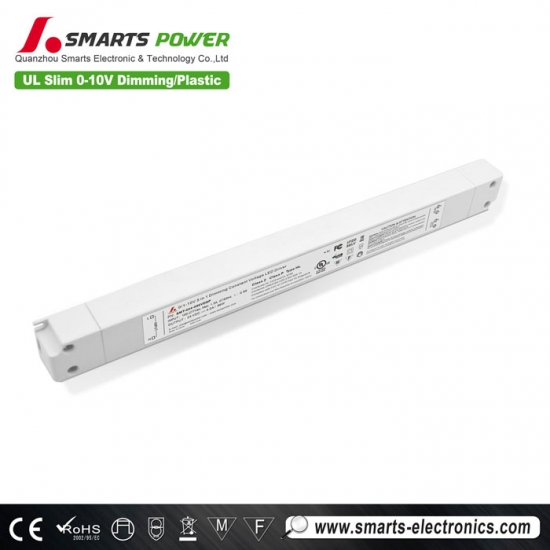

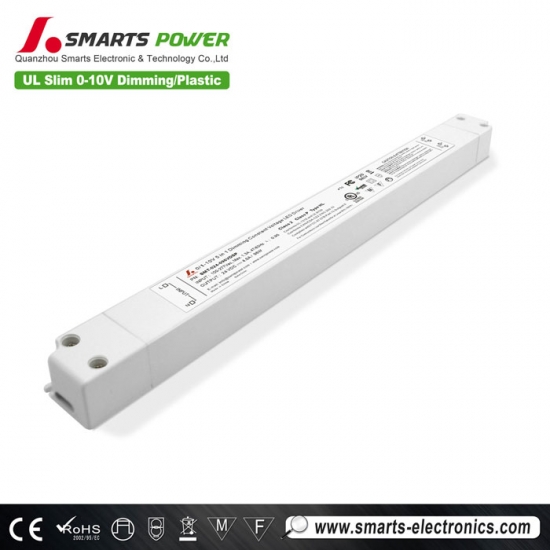

24v 96w 60w dimmable led power supply transformer for led lights
24v dimmable led power supply of 1-10V, When the resistance dimmer is at 1V, the output current is also changed by 10%, at 10V (Maximum), the output current will reach 100% of the power output, the brightness of light will be 100%.
Feature
·Output constant voltage
·Input voltage range 100-277VAC
·UL, cUL listed, Class 2, Class P standard approval
·Built-in PFC function / Efficiency > 83% / PF> 0.99
·Dimming range: 0~100%
·Protections:short circuit/over voltage/over heat
·IP20 plastic case design for indoor dry, damp environment installations
·Cooling by free air convection
·0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications Class 2, Class P,Type HL standard
·Compliance to worldwide safety regulations for lighting 30W,36W,60W,96W,100W available
Specification
model
SMT-012-100VDSP
SMT-024-096VDSP
Output
DC Voltage
12VDC
24VDC
Voltage Accuracy
±5%
±5%
Rated current
8.33Amp
4Amp
Rated power
100W
96W (class 2)
Voltage Regulation
±0.5%
Load Regulation
±1%
±1%
Input
Voltage Range
100-277 VAC
Frequency Range
47～63HZ
Power Factor ( Typ.）
PF≧0.99/110V ; PF≧0.96/277V
Full Load Efficiency（Typ.）
85%@120VAC 87%@277VAC
85%@120VAC 88%@277VAC
AC Current（Typ.）
1.10A/100VAC / 0.43A/277VAC
Inrush Current（Typ.）
11A,50%,1.04ms@120V ; 27A,50%,960us@277V
THD(Typ. ) @ full load
<10%@120VAC <15%@277VAC
Leakage current
<0.50mA
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition
is removed.
Over Loading
≤120% shut down o/p voltage, re-power on to recover
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750 +UL1310,CAN/CSA-C22.2 No.250.13
Withstand voltage
I/P-O/P:1.88KVac
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC 47 CFR Part 15 ,Subpart B
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,,11, ,
Alight industry level
Others
Weight
0.4Kg
Size
330*32*23mm (L*W*H)
packing
50PCS/CTN Carton size:350*330*145mm
Notes
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,
Rated load and 25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
 |
 |
 |
 |
 |
|
Mechanical Specification
Derating Curve
Connecting Diagram
