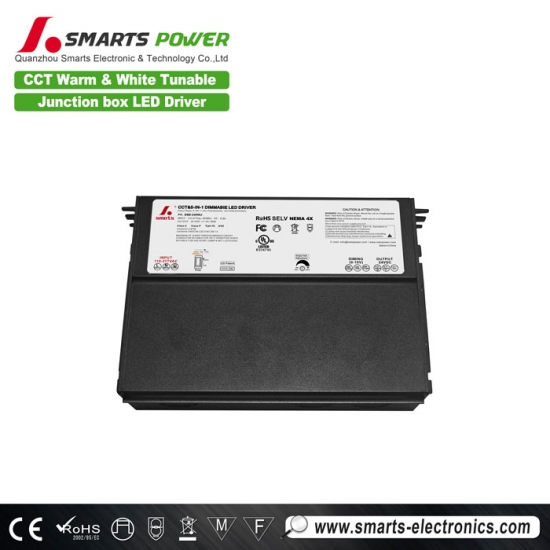

24/48volt CCT&triac/0 10v dimmable ul listed constant voltage 96W led strip driver power supply
This CCT (Warm Dim.) & Tunable White type 96W led driver is PWM output mode, has built-in active PFC function, has short circuit/over temperature/overload protection function, and is compatible with popular front and rear edge silicon controlled dimmers and systems on the market, 0- 10V dimmers and systems such as Lutron dimmers
Specification
| Model Number | DSD-24096J | DSD-48096J |
| Output Type | ||
| Reted Power | 96W | |
| Reted Voltage | 24V | 48V |
| Reted Current | 4A | 2A |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| Input Type | ||
| Voltage Range | 110-277V | |
| Frequency Range | 47-63HZ | |
| Efficiency(Typ.) | 89%@120VAC 90%@277VAC | |
| Total Harmonic Distortion | THD< 15%(@100% load) | |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | |
| AC Current(Typ.) | 1.02A | |
| Inrush Current(Typ.) | 25A | |
| Leakage Current | <0.5mA | |
| PROTECTION | ||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | |
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over | |
| load is removed | ||
| ENVIRONMENT | ||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
| Withstand voltage | I/P-O/P:1.88KVAC | |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
| EMC Emission | Compliance to FCC part 15 Subpart B | |
| OTHERS | ||
| Dimension | 188x120.5x42mm (L*W*H) | |
| Packing | - | |
 |
 |
 |
 |

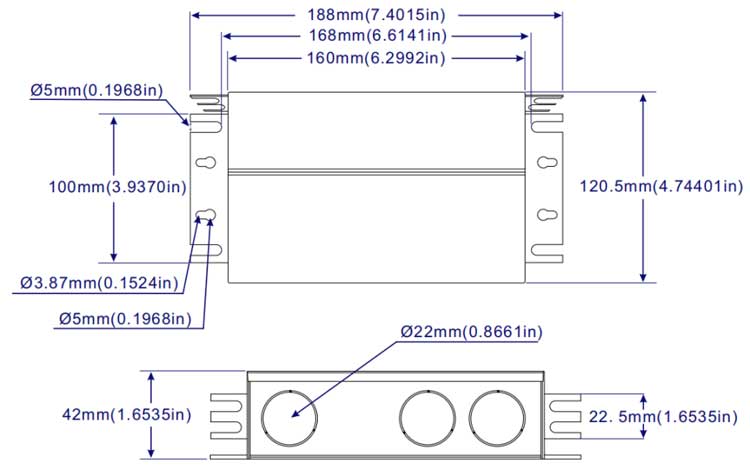

Mechanical Specification
Wire Specification
| DSD-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 96W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG | Dim- | Orange | 18AWG | |
Function Introduction
Mounting
1.This driver must be installed in a well-ventilated area free from explosive gases and
vapors. Air circulation is essential for heat dissipation.
2.Recommended spacing between LED drivers should be a minimum of 4” (10cm).
3.Do not mount driver close to or above objects that can radiate. Vertical mounting
is highly recommended.
4.Select an appropriate location that is able to support the weight of the product.
5.Use the mounting tabs on the left and right side of the driver to mount the product.
Connecting Diagram
Using TRIAC/Phase cut dimming
1.Through a phase-dimmer or lighting system, control the input AC phase line (L) and adjust the output PWM
2.Triac dim mode: Forward phase & reverse phase, MLV, ELV dim
3.Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Dimming operation
Works with Two channel CCT warm-dim LED strip/tape (3 wires)
Related Products

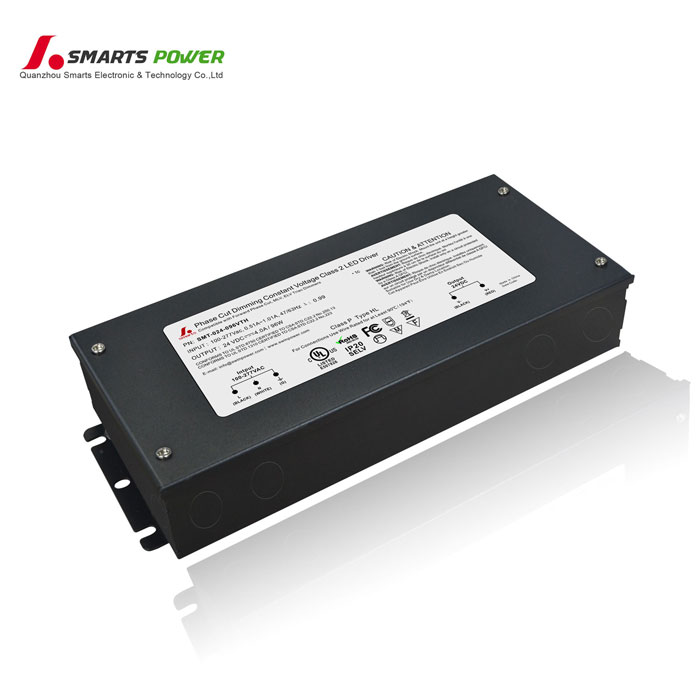

triac dimmable constant voltage led driver 96W, input voltage between 100-277vac, metal shell design, led driver and junction box integrated, easy and quick installation, with 7-year warranty
